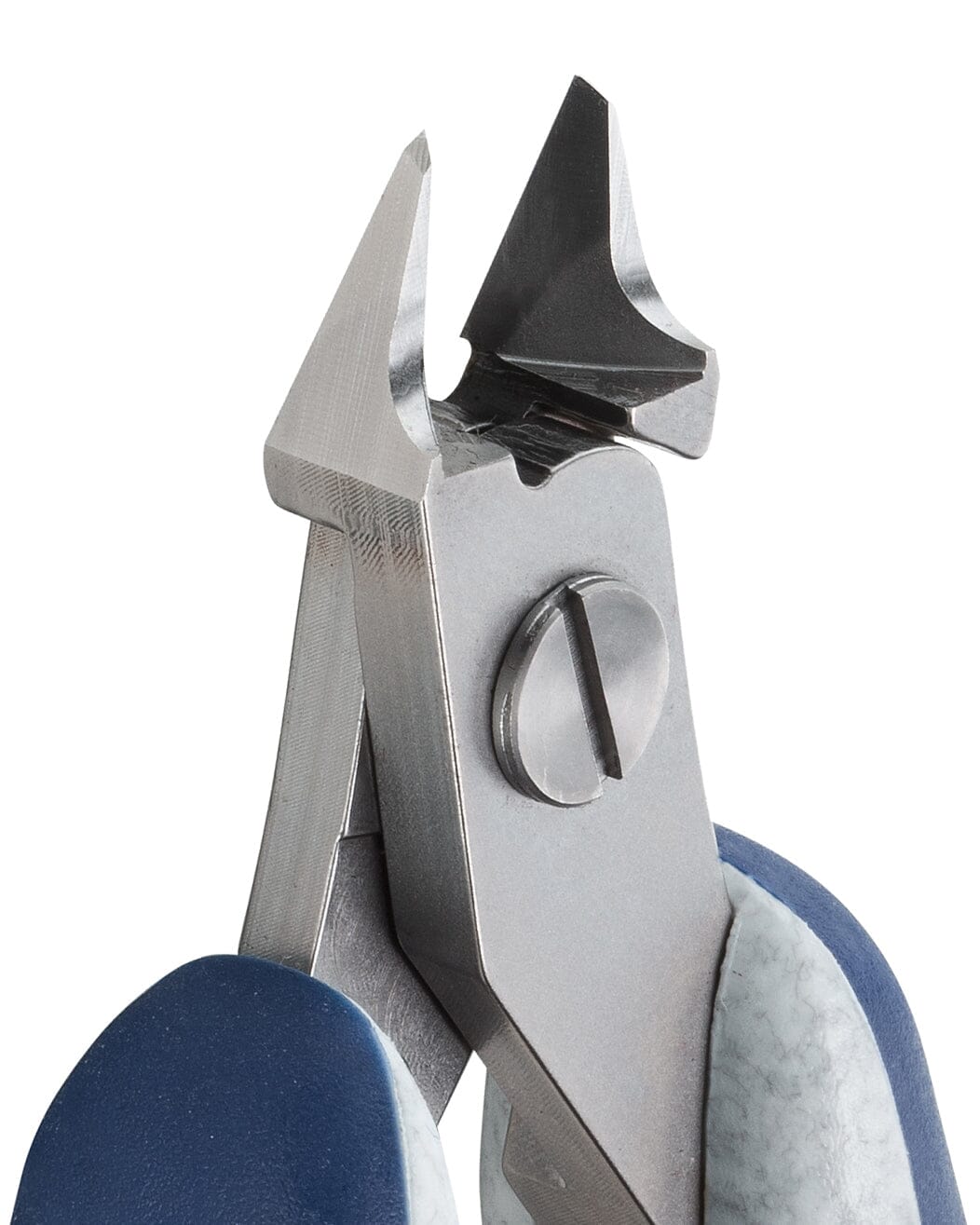

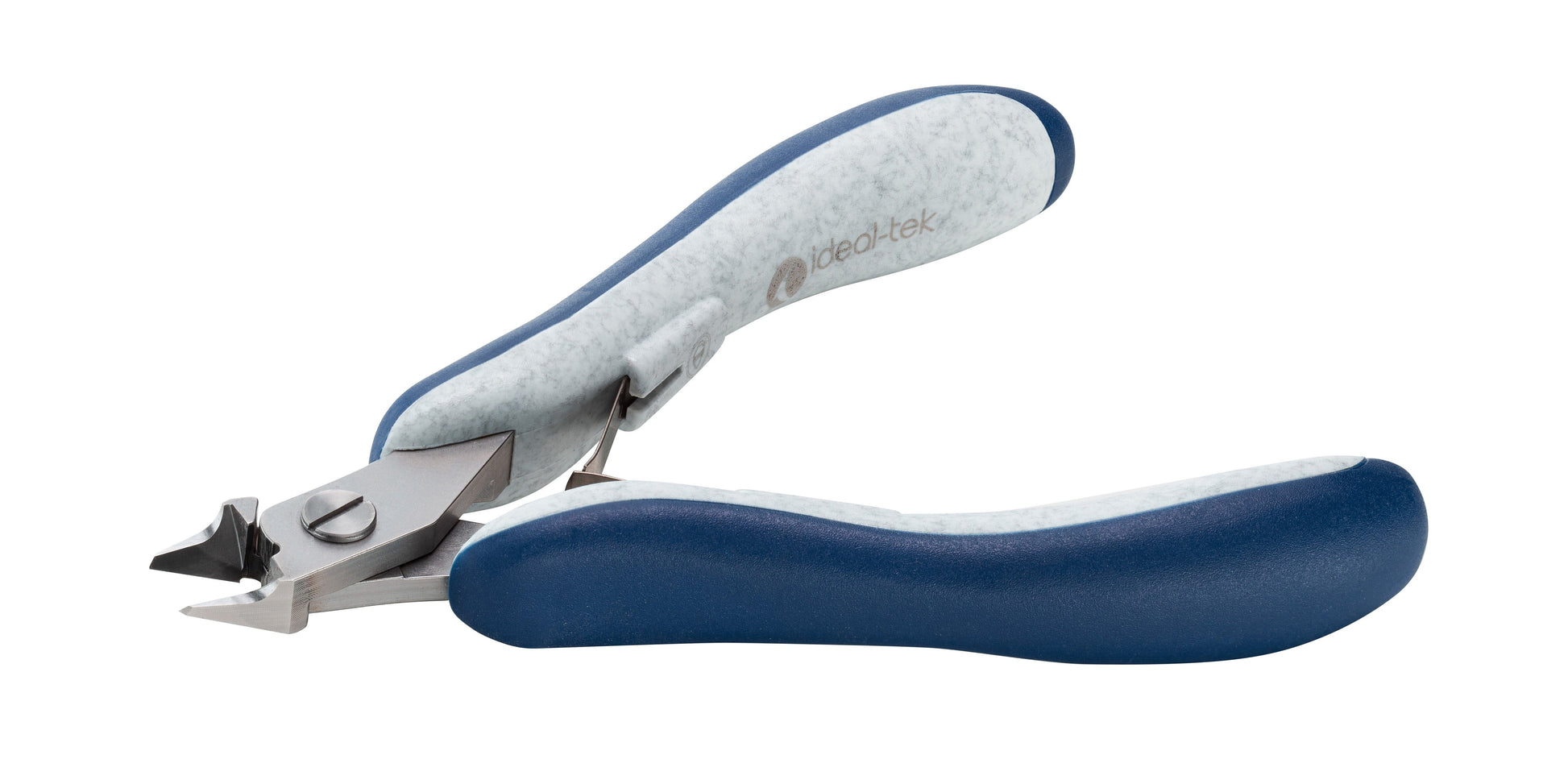

Ideal-tek ES5542.CR.BG High Precision Ergo-tek Slim Cutters - Small Tapered & Relieved head, Full-Flush - 4.72", ESD Safe

ideal-tek ES5542.CR.BG High Precision Ergo-tek Slim Cutters are designed for precision cutting applications in electronics manufacturing, assembly, and repair. The small tapered and relieved head provides excellent access to confined spaces, while the full-flush cutting edges deliver clean, precise cuts with minimal protrusion. Featuring ergonomic Ergo-tek handles and ESD-safe construction, these cutters offer exceptional comfort, control, and protection when working with sensitive electronic components.

Specifications

• ESD Safe: Yes
• Head Shape: Tapered & Relieved
• Size/Type: Small
• Cutting Edges: Full-Flush

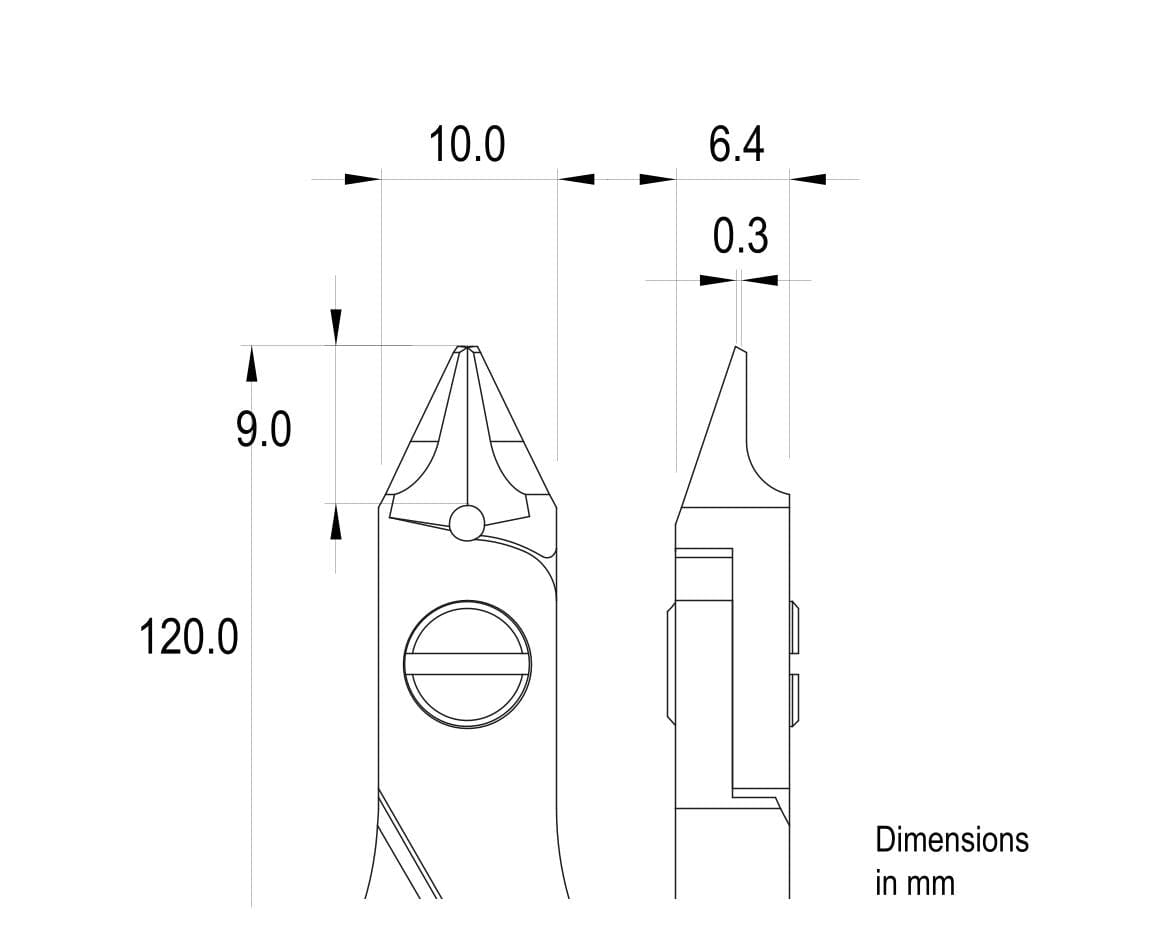

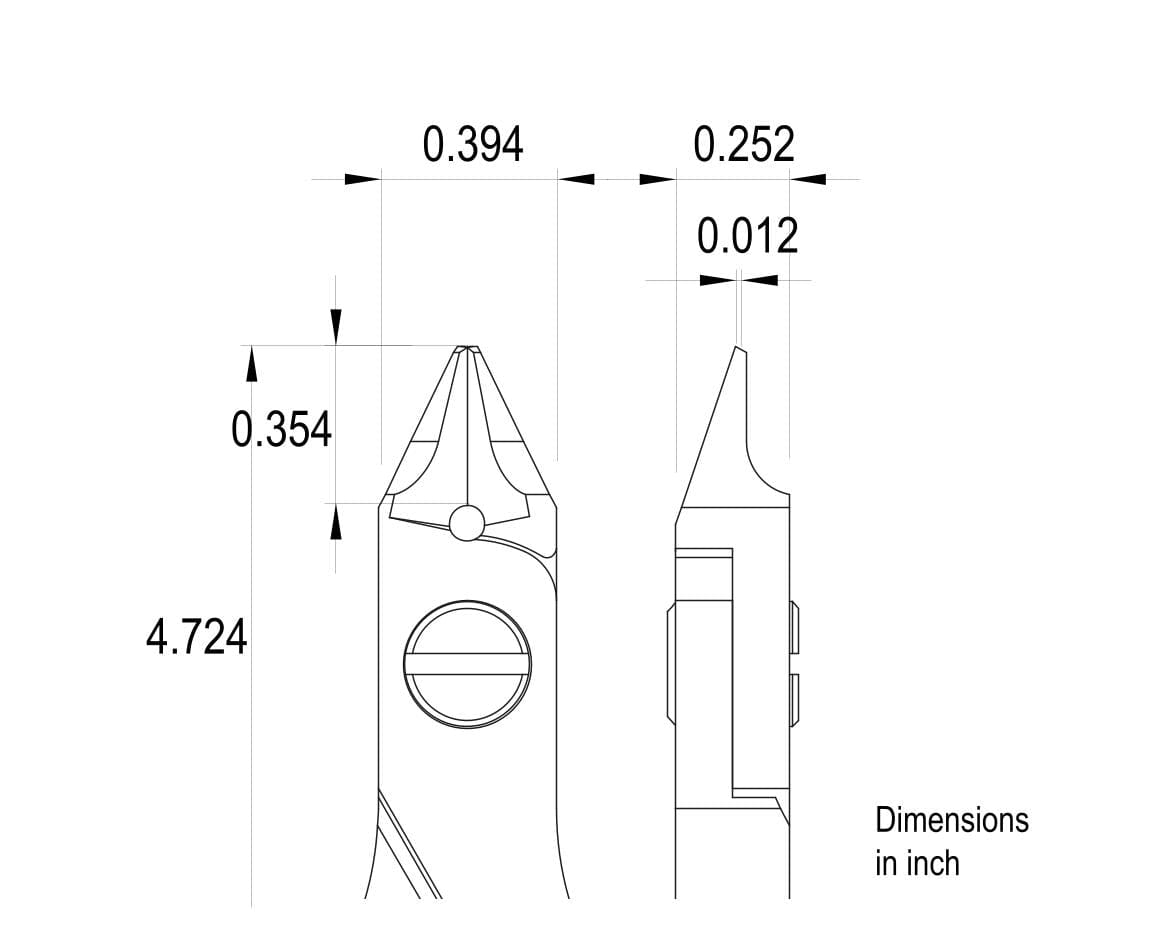

• Overall Length: 120.00 mm (4.724")
• Product Width: 60.00 mm (2.362")
• Product Height: 18.00 mm (0.709")
• Head Width: 10.00 mm (0.394")
• Head/Jaw Length: 9.00 mm (0.354")
• Head Thickness: 6.40 mm (0.252")
• Tip Thickness: 0.30 mm (0.012")
• Cutting Capacity - Soft Wire: 0.10–0.80 mm (38–20 AWG)
• Cutting Capacity - Medium Wire: 0.10–0.40 mm (38–26 AWG)
• Net Weight: 81.0 g (0.179 lb)
• RoHS Compliant: Yes
