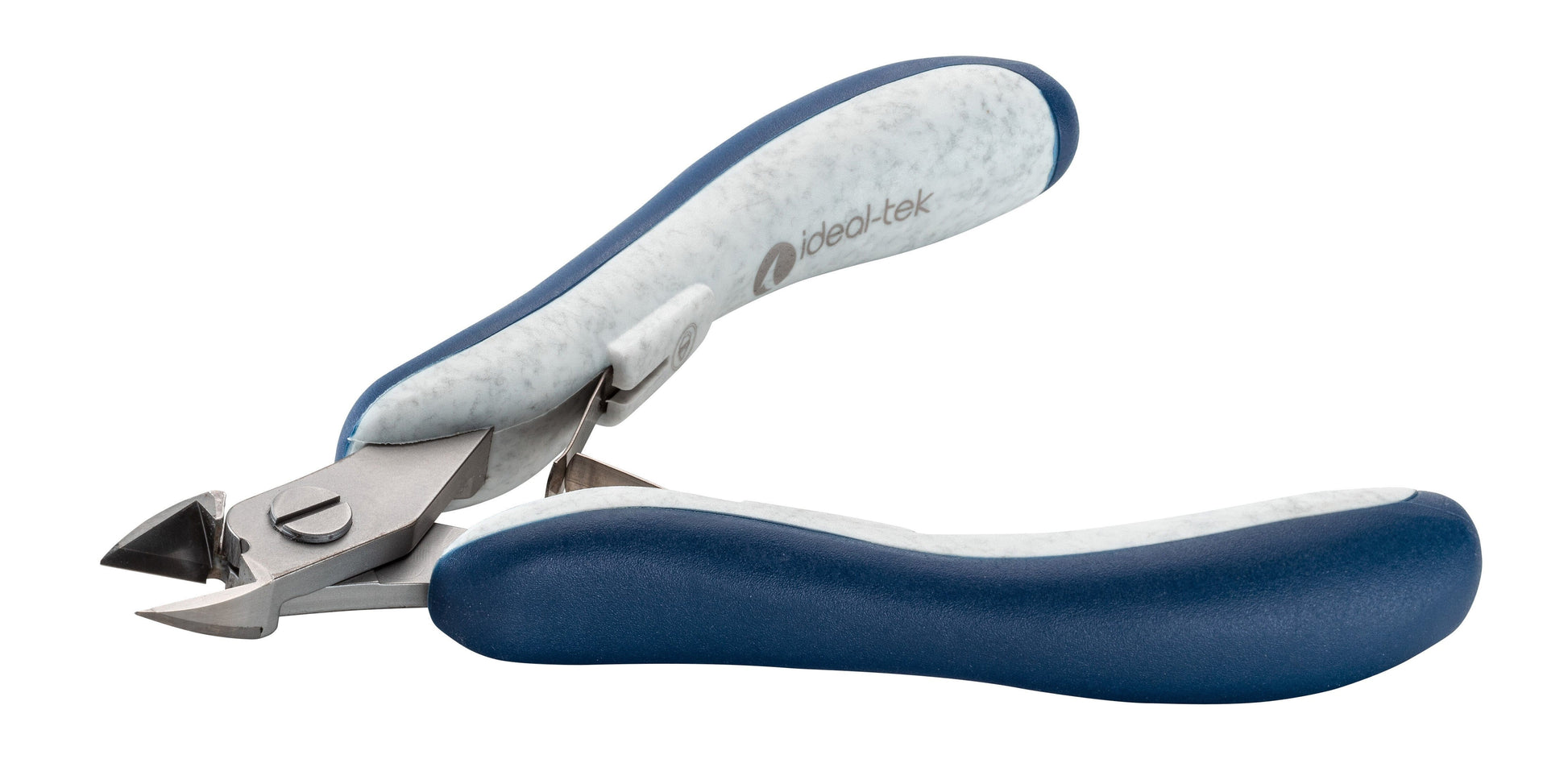

Ideal-tek ES141TX Tungsten Carbide Cutters – ESD Ergo-tek – Small Oval Head, Flush Cutting Edge – 120mm (4.7") – Made in Italy

Ideal-tek ES141TX Tungsten Carbide Cutters – ESD Ergo-tek – Small Oval Head, Flush Cutting Edge – 120mm (4.7") – Made in Italy

High-Reliability Hard-Wire Cutting for ESD-Sensitive Environments

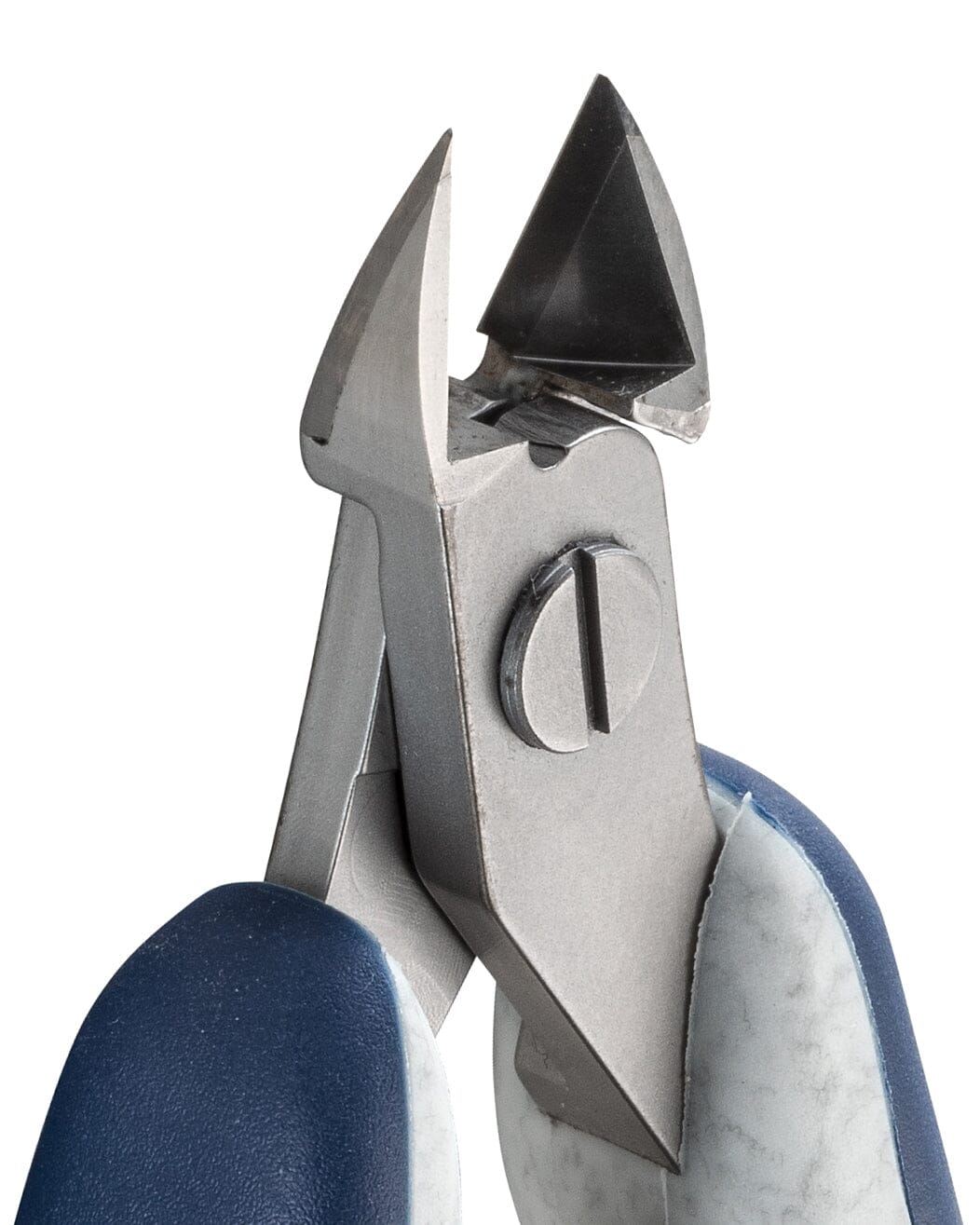

Ideal-tek ES141TX Tungsten Carbide Cutters are part of the small Tungsten Carbide cutter family and are Made in Italy. The oval geometry delivers excellent resistance and the small head accesses tight areas, while the flush cutting edge and 82HRC tungsten carbide insert blades produce clean cuts on the hardest wires. The ESD Ergo-tek slim handle provides excellent grip in environments sensitive to electrostatic discharge.

Key Features

• Tungsten carbide cutting edges designed for hard materials
• Anti-shock system protects the carbide inserts during cutting operations
• Suitable for precision cutting of stents, catheters and guide wires
• Designed for repetitive cutting with extended cutting edge lifetime
• Maintains cutting accuracy in demanding medical device and precision manufacturing applications

Specifications

• Body Material: Chrome Steel
• Insert Blade Material: Tungsten Carbide
• Blade Hardness: 82 HRC
• Head Size: Small
• Head Shape: Oval
• Cutting Edge: Flush
• Cutting Capacity (hard): 0.03–0.3 mm (48–28 AWG)
• Tip Thickness: 0.016 in
• Handle: ESD Ergo-tek Slim (TPE / Polypropylene)
• ESD Safe: Yes
• Finish: Sandblasted

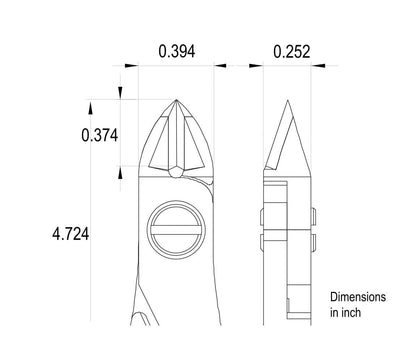

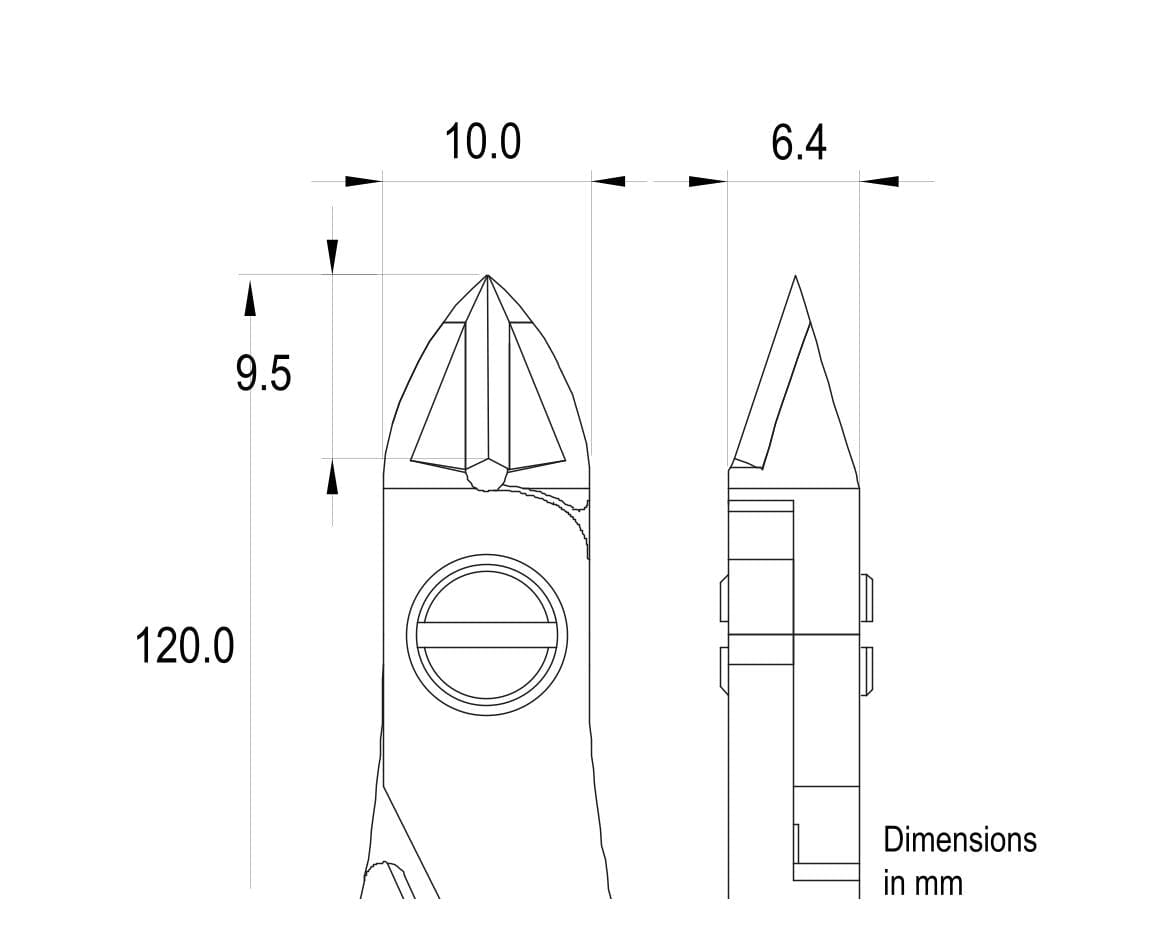

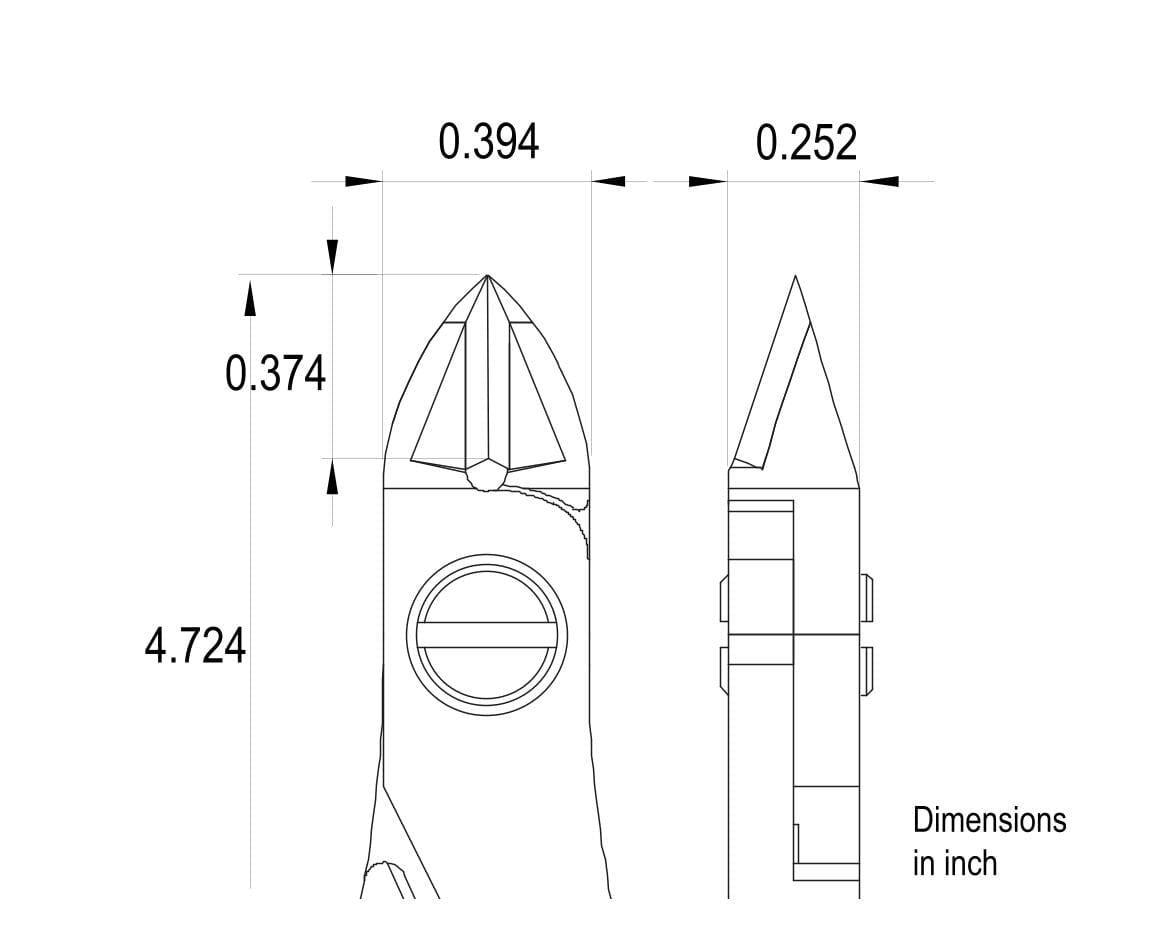

• Overall Length: 120mm (4.7")
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES141TX.CR.BGO.ITU
• EAN: 7640144719401

Applications

The ES141TX is purpose-built for medical device manufacturing and precision electronics, including cutting stents, catheters, guide wires and hard alloy wire where edge longevity and ESD safety are critical.
