Hakko

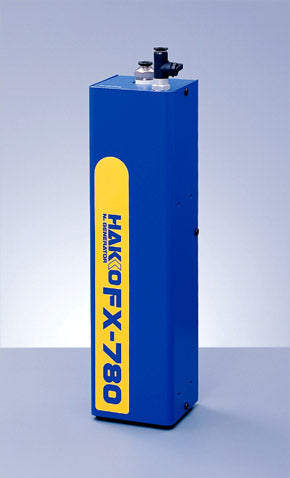

Hakko FX780 Nitrogen Generator

Hakko FX780 Nitrogen Generator

SKU:Hakko FX780-01

Regular price $1,781.07
Regular price Sale price $1,781.07
Sale Sold out
Shipping calculated at checkout.
N2 SOLDERING SYSTEM

The Hakko N2 soldering system is the ideal solution for all your LEAD-FREE hand-soldering applications. The bench-top FX-780 Nitrogen Generator creates nitrogen gas from filtered, dry compressed air and the FX-791 Nitrogen Controller and FM-2026 Soldering Iron delivers it efficiently and uniformly to the soldering area.

NOTE: If you do NOT have nitrogen availability at your work station, the compact FX-780 Generator is the best bang for your buck.

Compact, high-performance FX-780 Nitrogen Generator
• concentration of generated air = 99.9%
• concentration of generated N
2 gas = 98%
• generator can be placed perpendicularly or horizontally
Part Number: FX780-01(sold separately, NOT included with FM2026-KIT)

Nitrogen Generation
(l/min at 25°C/77°F)

Supplied
Air Pressure
(MPa)
N2
Concentration
(%)
99.9 99.5 99.0 98.0 97.0 96.0 95.0 90.0
0.3 Amount of
Generated N2
0.15 0.37 0.48 0.66 0.88 1.1 1.3 2.6
0.4 Amount of
Generated N2
0.24 0.57 0.77 1.1 1.4 1.7 2.0 4.4
0.5 Amount of
Generated N2
0.35 0.75 1.1 1.5 1.9 2.2 2.9 5.9
0.6 Amount of
Generated N2
0.48 0.97 1.3 1.8 2.4 3.1 3.5 7.5
0.7 Amount of
Generated N2
0.55 1.2 1.6 2.2 3.1 3.7 4.2 9.2

Call your local Hakko sales professional for a no obligation demonstration today.

Note: The 6 mm hose (black tubing) from the nitrogen generator to the controller are not included because length requirements vary greatly from customer to customer. The 6 mm hose (black tubing) can be purchased at your local hardware store.


Part Number: FX780-01 Generator(see Specifications for details)
Part Number: FX791-01 Controller(see Specifications for details)
Part Number: FM2026-01 N
2 Soldering Iron(see Specs for details)

Part Number: FM2026-KIT

Note: FM-2026-KIT includes FM2026-01 (iron) and FX791-01 (Controller) ONLY



Product Key: FX780-01 N2 STATION, GENERATOR, FX-780
SPECIFICATIONS

Nitrogen Generator
Model Name FX-780
Part Number FX780-01
Air Supply Pressure 44 - 102 psi (0.3 - 0.7 MPa)
Concentration of Generated Air 99.9 % (max)
Generated N2 Gas Flow 1.5 l/min
when 0.5 MPa of air supply pressure
is supplied at 25°C, the concentration of
generated N2 gas is 98%
Outer Dimensions (w/o sockets and valve) 2.9(W) x 11.1(H) x 2.8(L) in.
(73 x 282 x 71 mm)
Weight
(w/o rack)
3.3 lb. (1.5 Kg)
Contents FX-780 (1 pc)
Rack and screws (1 set)

Document Description
Download FX-780 Users Manual Rev. 4.2008
Released 3/26/2009
Document Category: Manual
Download New Hakko FX-791 Nitrogen Controller
Released 4/1/2005
Document Category: Product Bulletin
Download Hakko N2 System Brochure
Released 12/1/2007
Document Category: Publication
Download Soldering in a Nitrogen Atmosphere
Released 12/12/2002
Document Category: Tech Note
