Hakko FX-973 3-Port Rework Station w/ Pencil Style Handpiece

Advanced 3-Port Rework Station for Professional Electronics Work

The Hakko FX-973 3-Port Rework Station w/ Pencil Style Handpiece offers unmatched versatility, power, and precision in high-performance soldering and desoldering. Designed for electronics repair, prototyping, and production, this station delivers fast, reliable results with advanced safety and control features.

Key Features & Benefits:

• 400 W Total Power – Supports soldering and desoldering tools simultaneously for rapid workflow.
• Wide Temperature Range – 50 °C to 450 °C under typical use; extends to 500 °C with heavy-duty tools. Desoldering range: 330 °C to 450 °C.
• Precision Temperature Stability – ±3 °C idle (standard irons), ±5 °C when using heavy-duty or desoldering tools.
• Integrated Vacuum Pump – Double-cylinder design with up to 80 kPa (≈600 mm Hg) suction and 15 L/min flow.
• 10 Handpiece Options Available - Choose from an assortment of soldering & rework handpieces
• Efficient Size – Compact dimensions (158 mm W × 135 mm H × 254 mm D) and lightweight (5.3 kg) for ergonomic benchtop placement.
• Advanced Control – Includes low-temp alarm, sleep timer, auto shut-off, password lockout, and five programmable presets.
• Software Connectivity & Calibration – Compatible with Hakko Control Software and FG-100/101B IR thermometer for wireless temp offset and data logging.
• Priority Channel Switching – Built-in sensors detect the active handpiece and switch automatically while keeping others at set temperature.

Specifications:

• Power Consumption: 400 W total
• Temperature Range: 50 °C – 450 °C (standard); up to 500 °C with heavy-duty tools; 330 °C – 450 °C (desoldering)
• Temperature Stability: ±3 °C idle (standard handpiece); ±5 °C (heavy-duty/desoldering handpiece)
• Vacuum Pump: Double-cylinder type, 80 kPa (600 mm Hg), 15 L/min suction flow
• Output Voltage: AC 24V
• Dimensions (W × H × D): 158 mm × 135 mm × 254 mm


Technical Documents:

FX-973 Brochure (PDF)
PB496 New Hakko FX-973 3-Port Rework Station (PDF)

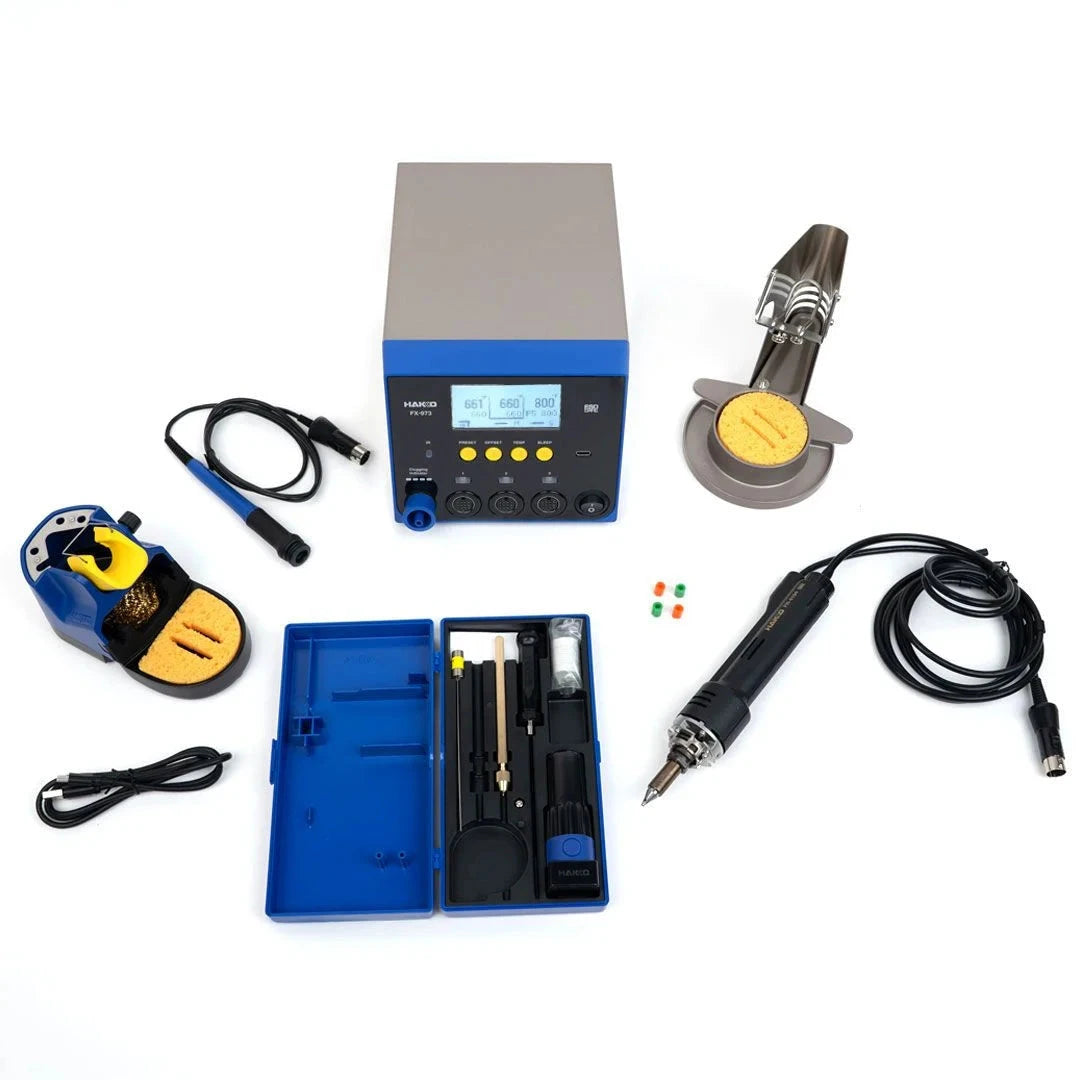

What’s in the Box:

• FX-973 Main Station Unit
• FX-9701 Standard Soldering Iron
• Iron Holder FH-215 (with cleaning sponge and wire)

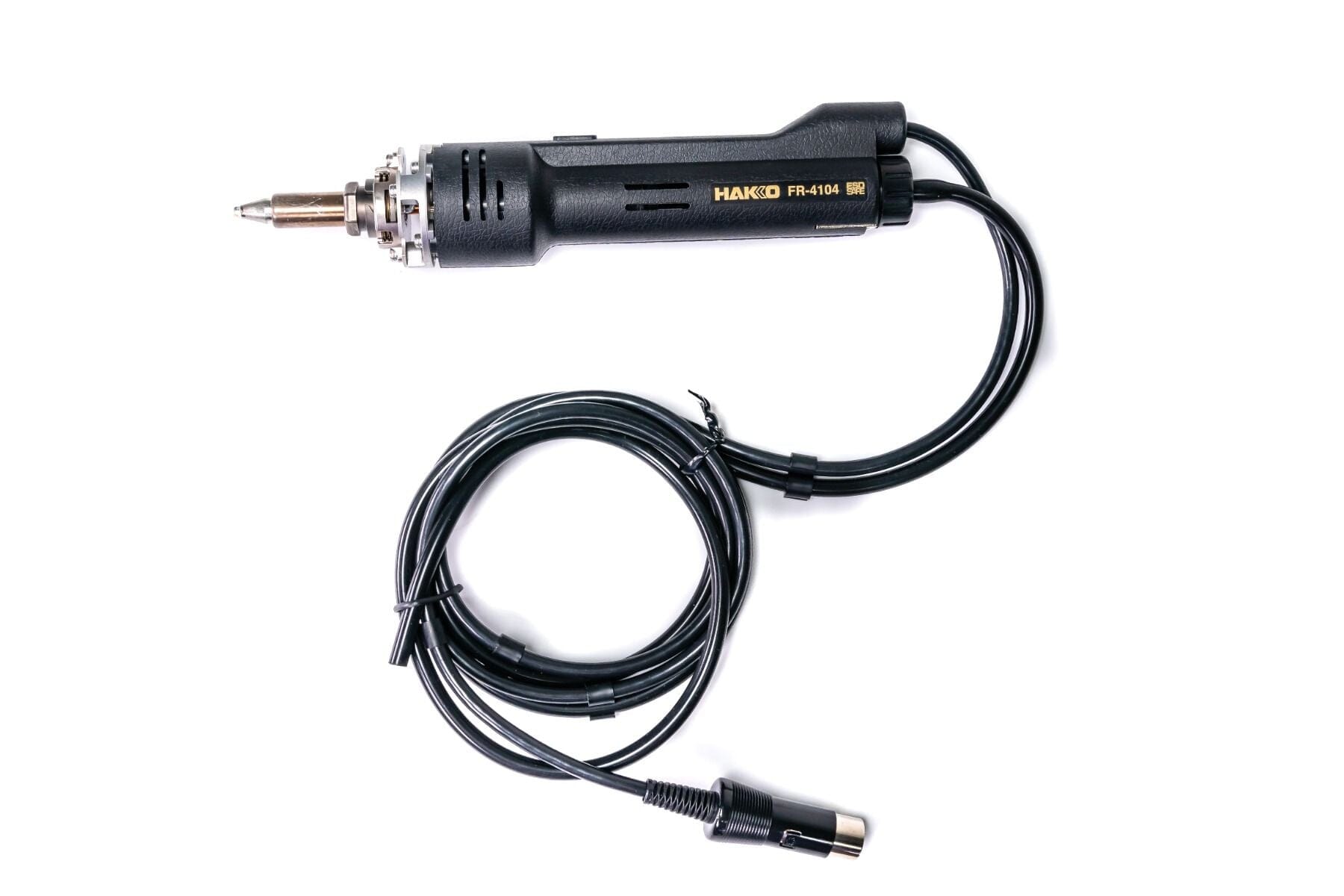

• Desoldering Gun FR-4104 (pencil-style)
• Iron Holder FH-410-02 (with cleaning sponge)
• Maintenance Kit (C5030)
• Green and Orange Color Bands (2 each)
• USB-C Cable (B5385)
• Power Cord (B2387)
• Instruction Manual

Ideal For:

• High-speed electronics assembly, rework, and repair
• Multi-tool workflows—soldering and desoldering without swapping stations
• Quality-controlled environments with data tracking and security

Experience powerful, precise, and reliable rework capability—Hakko FX-973 delivers industry-leading tools in a compact, connected, and efficient package.
