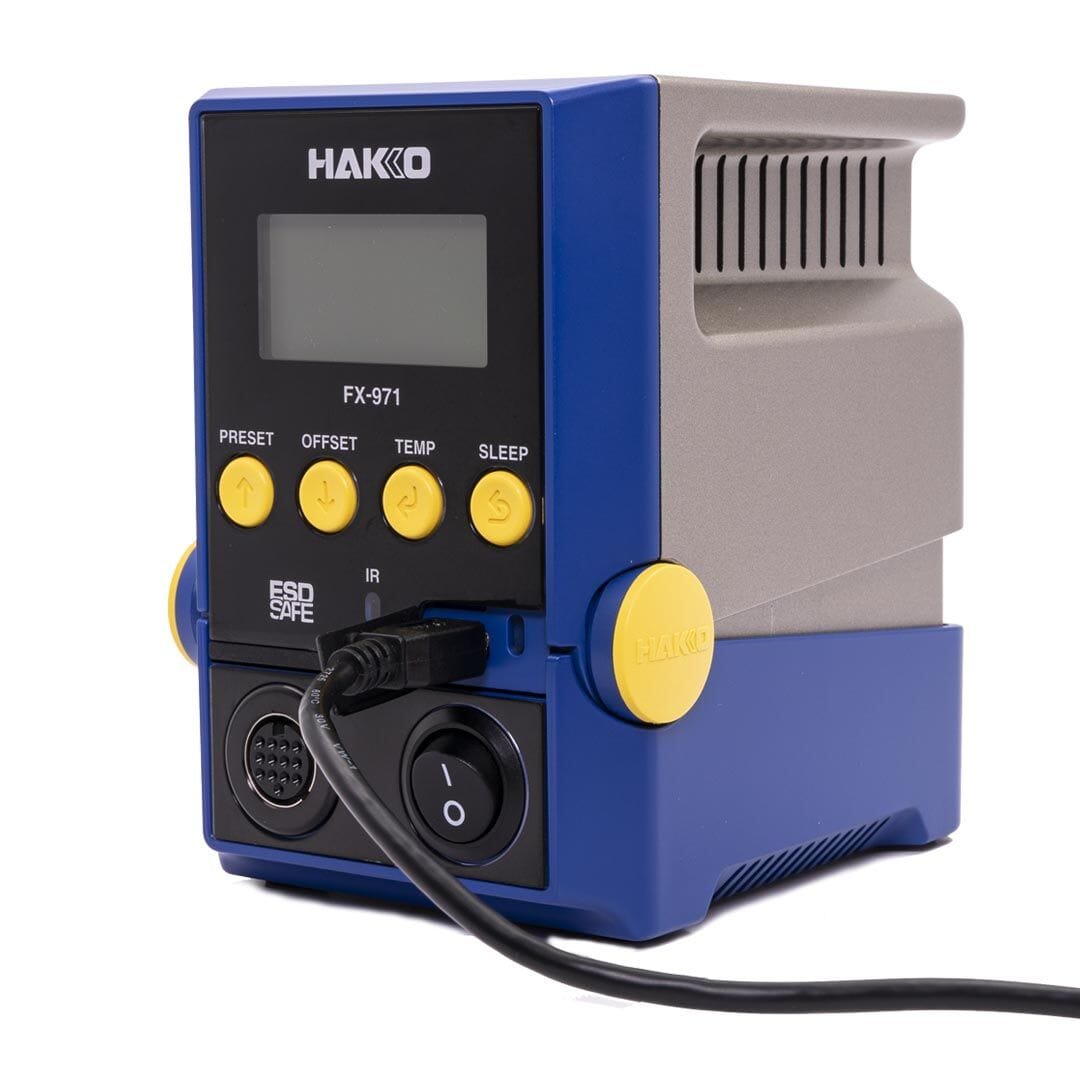

Hakko FX-971 Soldering Station, Station Only

Hakko FX-971 Soldering Station, Station Only

HAKKO FX971-011

$220.00
$220.00
Sale Sold out
Shipping calculated at checkout.

The New HAKKO FX-971 Soldering Station is the future of soldering, bringing together precision and innovation with the quality, reliability, and power Hakko is known for. A 100W station with a minimal footprint to maximize your workbench space, both a standard and micro handpiece, and an all-new holder for removing and storing tips. This new designed soldering station provides operators with a 15-degree face tilt, large LCD, multi-button functionality, and connects to the new Hakko Control Software.

Station Features:

  • 100W Station
  • 120° - 850° F Temperature Range
  • 15-degree TILT
  • HAKKO CONTROL SOFTWARE
  • No sleep cable
  • No Grips for the Handpiece
  • Wireless Offset Feature (FG100B, FG101B)
  • Stackable
  • Large LCD Panel
  • Station Only - Handpiece and tips not included

The FX-971 uses newly designed T39 Series tips with higher power output and optimized geometries to achieve peak performance of the HAKKO Composite Ceramic™ heater at its heart while maintaining HAKKO’s renowned tip life and low operating costs. It utilizes two new soldering handpieces, the FX-9701 standard handpiece and the FX-9703 micro soldering handpiece.

The station itself uses a minimal footprint design that allows multiple units to be stacked to conserve workbench space and includes a new easy to read display that is more than 4 times larger than the FX-951 and displays set temperature and sensor temperature simultaneously. The operation and setup are similar to the FX-951 but the interface is redesigned to be intuitive and includes new features such as IR auto offset when using the FG-100B Tip Thermometer or FG-101B Station Tester, preset mode that allows easy selection of up to 5 user programmable presets, 3-letter passcode lock for process control, and user selectable sleep temperature. The HAKKO FX-971 also includes a USB interface that allows the station to be setup, controlled, and monitored from a PC using the HAKKO Control Software that is included with the station.

The FX-971 can also be used with the FX-9702 Nitrogen Standard and FX-9704/9705 Micro Handpieces. Click here for those options.
