Hakko

Hakko FM2030 Heavy Duty Soldering Iron, 24v-140w, w/FH-200, FM2030

Hakko FM2030 Heavy Duty Soldering Iron, 24v-140w, w/FH-200, FM2030

SKU:Hakko FM2030-02

Regular price $187.17
Regular price Sale price $187.17
Sale Sold out
Shipping calculated at checkout.

HEAVY DUTY SOLDERING IRON with HOLDER

The Hakko FM-2030 Soldering Iron provides a higher mass tip with double the power of conventional T15 tips. This iron is ideal for soldering difficult-to-solder heavy ground planes and/or high heat sink applications.

• uses T22 tips (not included)
• compatible with the Hakko FM-203 soldering station and FM-206 rework system
• includes holder (with sleep functionality), tip cleaner and other affiliated parts

IMPORTANT. PLEASE READ: The FM-2030 can only be attached to the Hakko FM-203 "D" port, and the Hakko FM-206 CH2 or CH3 ports. If you attach the iron to any other port, a grip error or connector error (C-E) will occur.

Note: The FM-203 stations with serial numbers before 0220311002129 will require the purchase of an upgrade. Due to the upgrade process requirements, upgrades cannot be performed in the field. Stations must be returned to American Hakko under an RMA for this upgrade, at which time the upgrade (PN: FM203-UPGR) can be purchased with the FM2030-02 kit and your selection of T22 tips.

(see Specifications for details, including CONTENTS)

Part Number: FM2030-02

Note: Handpiece ONLY =
Part Number: FM2030-01






Product Key: FM2030-02 CK, HD, SDRG, 24V-140W, w/FH-200, FM-2030

SPECIFICATIONS

FM-2030 Heavy Duty Soldering Iron

Model Name FM-2030
Part Number FM2030-01 (handpiece only)
Power Consumption 140W / 24VAC
Tip to Ground Resistance <2 ohms
Leak Voltage <2mV
Total Length (w/o cord) 224mm (8.8 in.)
Weight (w/o cord) 41g (1.4oz)
Cord/Reach 1.3m (4.3 ft.)
Tips T22 Series (not included)

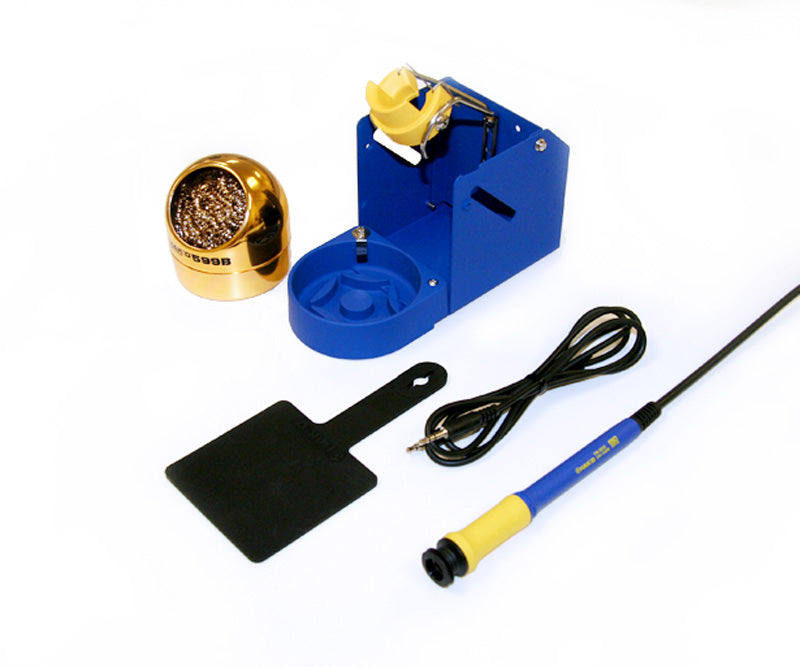

FM2030-02 CONTENTs (handpiece, holder, etc.)

Part Number
Description
FM2030-01 FM-2030 Handpiece
FH200-01 Handpiece holder with Sleep function
B3253 Connecting cable
B2300 Heat resistant pad
