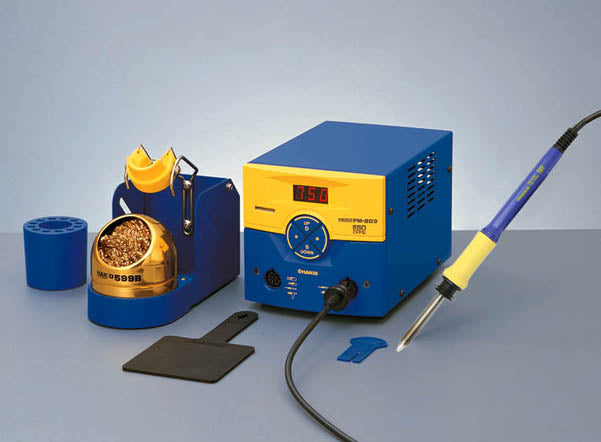

Hakko FM203-HD Heavy Duty Soldering Station w/Handpiece, No Tip

Hakko FM203-HD Heavy Duty Soldering Station w/Handpiece, No Tip

Hakko FM203-HD

Regular price $612.47
Shipping calculated at checkout.

Only 1000000 items in stock!
DUAL PORT SOLDERING STATION

The FM-203 offers two soldering ports for a variety of soldering tools that can be used in a variety of combinations, including soldering irons, SMD hot tweezers and/or desoldering tools.

Note: Desoldering tool requires the Hakko FM-2024 desoldering module.

The FM-203 features:

• process control so you can select any temperature you want without changing the tip - one tip, any temperature!

• temperature range 200 - 450°C (400 - 840°F)

• temperature accuracy ±15°C

• LED in handpiece tells the operator the iron is hot

• auto shutoff

• sleep mode functionality

• No Calibration Necessary

Note: Tips are NOT included.


Part Number: FM203-HD

Attention: The FM-203 ships with one (1) FM2030-01 Heavy Duty soldering handpiece.

See Specifications for more details.


Note: The FM-203 stations with serial numbers before 02203211002129 will require the purchase of an upgrade. Due to the upgrade process requirements, upgrades cannot be performed in the field. Stations must be returned to American Hakko under an RMA for this upgrade, at which time the upgrade (PN: FM203-UPGR) can be purchased with the FM2030-02 kit and your selection of T22 tips.

Product Key: FM203-HD STATION, SDRG, 2 PORTS, ESD, w/FM-2030, w/o TIP, FM-203
FM-203 SOLDERING STATION
Model Name FM-203
Part Number FM203-HD
Power Consumption 140W / 120V
Temperature Stability ±5°C (±9°F)
Temperature Accuracy ±15°C (±27°F)
STATION
Output Voltage 24V
Outer Dimensions 120(W) x 120(H) x 190(D) mm
4.7 (W) x 4.7 (H) x 7.5 (D) in.
Weight 2.7 kg (5.9 lbs.)

SOLDERING IRON (FM-2030 Heavy Duty handpiece only)

Power Consumption 140W / 24V
Temperature Range 200° - 500°C (400° - 930°F)
Tip-to-Ground Resistance < 2 ohms
Tip-to-Ground Potential < 2mV
Total Length (w/o cord) with 2.4D tip 224 mm (8.8 in.)
Weight (w/o cord) with 2.4D tip 41g (1.4 oz.)
Cord 1.3 m (4.3 ft.)
Tips T22 Series (not included)

CONTENTS

Part Number Description
N/A FM-203 Soldering Station
FM2030-01 FM-2030 Handpiece
B2419 Power cord
B2972 Control card
B2300 Heat resistant pad
FH200-01 Iron Holder, Sleep, w/599B
B3253 Connecting cable
B2756 Tip tray
N/A Instruction manual - FM-203
N/A Instruction manual - FM-2030
N/A Product Supplement

APPROVED

Document Description
Download FM-203 User Manual (Rev 2011-10)
Released 10/17/2011
Document Category: Manual
Download New Hakko FM-203 Dual Port Soldering System
Released 11/5/2007
Document Category: Product Bulletin
