Hakko C5029 Rework Fixture for FR-810B, FR-811

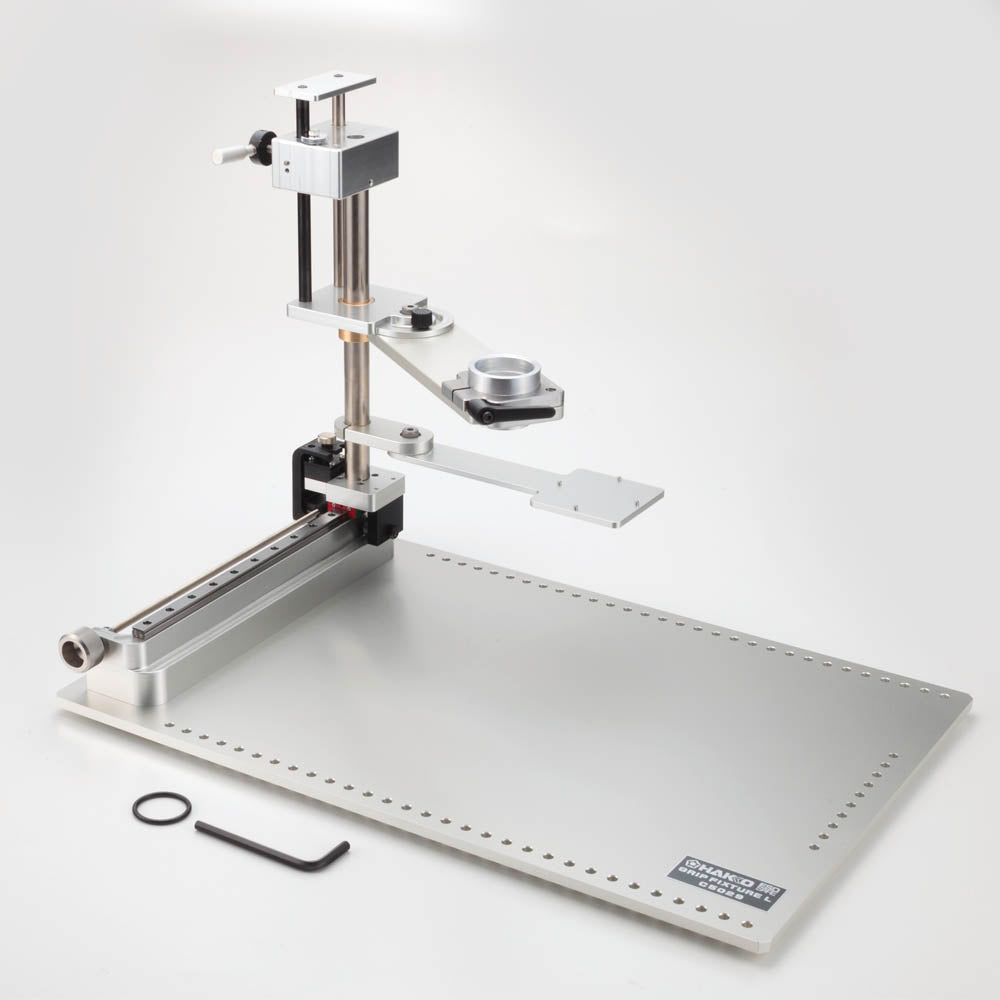

The C5029 Handpiece Fixture provides large stable platform with multiple mounting positions for HAKKO C5027 Board Holder. The fixture includes a one-touch slide adjustment as well as a knob for fine adjustment in the y-axis.

The swing arm and adjustable collar allows for easy positioning of the handpiece directly above the component to be reworked and also allows the rotation of the handpiece to adjust the theta angle of the nozzle in relation to the component.

A component tray is integrated with the handpiece fixture as an added swing arm that is height adjustable.

• Part Number : C5029

CONTENTS

Part Number	Description
C5029	Handpiece Fixture L
888-085	Hex Wrench (6 mm)
--	O-Ring
--	User Manual

Part Number	C5029
Reach1	15.5 in. (131 mm) Max
Z-axis Stroke	4.7 in. (120 mm)
Arm Position	Adjustable through 180°
Dimensions (W x H x D)	22.9 x 19.3 x 14.2 in 582 x 491 x 361 mm
Weight (L)	19.6 lb. (8.89 kg)
ESD Safe	Yes

1 Measued with C5027 Board Holder

Note: Specifications subject to change without notice

Document Description Download C5029 User Manual(5.31 MB ) Download New HAKKO C5029 Handpiece Fixture(305.99 KB )
