Hakko C5028 Handpiece Rework Fixture

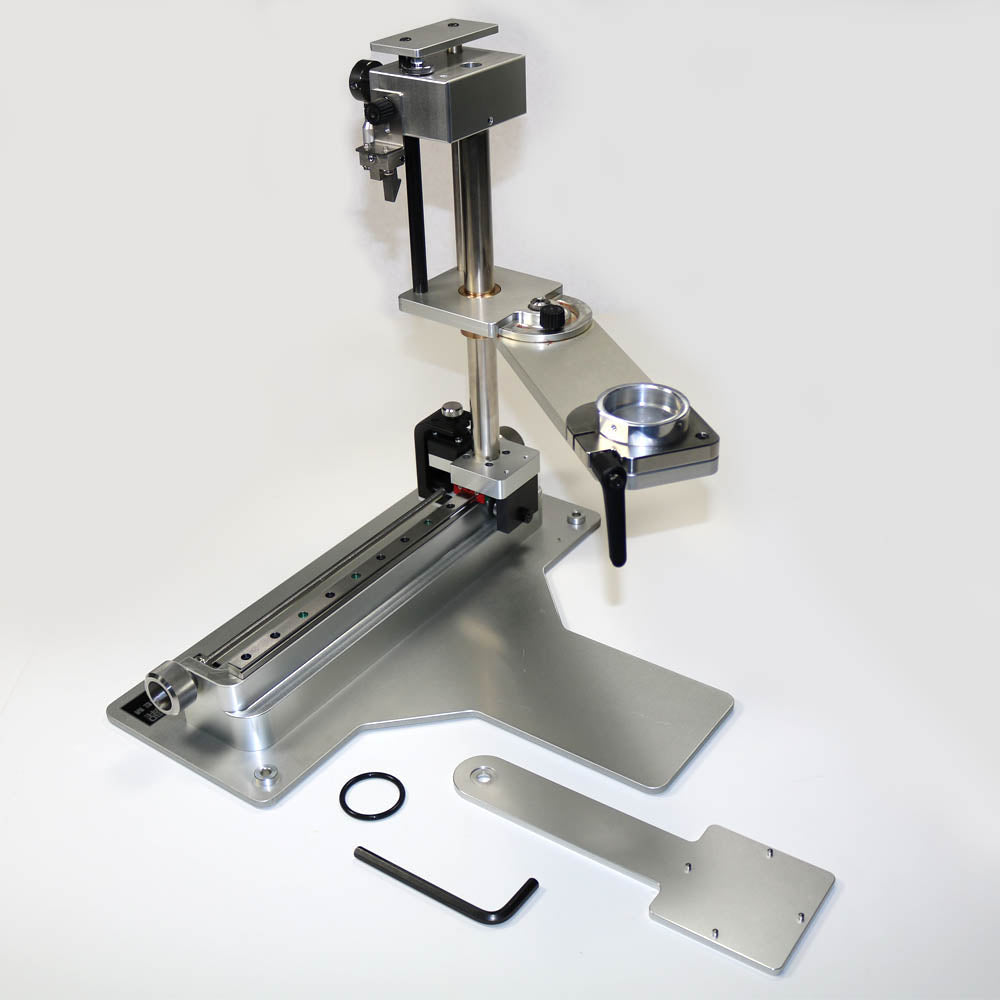

The HAKKO C5028 Handpiece Fixture is designed for use with the HAKKO FR-810, FR-810B hot air rework stations and the HAKKO FR-811 SMD rework system. The fixture provides a small but stable footprint for users with limited space and is ideal for use with other HAKKO preheaters.

The C5028 includes an attachment point for the HAKKO C5027 board holder, a one-touch slide adjustment as well as a knob for fine adjustment in the y-axis.

The swing arm and adjustable collar of the fixture allows for easy positioning of the handpiece directly above the component to be reworked also allows the rotation of the handpiece to adjust the theta angle of the nozzle in relation to the component.

A hand-held component tray is also included.

• Part Number : C5028

CONTENTS

Part Number	Description
C5028	Handpiece Fixture M
888-085	Hex Wrench (6 mm)
B5139	Component Tray
--	O-Ring
--	User Manual

Part Number	C5028
Reach1	15.5 in. (131 mm) Max
Z-axis Stroke	4.7 in. (120 mm)
Arm Position	Adjustable through 180°
Dimensions (W x H x D)	13.4 x 18.9 x 14.6 in 340 x 480 x 370 mm
Weight (L)	12.6 lb. (5.72 kg)
ESD Safe	Yes

1 Measued with C5027 Board Holder

Note: Specifications subject to change without notice
