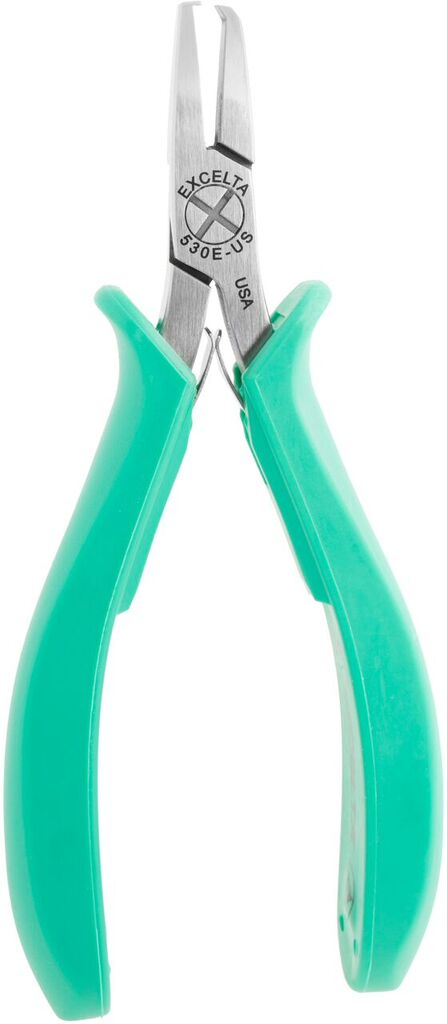

Excelta Standoff Shear Cutter 530E-US-050 Smallest Fine Tips, Molded Grip, .050" Lead

EXC-530E-US-050

Excelta Standoff Shear Cutter 530E-US-050 Smallest Fine Tips, Molded Grip, .050" Lead
Excelta Standoff Shear Cutter 530E-US-050 Smallest Fine Tips, Molded Grip, .050" Lead

Excelta Standoff Shear Cutter 530E-US-050 Smallest Fine Tips, Molded Grip, .050" Lead

EXC-530E-US-050

Regular price $141.10
Shipping calculated at checkout.

Only 1000000 items in stock!

The Excelta 530E-US-050 Standoff Shear Cutter has the Smallest Fine Tips and Molded Grip. Cuts up to 22 AWG soft wire with a .050" Lead.

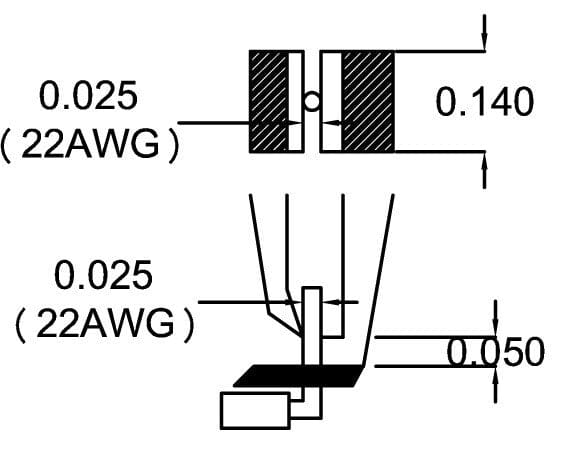

Reduces shock on delicate components and solder connections. The "Stand-Off" keeps the cutting blade from cutting into the solder connections. The cut leaves a .050" lead protruding from the board. The grips are static dissipative (10⁸ ohms/sq).

**Item is a custom tool, and is made to order. Item typically ships within 3-4 weeks of order.

530E-US-050 Standoff Cutter Specifications

Quality Level: ★★★★★
Material: Carbon Steel
Tip Size: .140" (3.5mm)
Type of Cut: Shear
Cutting Capacity: .025" max (.63mm max)
Over All Length: 5" (125mm)
Body Width: .42" (10.5mm)
Body Height: .25" (6.25mm)
