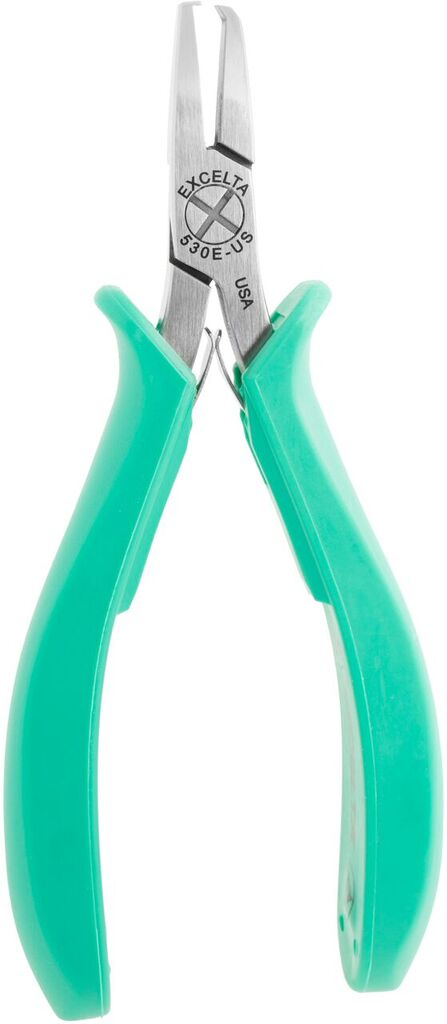

The Excelta 530E-US-040 Standoff Shear Cutter has the Smallest Fine Tips and Molded Grip. Cuts up to 22 AWG soft wire with a .040" Lead.

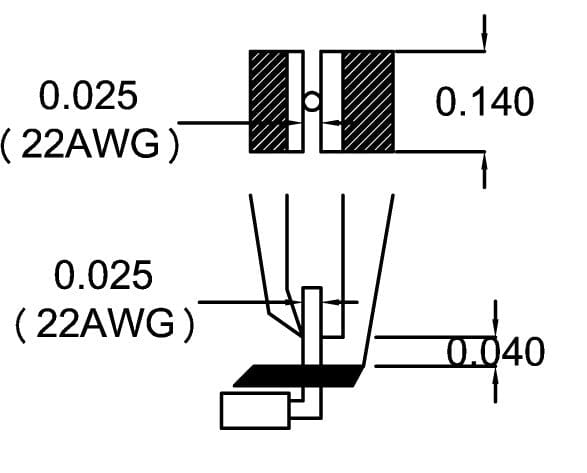

Reduces shock on delicate components and solder connections. The "Stand-Off" keeps the cutting blade from cutting into the solder connections. The cut leaves a .040" lead protruding from the board. The grips are static dissipative (10⁸ ohms/sq).
**Item is a custom tool, and is made to order. Item typically ships within 3-4 weeks of order.
530E-US-040 Cutter Standoff Specifications
|Tip Size:||.140" (3.5mm)|
|Type of Cut:||Shear|
|Cutting Capacity:||.025" max (.63mm max)|
|Over All Length:||5" (125mm)|
|Body Width:||.42" (10.5mm)|
|Body Height:||.25" (6.25mm)|
