Excelta Standoff Shear Cutter 530E-5-USL-060 Medium Fine Tips, Long Cushioned Grip, .060" Lead
Excelta Standoff Shear Cutter 530E-5-USL-060 Medium Fine Tips, Long Cushioned Grip, .060" Lead
SKU:EXC-530E-5-USL-060
Regular price
$191.31
Regular price
Sale price
$191.31
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

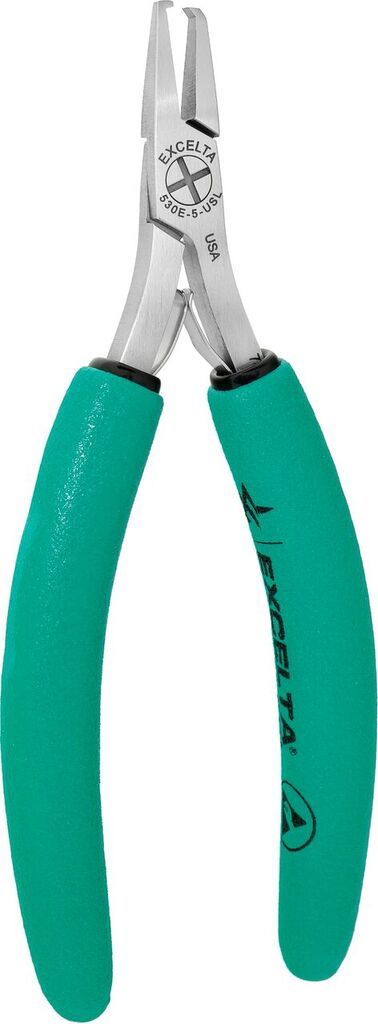

The Excelta 530E-5-USL-060 Standoff Shear Cutter has Medium Fine Tips and a Long, Cushioned Grip. Cuts up to 22 AWG soft wire with a .060" lead.

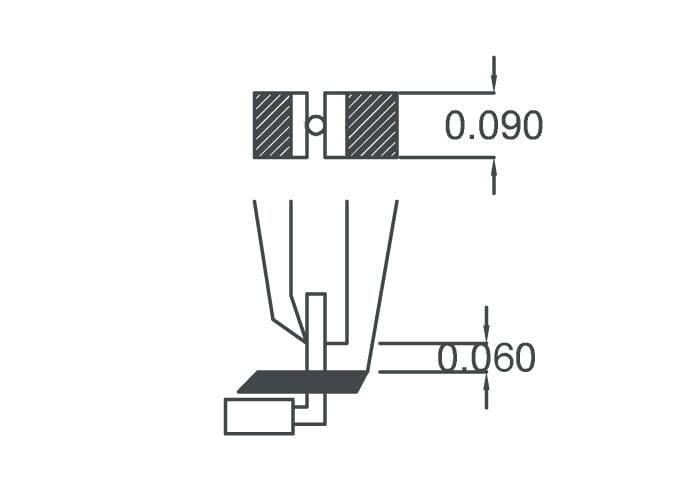

Reduces shock on delicate components and solder connections. The "Stand-Off" keeps the cutting blade from cutting into the solder connections. Cut length is .050". The grips are ESD Safe (10¹⁰ ohms/sq).
**Item is a custom tool, and is made to order. Item typically ships within 2-3 weeks of order.
530E-5-USL-060 Standoff Cutter Specifications
| Quality Level: | ★★★★★ |
| Material: | Carbon Steel |
| Tip Size: | .090" (2.25mm) |
| Type of Cut: | Shear |
| Cutting Capacity: | .025" max (.63mm max) |
| Over All Length: | 6" (150mm) |
| Body Width: | .42" (10.5mm) |
| Body Height: | .25" (6.25mm) |
