Excelta Standoff Shear Cutter 509-42A-US-050 Very Large Head, Small Frame, Molded Grip, .050" Lead

Excelta Standoff Shear Cutter 509-42A-US-050 Very Large Head, Small Frame, Molded Grip, .050" Lead

EXC-509-42A-US-050

$328.47
$328.47
Sale Sold out
Shipping calculated at checkout.

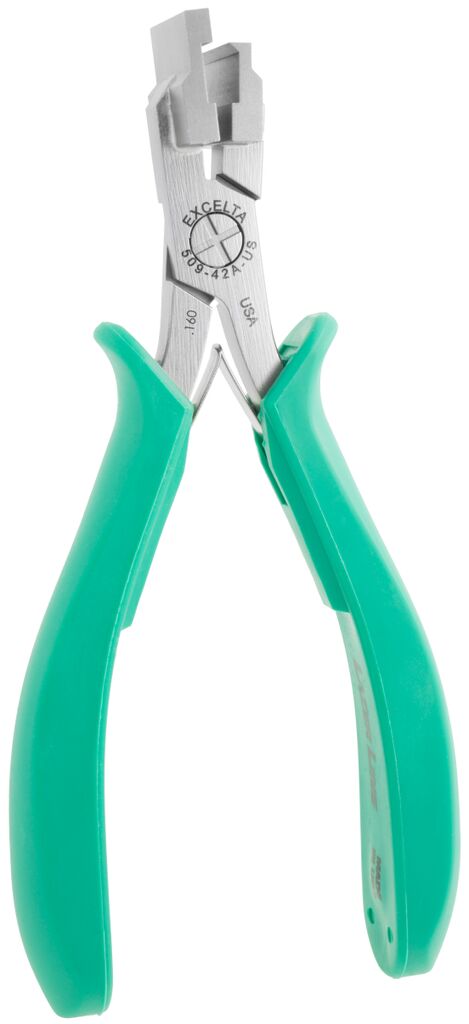

The Excelta 509-42A-US-050 Standoff Shear Cutter has a Very Large Head with a Small Frame and a Molded Grip. Cuts up to 22 AWG soft wire with a .050" lead.

The 509-42A-US multi-lead shear cutter is designed to cut one complete row of 8 D.I.P/I.C. leads in one motion. This tools will cut each lead and leave a .050" stand-off on the printed circuit board to facilitate a reliable solder joint. It features a molded static dissipative (10⁸) ergonomic grip and dual leaf springs for smooth action.

**Item is a custom tool, and is made to order. Item typically ships within 2-3 weeks of order.


509-42A-US-050 Standoff Cutter Specifications

Quality Level: ★★★★★
Material: Carbon Steel
Tip Size: .875" (21.88mm)
Type of Cut: Shear
Cutting Capacity: .025" max (.63mm max)
Over All Length: 5.25" (137.5mm)
Body Width: .42" (10.5mm)
Body Height: .25" (6.25mm)
