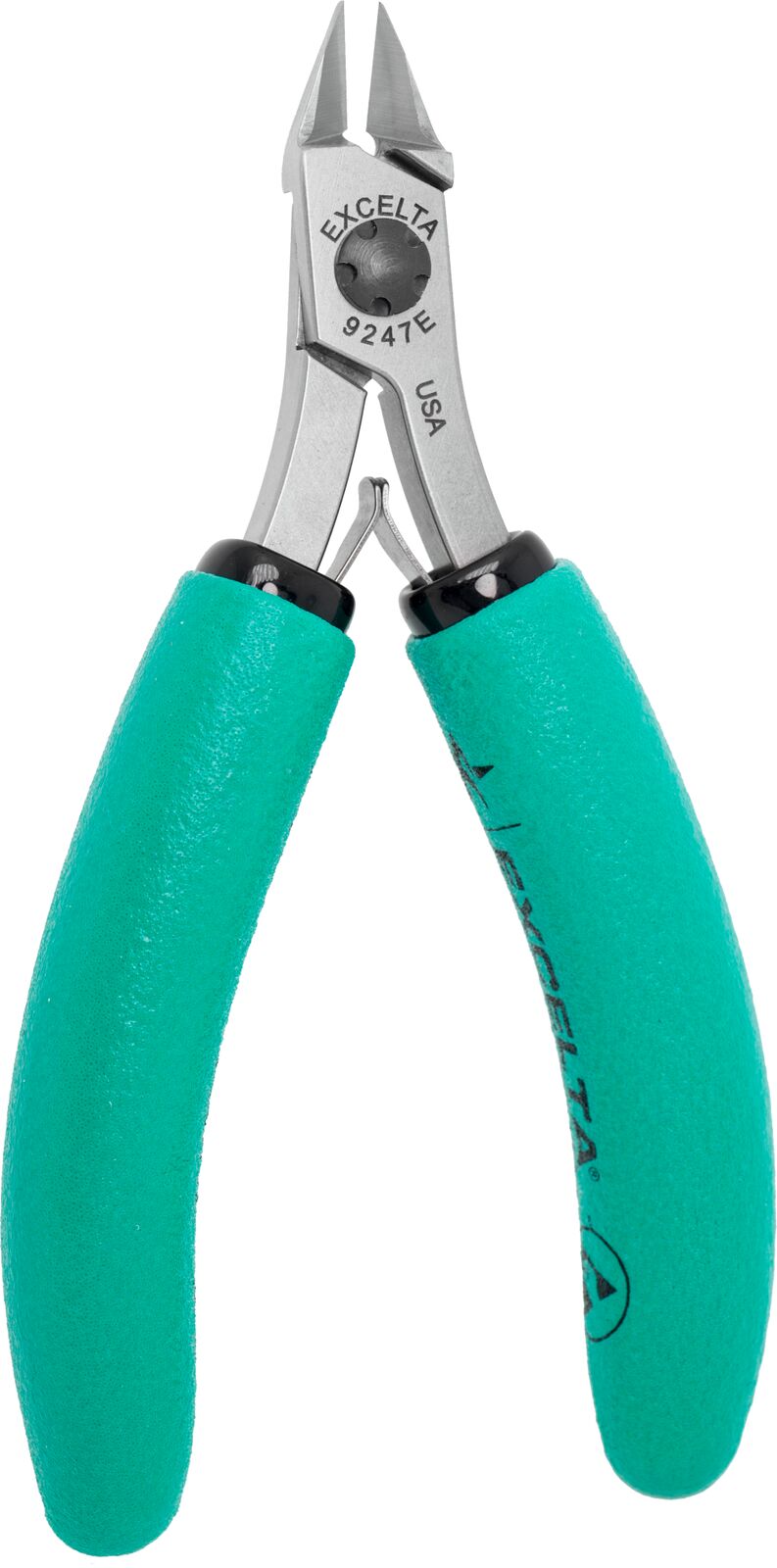

The Excelta 9247E cutter has a Slim Line Medium Tapered Relieved Head. The tapered relieved head was developed to allow the cutting tool to get into those "hard to reach" areas. It was designed more along diagonal lines withe less "metal" behind the cutting edge.
This cutter features induction hardened cutting blades to RHC 63-65. The CNC machining allows the Lazerlok™ joint surfaces to be perfect to allow for long life. The grips are soft cushioned foam and are ESD safe (10¹⁰ ohms/sq). The dual leaf springs provide smooth action.
9247E Cutter Specifications
|Trade Name:||Slim Line|
|Tip Size:||.003" - .005" (.08mm - .13mm)|
|Type of Cut:||Maximum Flush|
|Cutting Capacity:||005"-.032" soft (.13mm - 0.8mm soft)|
|Over All Length:||4.5" (115mm)|
|Body Width:||.42" (10.5m)|
|Body Height:||.25" (6.25mm)|
