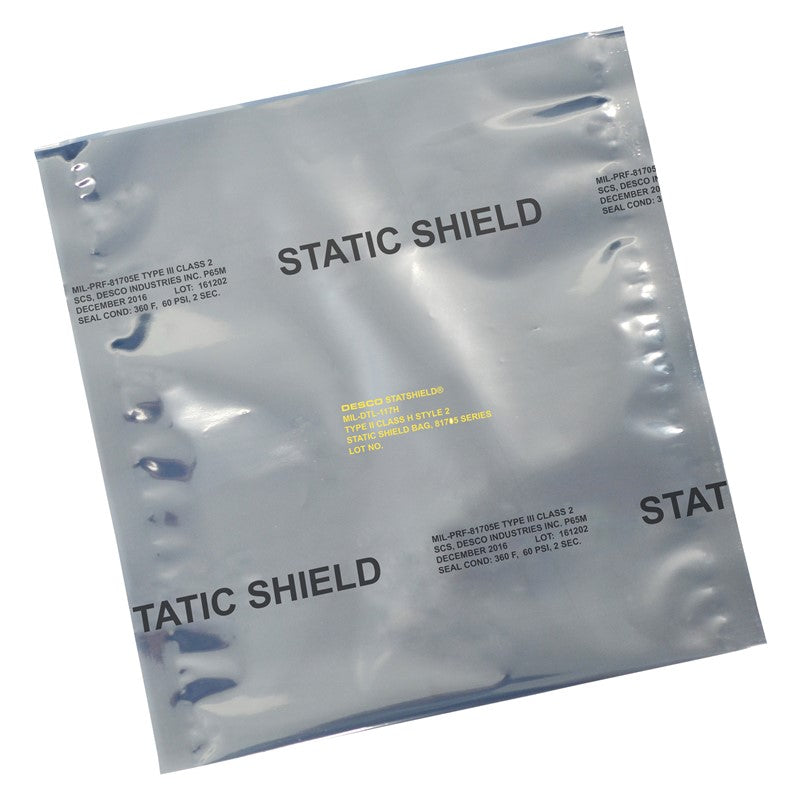

Desco Static Shield Bag, MIL-PRF-81705E Type III, Class 2, 81705 Series Metal-In 3x5 100/EA

Desco 12910 Series Metal-in Static Shield Bags feature:

• MIL-PRF-81705E Type III, Class 2 Qualified Film Laminate (0.0028”)
  Listed on the qualified products list (QPL) Defense Standardization Program for electrostatic discharge (ESD) protective materials.
• Converted per MIL-DTL-117H
  Constructed and marked per requirements for heat-sealable bags used in military preservation.
• Material Identification Printed Between Polyester and Aluminum Shielding Layer
  Prevents markings from rubbing or sloughing off.
• <10 nJ Energy Limit Test per MIL-PRF-81705E Method 4.6.9
  Meets requirements¹ for ESD shielding packaging inside and outside an ESD Protected Area (EPA).
• Dissipative Outer Surfaces Rtt <1 x 10¹² ohms per MIL-PRF-81705E Method 4.6.8​
  Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator.
• Dissipative Inner Surface Rtt ≥ 1 x 105 to <1 x 1012 ohms per ANSI/ESD STM11.11
  Allows bag to be used with ESD susceptible items.
• Lead-free RoHS Compliant
• Made in the United States of America​
