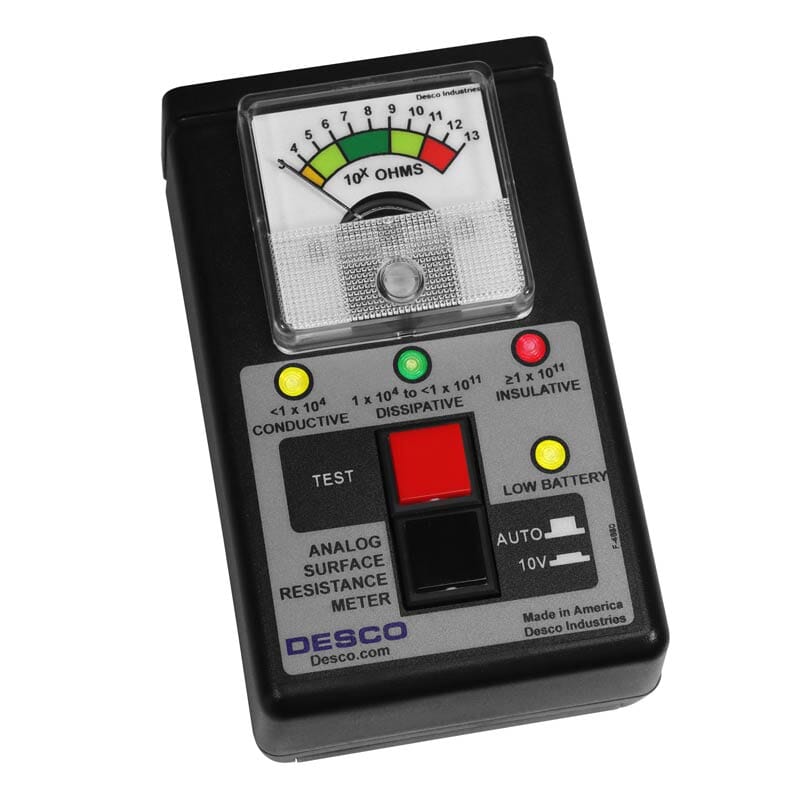

Desco 19786 Analog Surface Resistance Meter

The Desco 19786 Analog Surface Resistance Meter is designed to accurately measure resistance point-to-point (RTT) and surface to ground (RTG). This portable battery-powered meter conveniently features an automatic test voltage selector, which switches from 10V to 100V when the measured resistance exceeds 1 x 10⁵ ohms. Trust the Desco Analog Surface Resistance Test Kit for reliable and precise measurements.

• Analog Compliance Verification Surface Resistance Checker
  Used for determining if a surface is dissipative, conductive or insulative
• Automatic Test Range Voltage Selection Per Compliance Verification ESD TR53
  Starts tests at 10 volts and automatically switches to 100 volts if the measurement is over < 1 x 10⁵ ohms
• Portable Operation with 9 Volt Battery
  No charging or sourcing of special batteries needed
• LED Illuminates When Battery Power is Low
  Prevents operator from making bad measurements
• NIST Calibrated – Original Calibration Certificate can be Downloaded Here
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
• Made in the United States of America
