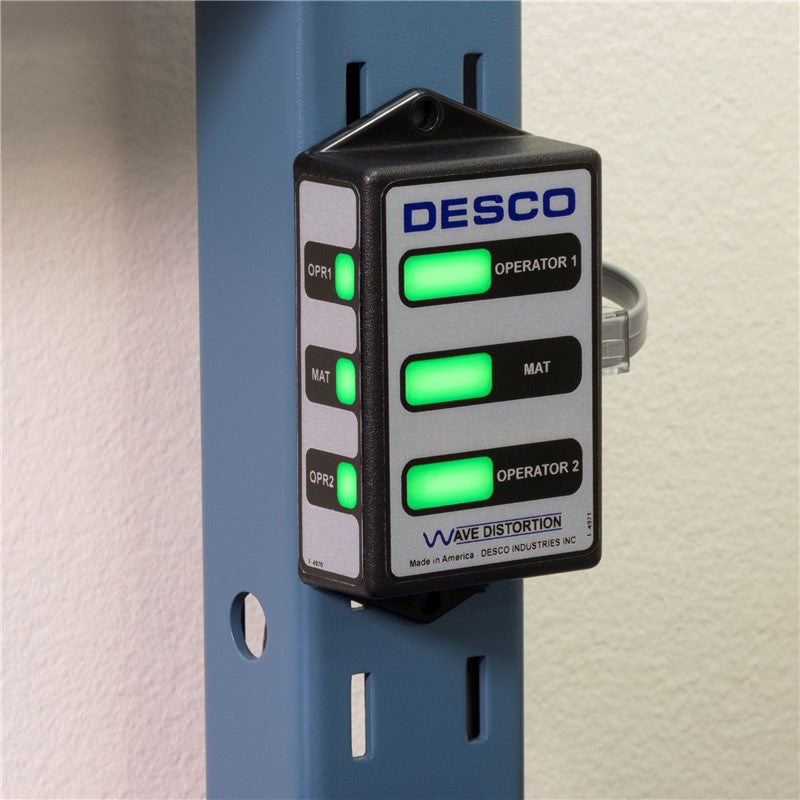

Desco 19655 Dual Operator Continuous Monitor, Single Wire, North America

This New Desco Dual Operator Continuous Monitor Features:

• Dual Operator Workstation Continuous Monitor
  Continuously monitors the path-to-ground integrity of two operators and one ESD worksurface
• Wave Distortion Technology
  Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
• IMPROVED Operator Alarm
  Alarms when the operator unintentionally disconnects from the monitor or the connection between the banana plug and monitor’s jack is intermittent
• NEW Park Delay Timer
  Indicates the 8 second delay to disconnect and park the operator wrist cord
• NEW Visual Status Display
  Displays the operators’ and worksurface status: illuminates red when intermittent or failed connection occurs
• NEW Mat Monitor Switch
  Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
• NEW Audible Alarm Adjustment
  Sets the audible alarm volume from loud to louder
• NEW 19323 Power Relay Accessory
  Controls power to workbenches, hand tools, and other electronic devices dependent on the Dual Operator Continuous Monitor’s status
• Wave Distortion Technology
  Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
• Park Snap
  Allows the operator to disconnect (and park) a wrist strap when leaving the workstation without creating a false alarm
• Single-wire Impedance Design
  Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
• 1.2 Volt Operator Test Voltage
  Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
• <50 Millisecond Alarm Response Time
  Identifies failures and intermittencies
• Calibration Verification
  Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations
• NIST Calibrated with Certificate Included
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
• 100-240VAC Safety Certified Power Adapter with North American Plug
  Works with standard electrical systems in North America, Japan, and Asia
• Made in the United States of America

TB-3091 Dual Operator Continuous Monitor Installation, Operation and Maintenance
