Desco 19431 Body Voltage Meter

The Desco 19431 Body Voltage Meter is a reliable and portable device that measures the charge levels accumulated on the human body. Internal memory allows measurements to be logged, exported, and further reviewed on a PC. Additionally, graphs of the measurements can be displayed on the LCD display for quick evaluation.

Features:

• Body voltage verification meter
  Measures voltage (Human Body Voltage – HBV) on a person in combination with ESD footwear and flooring materials (both pre and post installation) according to IEC 61340-4-5 and ANSI/ESD STM97.2

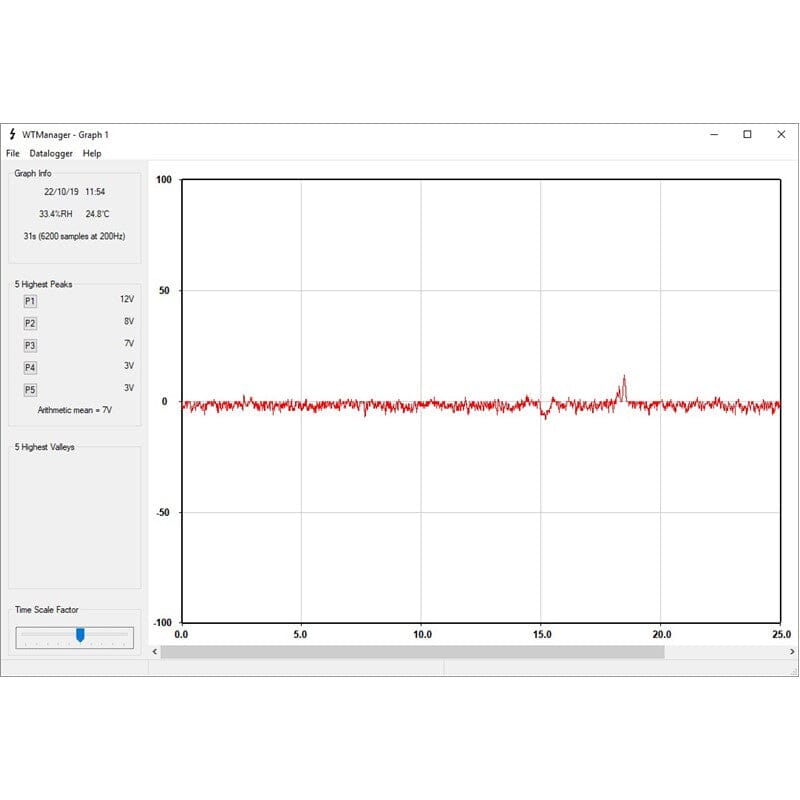

• Nominal and graphed measurements
  Records graphs up to 2.5 minutes in total duration
• Peak hold and continuous measurement modes (±1 V to ±1050 V range)
  Displays the peak or live static voltage measured on the operator’s body
• Internal memory
  Logs up to 10 graphs
• WT Manager software included
  Downloads recorded tests onto a PC and exports to Microsoft Excel
• NIST Calibrated – Original Calibration Certificate can be Downloaded Here
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
• Made in Italy
