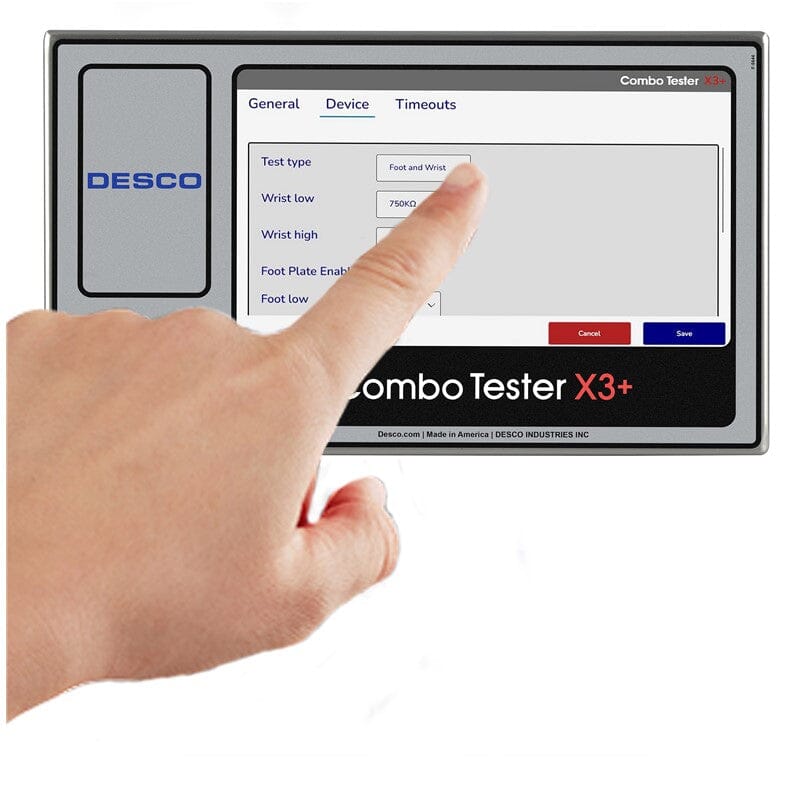

Desco 19266 Combo Tester X3+, North America

The Desco Combo Tester X3+ is a state-of-the-art ESD testing solution designed for efficiency and reliability. Featuring a new 7-inch resistive touchscreen that supports input from both gloved operators and probes offering enhanced usability. The tester includes a 3-prong safety certified power adapter and a replaceable dual-wire wrist strap jack, reducing service downtime. Its VGA video output allows for easy display mirroring to external monitors, and it tests the operator's path-to-ground, verifying the functionality of wrist straps, footwear, and other personal grounding devices.

With programmable test limits meeting ANSI/ESD S20.20 standards, it offers simultaneous testing of personal grounding devices in under two seconds, minimizing downtime. The tester also supports split foot plate testing for foot grounders, and features normally open/closed relay terminals for access control integration.

Offering multilingual settings and NIST calibration, the DESCO COMBO TESTER X3+ is made in the USA and comes with a North American power cord, ensuring seamless operation across various regions.

Features:

• NEW 7 Inch Resistive Touchscreen
  Accepts input from gloved operators and probes
• NEW 3-Prong Safety Certified Power Adapter
  Supplies ground without the need for additional wiring
• NEW Replaceable Dual-Wire Wrist Strap Jack
  Minimizes service downtime
• NEW VGA Video Output
  Mirrors the display onto an external monitor
• Tests Operator’s Path-To-Ground; Wrist Strap Limits 750 kilohms to 10 megohms, Footwear Limits 750 kilohms to 35 megohms¹
  Verifies the functionality of the operator’s personal grounding devices (wrist straps², foot grounders, ESD shoes, smocks³)
• Displays Resistance Measurements
  Indicates the performance of ESD wrist straps and footwear
• Programmable Test Limits
  Meets the test requirements of ANSI/ESD S20.20 or other standards
• Normally Open and Normally Closed Relay Terminals
  Pairs with a turnstile, automatic door, or other locking system to control access to ESD Protected Areas (EPAs)
• Simultaneous Testing in Less Than 2 Seconds
  Reduces time spent testing personal grounding devices used in ESD Control Plans
• Split Foot Plate for Testing Foot Grounders (or Shoes)
  Tests both foot grounders independently at the same time
• Multiple Language Settings
  Displays the user interface in English, Spanish, Japanese, Chinese (Simplified), Turkish, Thai, or French
• North American Power Cord Included
  Works with standard electrical systems in North America and Japan
• NIST Calibrated – Original Calibration Certificate can be Downloaded Here
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
• Made in the United States of America


Technical Information

1. Default test limits listed. Additional test settings are noted in the technical bulletin.
2. The Combo Tester X3+ can verify both single-wire and dual-wire wrist straps.
3. The Combo Tester X3+ will also test a Groundable Static Control Garment System. The Groundable Static Control Garment System must have an RTG of < 3.5 x 10⁷ ohms to meet the required limit of ANSI/ESD S20.20-2007 tested per ANSI/ESD STM2.1 and ESD TR53.
