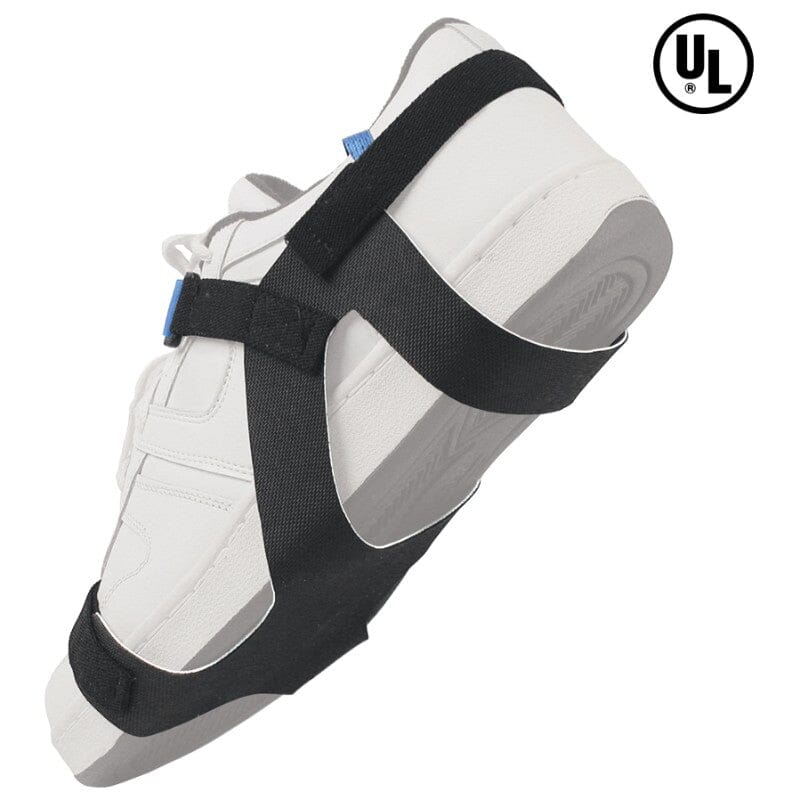

Desco 17290 Premium Full Coverage Foot Grounder, Two Meg Resistor, Small

Desco Premium Full Coverage Foot Grounder Features:

• Full Coverage Foot Grounder
Converts non-ESD footwear to footwear that will provide a path-to-ground and will not generate a charge.*
• Tab to Cup Resistance: 1 x 10⁶ to < 1 x 10⁷ ohms at 100 volts
Meets the ANSI/ESD S20.20 required limit tested per ESD SP9.2 & ESD TR53 suitable ESD footwear component in personnel grounding flooring/footwear system.
• Contact Points on Ball and Heel Area
Remains in contact with the floor (path-to-ground) through a normal walking motion and in situations where both heels may be off the ground.
• 3 Sizes (S, M, L) with D-Ring Adjustment System
Allows for a comfortable fit with most styles and sizes of shoes.
• Tear Resistant rubber Material with Reinforced Inner Scrim
Prevents tearing - increasing the service life of foot grounder
• Non-Marring Interior Material
Will not leave marks on operator’s shoes.
• 18 Inch Conductive 8-Strand Nylon Polyester Grounding Tab
Additional conductive material provides reliable connection with operator’s sweat-layer.
• UL Listed
Independently reviewed for adequacy of the products design.
• Made In the United States of America

Technical Information
