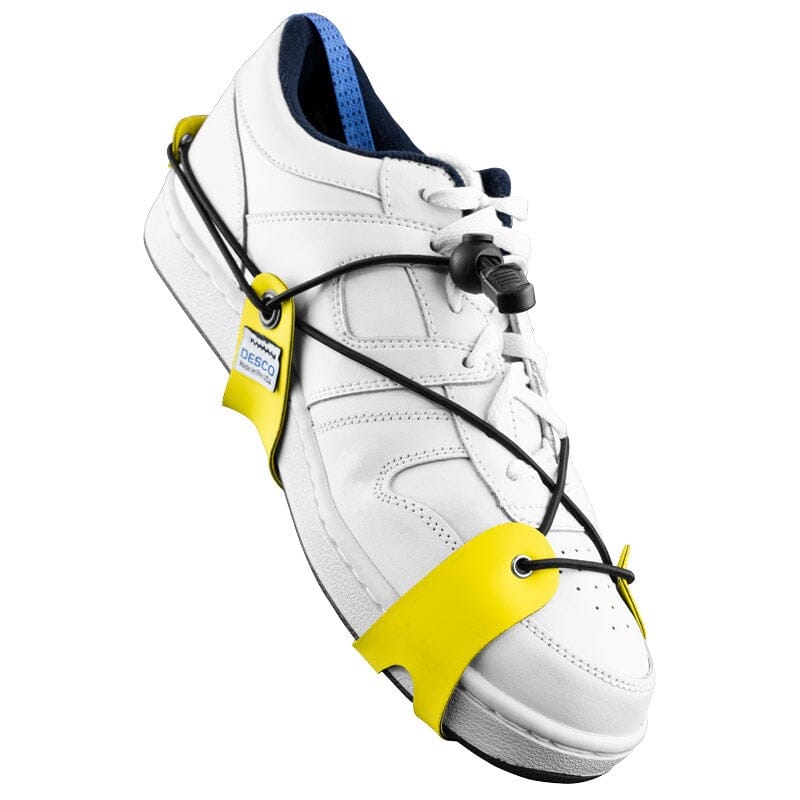

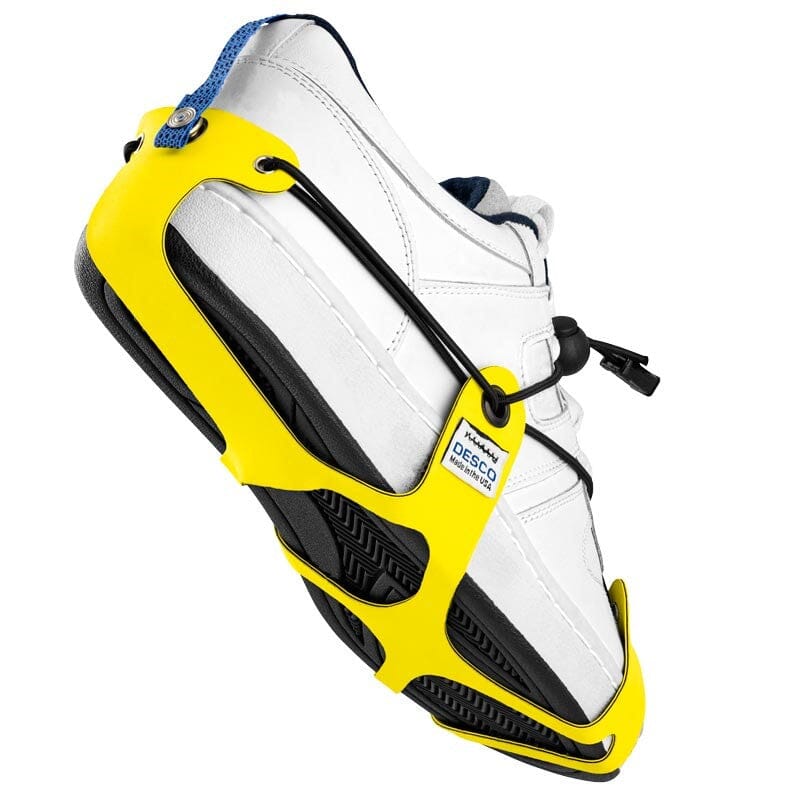

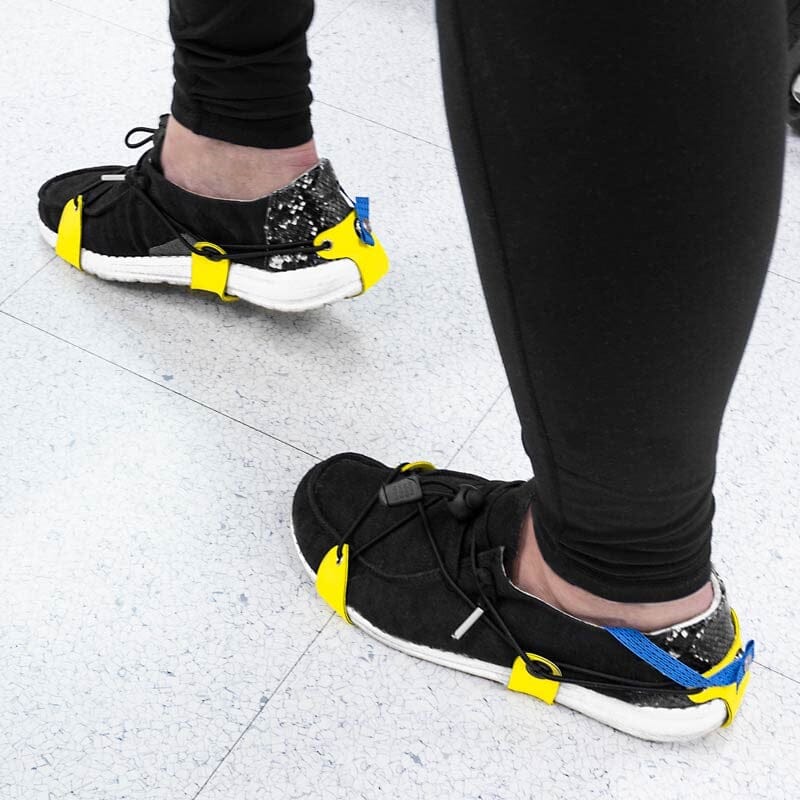

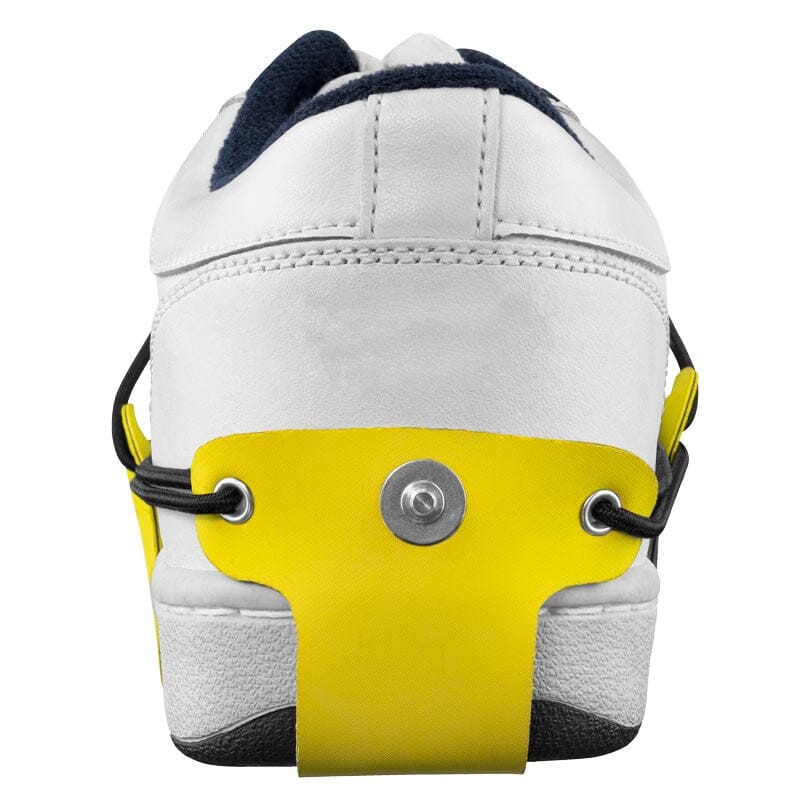

Desco 17255 Shock Cord Foot Grounder, Small/Medium

Desco Shock Cord Foot Grounder Features:

• Shock Cord Full Coverage Foot Grounder
  Converts non-ESD footwear to footwear that will provide a path-to-ground and will not generate a charge.¹
• Elastic Shock Cord Attachment System²
  Stretches over shoes for a comfortable fit with most styles and sizes of shoes. See sizing chart

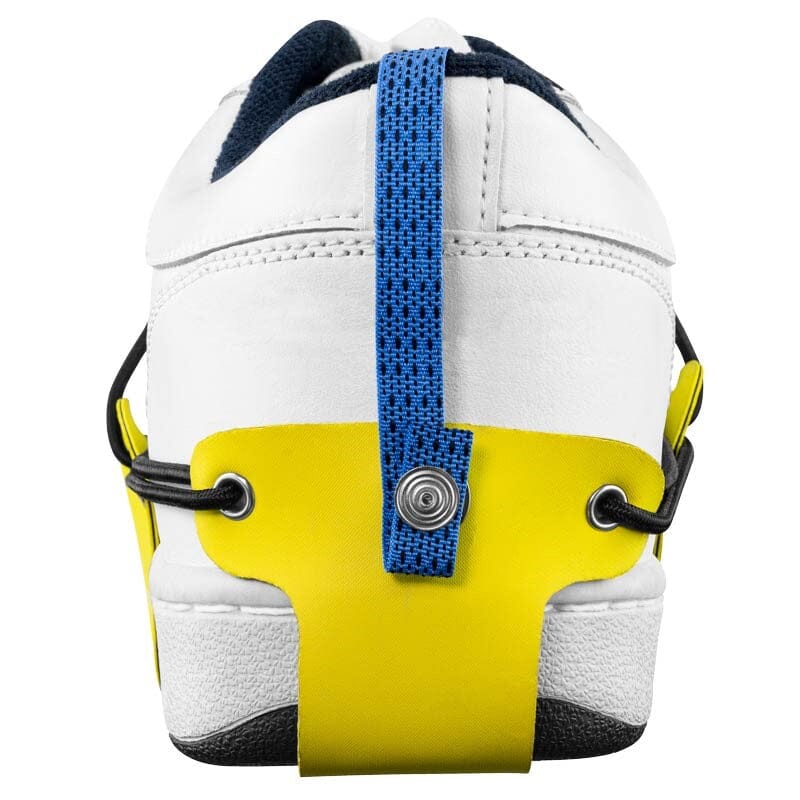

• Replaceable Conductive 8-Strand Nylon Polyester Grounding Tab
  Improves hygiene and provides reliable connection with operator’s sweat-layer.
• Walking Voltage Generation <60 Volts Tested per ANSI/ESD STM97.2
  Meets the ANSI/ESD S20.20 requirement for use as an ESD footwear component in personnel grounding flooring/footwear system.
• Tab to Cup Resistance: 1 x 10⁶ to < 1 x 10⁷ ohms at 100 volts
  Meets the ANSI/ESD S20.20 required limit tested per ESD SP9.2 & ESD TR53 as suitable ESD footwear component in personnel grounding flooring/footwear system.
• Contact Points on Ball and Heel Area
  Remains in contact with the floor (path-to-ground) through a normal walking motion and in situations where both heels may be off the ground.
• Non-Marring Material
  Will not leave marks on floors (or operator’s shoes); reducing maintenance costs of touching up on floors.
• UL Listed
  Independently reviewed for adequacy of the product’s design
• Made in the United States of America

Technical Information
