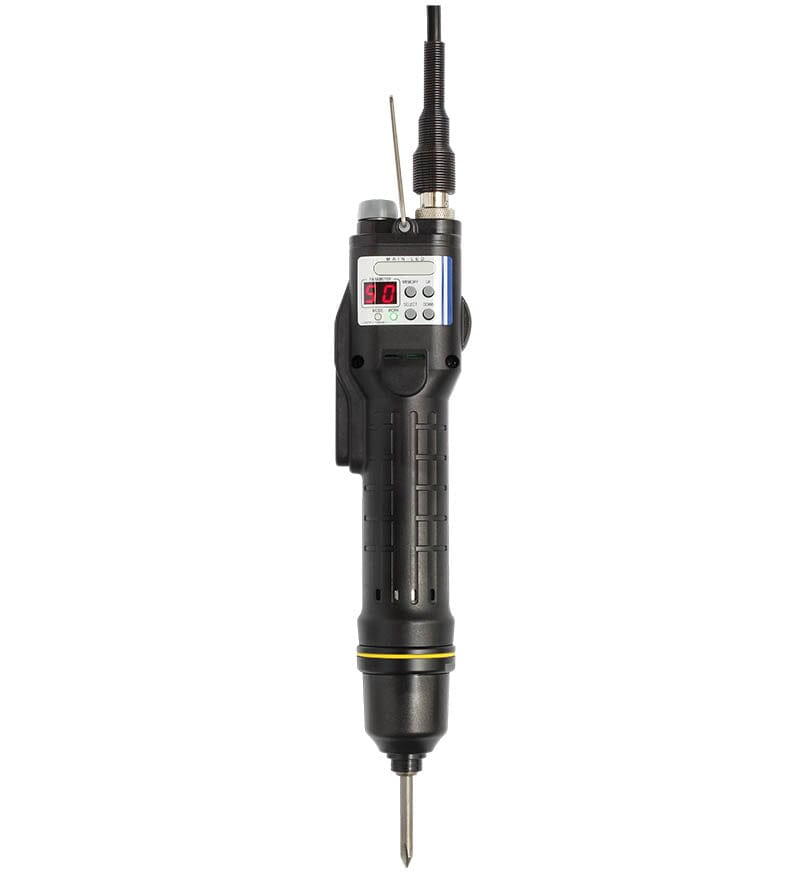

Delvo S-Series DLV30S06L-AYK Variable Speed Torque Driver, 3.5 - 26.6 Lb-in, Lever Start, Low Speeds

Features:

• High power brushless motor
• Adjustable speed control for machine or tapping screws
• Programmable three stage speed control
• Built-in screw counting function
• Configures setting with optional remote controller
• ESD(electrostatic discharge) protected housing
• Detachable power cord for easy maintenance
• Power supply model DEA015IN-AZ or DEA0241N-AZ (sold separately) is required to operate this tool

Programmable 3-Stage Speed Control (160 - 650 RPM)

• Soft start allows the smooth insert of screw, minimizing the chance of screw bit's cam-out or cross threading.
• High speed driving increases productivity.
• Soft finish reduces the impact of rotational speed to torque, minimizing the chance of damaging or scraping the base material surface.

Wide Range of Speed Selection

• Wide range of speed selection allows the optimum speed setting in various fastening conditions.
• Very slow driving avoids damaging the thread of thin sheet metal or heat sensitive material.

Automatic Reverse Setting

• The driver is programmable to reverse the rotational direction or stop the motor either when achieving a pre-set torque, or a pre-set time.
• The function can be utilized for threaded hole inspection and pre-refastening to final fastening in a programmed sequence.

Batch Counting with Pass/Fail Report

• Built-in screw counter counts the number of valid fastenings per batch.
• Fastening time of each screw is precisely monitored for pass or fail judgement with real time feedback. It detects invalid fastenings by cross threading, floating screw, wrong screw and stripped thread.
• The tool provides separate audible tones and sends out status signal to external devices.

Setting Configuration via Remote Controller with Security Option

• Settings for multiple tools can be configured at once via remote controller.
• Key lock avoids tampering on settings and extra security is assured with password requirement for tool activation.

Signal Communication with Other Devices

• The tool has signal I/O terminal port to communicate with other devices such as sensors, signal lamp.
• By communicating with a sensor, the screwdriver runs only when the workpiece is in a designated place, and you can take it out of the place only after all the screw are fastened correctly. Otherwise, it will generate an NG signal.


High Performance, Functional and Reliable Design

Brushless motor

• Carbon-dust-free, clean environment
• Low maintenance, extensive operation life
• Powerful motor maintains the rotational speed over driving load

ESD Safe

• Protects electric parts from ESD damage
