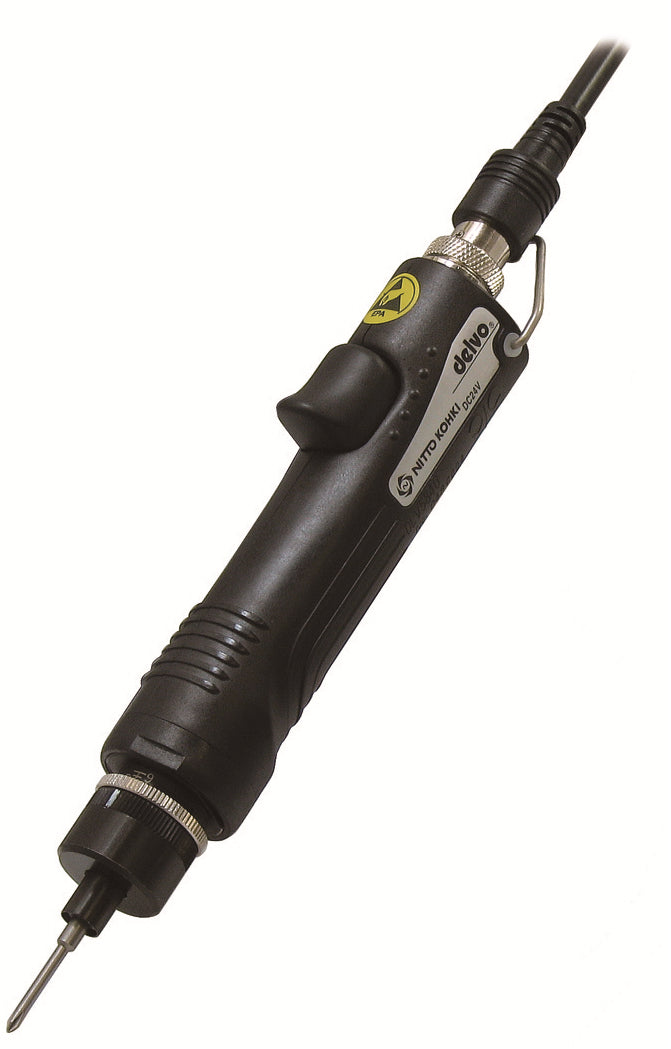

Delvo DLV5840U Compact & Lightweight ESD Model Torque Driver

Delvo DLV5800 Series responds to the needs of cell production systems with space-saving screwdrivers. The controller is lightweight and space-saving size.

Features:

• Clear disengagement of clutch (shock-less mechanism unavailable)
• Ergonomic start lever
• Precision holder reduces bit movement during use
• Complied with EN1000015-1 standard
• Grounded bit system standard (within a built-in 1 Mega ohm resistor)(DLC0350LU)

Specifications:

• Torque range: 1.3 to 3.5 In/lb (0.15 - 0.40 Nm)
• Free speed - 450 to 600 RPM
• Screw sizes - #1 or #3
• Power consumption - 10 W
• Input Voltage - 40 V DC
• Controller model DLC0350LU is required to operate this tool

Delvo DL5800 Series Specifications

Torque Diagram:

Standard Accessories:

• Connection Cable (60”): 1 pc.
• Spring for Low Torque (Silver): 1 pc.
• Suspension Bail: 1 pc.
• Connection Cable (60”) : 1 pc

Optional Accessories:

Sleeve	Vacuum Pickup DLP5300 (TD04342)	Torque Adjustment Ring Cover TD02875
