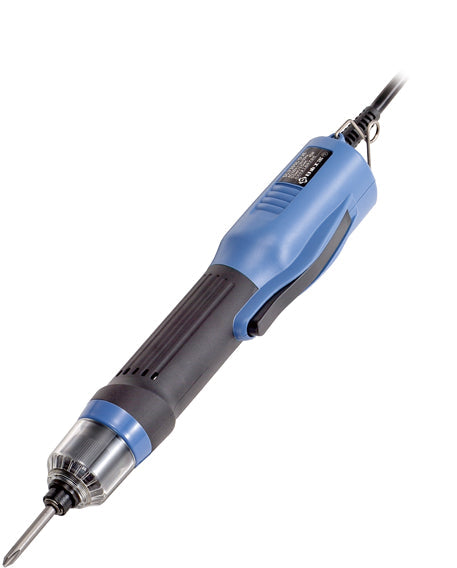

• Delvo DLV45SL-IKU Brushless Torque Driver, 1/4" Hex, Lever Start, w/Adjustable Speed
1 1

Delvo

Delvo DLV45SL-IKU Brushless Torque Driver, 1/4" Hex, Lever Start, w/Adjustable Speed

Delvo DLV45SL-IKU Brushless Torque Driver, 1/4" Hex, Lever Start, w/Adjustable Speed

SMT DLV45SL-IKU

$795.00
$795.00
Sale Sold out
Shipping calculated at checkout.

Features

  • Brushless motor and newly designed clutch provide a more consistent torque output over the life of the tool
  • Any of the three models can be operated by a standard controller, allowing a wide range of torque from 3.5 - 39.8 Lb-in and max speeds of 650, 1,200, and 2,000 rpm
  • Series lineup consists of Standard speed (Blue, 1,200 rpm) and low speed (Yellow, 650 rpm) with respective torque ranges of 17.7 - 39.8 Lb-in (DLV45)
  • Torque ring cover prevents unintentional changes in the preset torque amount (DLV45)
  • Detachable Pistol Grip comes as standard accessory (DLV45)
  • Grounded bit system standard

Specifications

Electric Screwdriver
Model Starting

Method		 *1Adjustable

Speed Range

rpm		 *1Free Speed

at Soft Start

rpm		 *1Adjustable

Soft Start Time

sec		 Torque

Lb-in(Nm)
Low Torque Spring

(Standard Accessory)		 High Torque Spring

(installed)
DLV30LL-IKU Lever Start 390 - 650 260 0 - 2 3.5 - 14.2

(0.4 - 1.6)		 10.6 - 26.6

(1.2 - 3.0)
DLV30SL-IKU 720 - 1,200 480
DLV30HL-IKU 1,200 - 2,000 800
DLV30LP-IKU Push to Start 390 - 650 260
DLV30SP-IKU 720 - 1,200 480
DLV30HP-IKU 1,200 - 2,000 800
DLV45LL-IKU Lever Start 390 - 650 260 17.7 - 39.8

(2.0 - 4.5)
DLV45SL-IKU 720 - 1,200 480
DLV45LP-IKU Push to Start 390 - 650 260
DLV45SP-IKU 720 - 1,200 480

*1 : Values are obtainable in combination with control unit DLR70S-WUB or DLC70S-WUB.



Electric Screwdriver
Model Screw Size(for reference) Weightlbs(g) Bit Input Voltage Power ConsumptionW
inch thread metric coarse thread
DLV30LL-IKU #3 - #11 2.6 - 5.0 mm 1.58 (720) Hex 1/4” 40 V DC 77
DLV30SL-IKU
DLV30HL-IKU
DLV30LP-IKU
DLV30SP-IKU
DLV30HP-IKU
DLV45LL-IKU #9 - #13 4.5 - 6.0 mm 1.91 (870)
DLV45SL-IKU
DLV45LP-IKU
DLV45SP-IKU

Torque Diagram

Standard Controller for DLV30/45-IKU Series Drivers

**Not included - Must be purchased seperately**





Part Number DLC70S-WUB
Input Voltage 100 - 240 V AC, 50/60 Hz
Function Grounding, Soft Start, Speed Control
Signal Output(contact point type) Start, Torque up, Reverse(Dry contact)
Signal Input Drive Stop Function

(DC 24 V Input Voltage needed)
Weight lbs(kg) 3.96 (1.8)
Size W×L×H in(mm) 5.28” × 11.88” × 2.68”(132 × 297 × 67)
Standard Accessories Power cord(80”): 1

Rubber feet: 4

Fuse(5 A): 1

Optional Controller/Counter for DLV30/45-IKU Series Drivers

**Not included - Must be purchased seperately**

Part Number DLR70S-WUB
Input Voltage 100 - 240 V AC, 50/60Hz
Speed Control Function 60 - 100 %
Soft Start Function 0 - 2 sec.
Count 0 - 99
Allowable Number of Screw

Fastening Programs		 4
Counting Method Count-up / Count-down
Count Correction Function Count normal fastening only
Self Adjustable Timer Setting 0.01 to 0.99 sec.
OK Output Timer Setting 0 to 9.5 sec.
Count Back Function ON / OFF
OK / NG Buzzer ON / OFF
Input Signal WORK / RESET / LINK-IN /

CH1 / CH2 / TORQUE CHECK
Output Signal OK / NG / LINK-OUT / TORQUE UP
Weight lbs(kg) 5.07 (2.3)
Size W x L x H in(mm) 5.24” × 12.8” × 3.15” (133 × 325 × 80)
Standard Accessories Power cord (80”): 1

Fuse (5 A): 1

Standard Accessories

For DLV45
  • Bit No.2 × 7 × 75: 1 pc.
  • Suspension Bail: 1 pc.
  • Pistol Grip (DLW2300)
