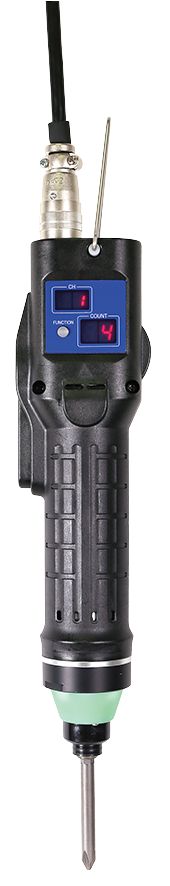

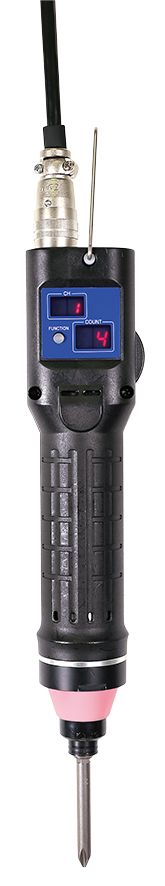

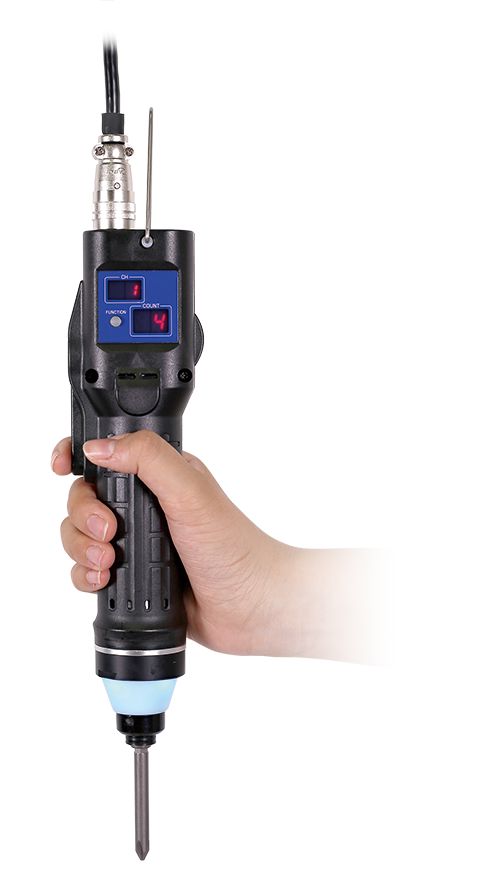

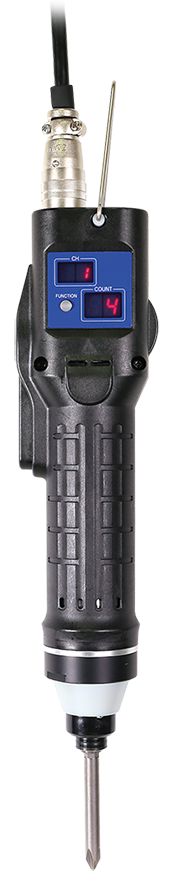

Delvo DLV45C Current Control Brushless Type Torque Driver, Multiple Speeds, 5.3 - 39.8 Lbf-in Torque Range
Delvo DLV45C Current Control Brushless Type Torque Driver, Multiple Speeds, 5.3 - 39.8 Lbf-in Torque Range
SKU:SMT DLV45C12L-AYK
Couldn't load pickup availability
Delvo DLV45C Brushless Electric Screwdriver – Lever Start or Push-to-Start
The Delvo Model DLV45C Brushless Electric Screwdriver by Nitto Kohki is a high-precision, programmable fastening tool designed for electronics, automotive, medical device, and industrial assembly lines. With its current-controlled torque system, this driver ensures repeatable torque accuracy and enables operators to store up to 30 programmable torque settings for flexible, multi-process applications.
Available in Lever Start or Push-to-Start models, the DLV45C can be used as a handheld driver or mounted to a robotic arm for automated production. The LED color indicator provides job status feedback and tool identification, while the built-in screw counting function enhances productivity and quality assurance by tracking fastening operations in real time.
Powered by a maintenance-free brushless motor, the DLV45C delivers long service life, reduced wear, and efficient performance in high-volume environments.
Key Features
- Current-controlled torque system for accurate, programmable fastening
- Stores up to 30 programmable torque settings
- Available in Lever Start or Push-to-Start models
- Handheld or robotic arm mountable for flexible integration
- LED color indicator for job status and tool identification
- Built-in screw counting function for productivity and QC monitoring
- Brushless motor for efficiency, durability, and low maintenance
- Wide torque range suitable for multiple industries
- Low noise and vibration for operator comfort
- Ergonomic, lightweight design reduces fatigue
Technical Specifications
- Model: DLV45C
- Type: Brushless Electric Torque Driver
- Torque System: Current-Controlled with Programmable Settings
- Start Options: Lever Start or Push-to-Start
- Mounting Options: Handheld or Robotic Arm Compatible
- Torque Range: 5.3 – 39.8 lbf·in (0.6 – 4.5 N·m)
- Rotation Speed: 400 – 1200 RPM
- Torque Settings: Up to 30 programmable torque values
- Indicators: LED Color Display for job status & tool identification
- Functions: Built-in Screw Counting System
- Drive Type: 1/4" Hex
- Power Requirement: DC 24V, 3.5A
- Controller Unit: Delvo DCC0241X-AZ (Required/Sold Separately)
- Manufacturer: Nitto Kohki (Delvo Series)
Product Videos
Product Brochure
Delvo Brushless Type C-Series (Current Control) PDF
Enhance quality and productivity with the Delvo DLV45C Brushless Torque Driver. Featuring a current-controlled torque system, 30 programmable torque settings, LED indicators, and a built-in screw counting function, it’s the perfect solution for modern assembly lines.
