• Delvo DLV30LL-IKU Brushless Torque Driver, 1/4" Hex, Lever Start, w/Adjustable Speed
1 1

Delvo

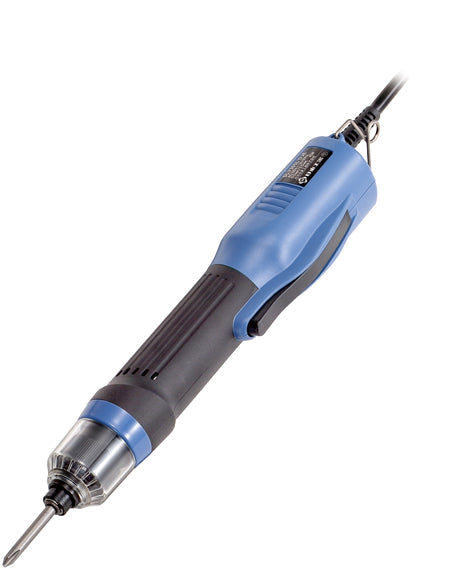

Delvo DLV30LL-IKU Brushless Torque Driver, 1/4" Hex, Lever Start, w/Adjustable Speed

Delvo DLV30LL-IKU Brushless Torque Driver, 1/4" Hex, Lever Start, w/Adjustable Speed

SMT DLV30LL-IKU

$625.00
$625.00
Sale Sold out
Shipping calculated at checkout.

Delvo Electric Screwdrivers

Features

  • Brushless motor and newly designed clutch provide a more consistent torque output over the life of the tool
  • Any of the three models can be operated by a standard controller, allowing a wide range of torque from 3.5 - 39.8 Lb-in and max speeds of 650, 1,200, and 2,000 rpm
  • Torque ring cover prevents unintentional changes in the preset torque amount (clear cover on DLV30 series)
  • Grounded bit system standard




Torque Diagram

Standard Controller for DLV30/45-IKU Series Drivers

**Not included - Must be purchased seperately**

Part Number DLC70S-WUB
Input Voltage 100 - 240 V AC, 50/60 Hz
Function Grounding, Soft Start, Speed Control
Signal Output(contact point type) Start, Torque up, Reverse(Dry contact)
Signal Input Drive Stop Function

(DC 24 V Input Voltage needed)
Weight lbs(kg) 3.96 (1.8)
Size W×L×H in(mm) 5.28” × 11.88” × 2.68”(132 × 297 × 67)
Standard Accessories Power cord(80”): 1

Rubber feet: 4

Fuse(5 A): 1

Optional Controller/Counter for DLV30/45-IKU Series Drivers

**Not included - Must be purchased seperately**

Part Number DLR70S-WUB
Input Voltage 100 - 240 V AC, 50/60Hz
Speed Control Function 60 - 100 %
Soft Start Function 0 - 2 sec.
Count 0 - 99
Allowable Number of Screw

Fastening Programs		 4
Counting Method Count-up / Count-down
Count Correction Function Count normal fastening only
Self Adjustable Timer Setting 0.01 to 0.99 sec.
OK Output Timer Setting 0 to 9.5 sec.
Count Back Function ON / OFF
OK / NG Buzzer ON / OFF
Input Signal WORK / RESET / LINK-IN /

CH1 / CH2 / TORQUE CHECK
Output Signal OK / NG / LINK-OUT / TORQUE UP
Weight lbs(kg) 5.07 (2.3)
Size W x L x H in(mm) 5.24” × 12.8” × 3.15” (133 × 325 × 80)
Standard Accessories Power cord (80”): 1

Fuse (5 A): 1

Standard Accessories

For DLV30
  • Bit No.2 × 7 × 75: 1 pc.
  • Suspension Bail: 1 pc.
  • Low Torque Spring: 1 pc.

Optional Accessories
