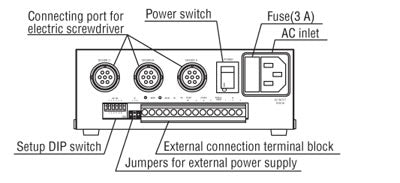

Delvo DLR5340A-WU Screw Fastening Counter/Controller for DLV30/45-SPC Series Drivers
DLR5340-WU Screw Fastening Counter/Controller for DLV30/45-SPC Series Screwdrivers
|Count||0 - 99|
|Counting Method||Count-up / Count-down|
|Count Correction Function||Count normal fastening only|
|Self Adjustable Timer Setting||0.01 to 2.50 sec.|
|Work Detection Function||Yes (1 terminal) / No|
|Work Installation Timer Setting||0 to 9.5 sec.|
|OK Output Timer Setting||0 to 9.5 sec.|
|NG Alarm||ON(1) / ON(2) / OFF|
|OK Buzzer||ON(1) / ON(2) / ON(3) / ON(4) / ON(5) / OFF|
|Count Return Function||ON / OFF|
|Screwdriver Lock Function||ON / OFF|
|Screwdriver Cord Connection||Single cord connection (Signal and power lines)|
|External Inputs on Terminal Block||SENSOR / RESET / TORQUE CHECK ch1/2/3|
|External Outputs on Terminal Block||OK, NG, COUNT-UP, DRIVER A/B/C|
|Input Voltage||100 - 240 V AC, 50/60 Hz See the bottom asterisk.*1|
|Size W × L × H in(mm)||5.94” × 5.51” × 2.36” (151 × 140 × 60)|
|Weight lbs(kg)||1.76 (0.8)|
*1 : The voltage of the dedicated screwdrivers for DLR5040A-WU and DLR5340-WU is 115 V. When you need different voltage screwdrivers, please contact Nitto Kohki U.S.A.
When counters are connected and activated in the screw fastening sequence as shown below, all screwdrivers are on standby except the first one in the sequence. Only when the first screw fastening is finished, can the next screwdriver change from standby to ready. When the last fastening in the sequence is finished, the first screwdriver is once again ready and the sequence can be repeated again.
Up to 10 screwdriver/counter sets can be connected to the LINK.
