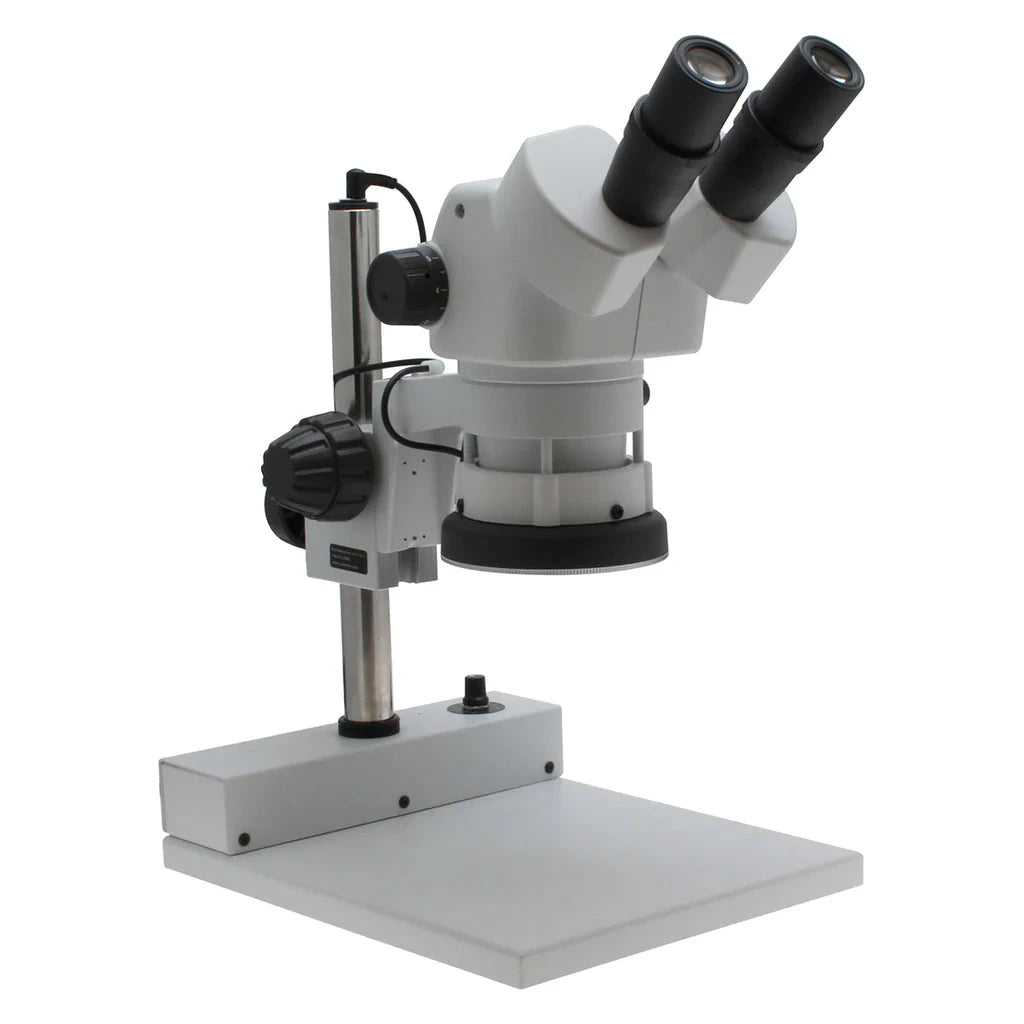

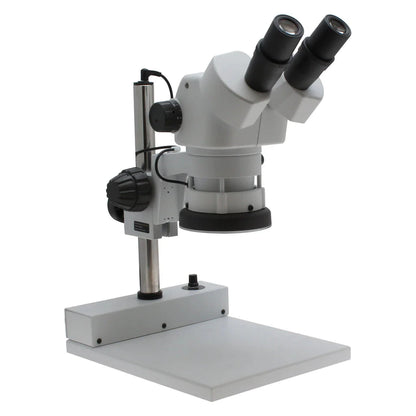

Aven SPZ-50 Stereo Zoom Binocular Microscope on a Post Stand w/Integrated LED Light
Aven SPZ-50 Stereo Zoom Binocular Microscope on a Post Stand w/Integrated LED Light
SKU:SMT 26800B-371
Regular price
$2,969.41
Regular price
Sale price
$2,969.41
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Aven Stereo Zoom Binocular Microscope SPZ-50 on Pole Stand with Integrated LED Light, 6.7x–50x
The Aven SPZ-50 Stereo Zoom Binocular Microscope offers 6.7x–50x magnification, a 108 mm working distance, and 60-LED dimmable illumination for sharp, shadow-free viewing. Built on a sturdy pole stand, it’s ideal for electronics assembly, inspection, research, and quality control.
Overview
The Aven SPZ-50 combines superior optics, ergonomic viewing, and bright, even illumination in a stable pole-stand configuration. Its continuous zoom and long working distance make it a dependable microscope for precision tasks in labs, production lines, and training environments.
Key Features

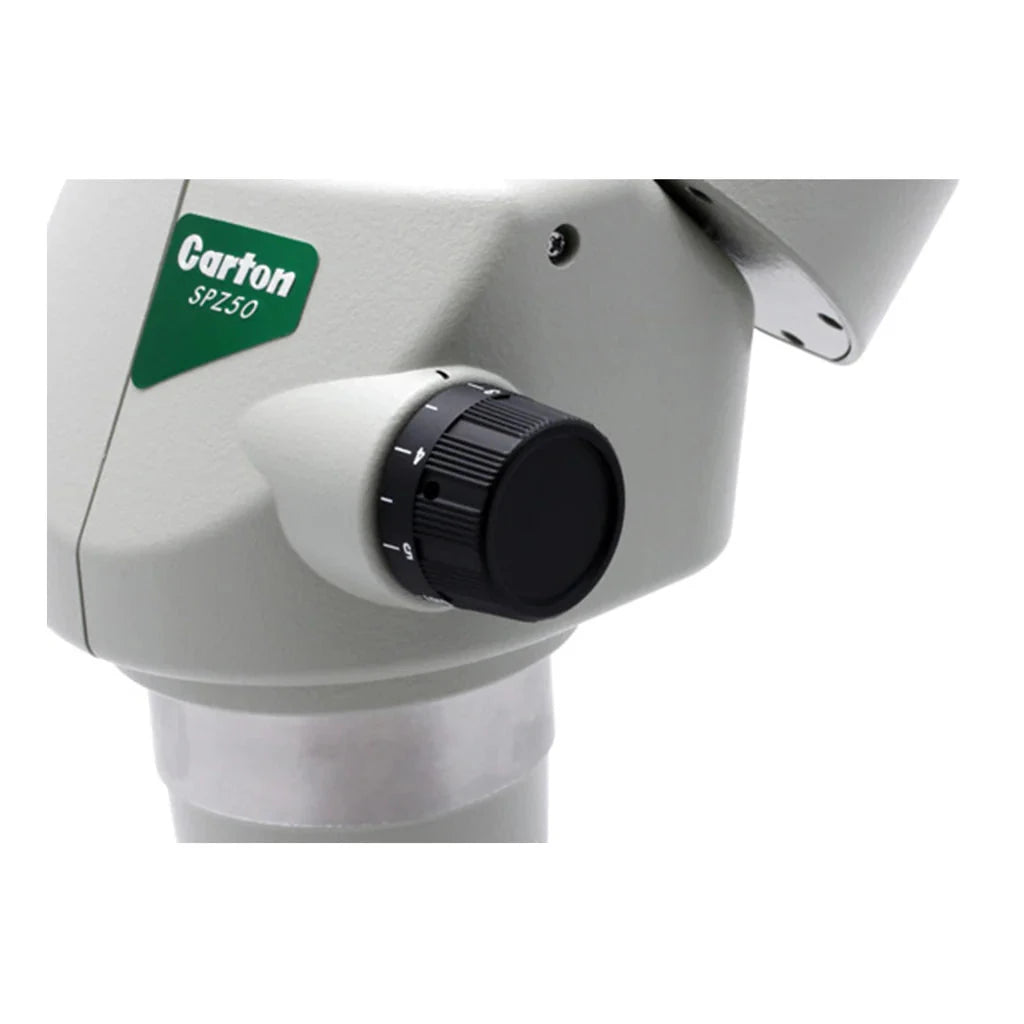

- Magnification Range: 6.7x–50x continuous zoom (objective 0.67x–5.0x)

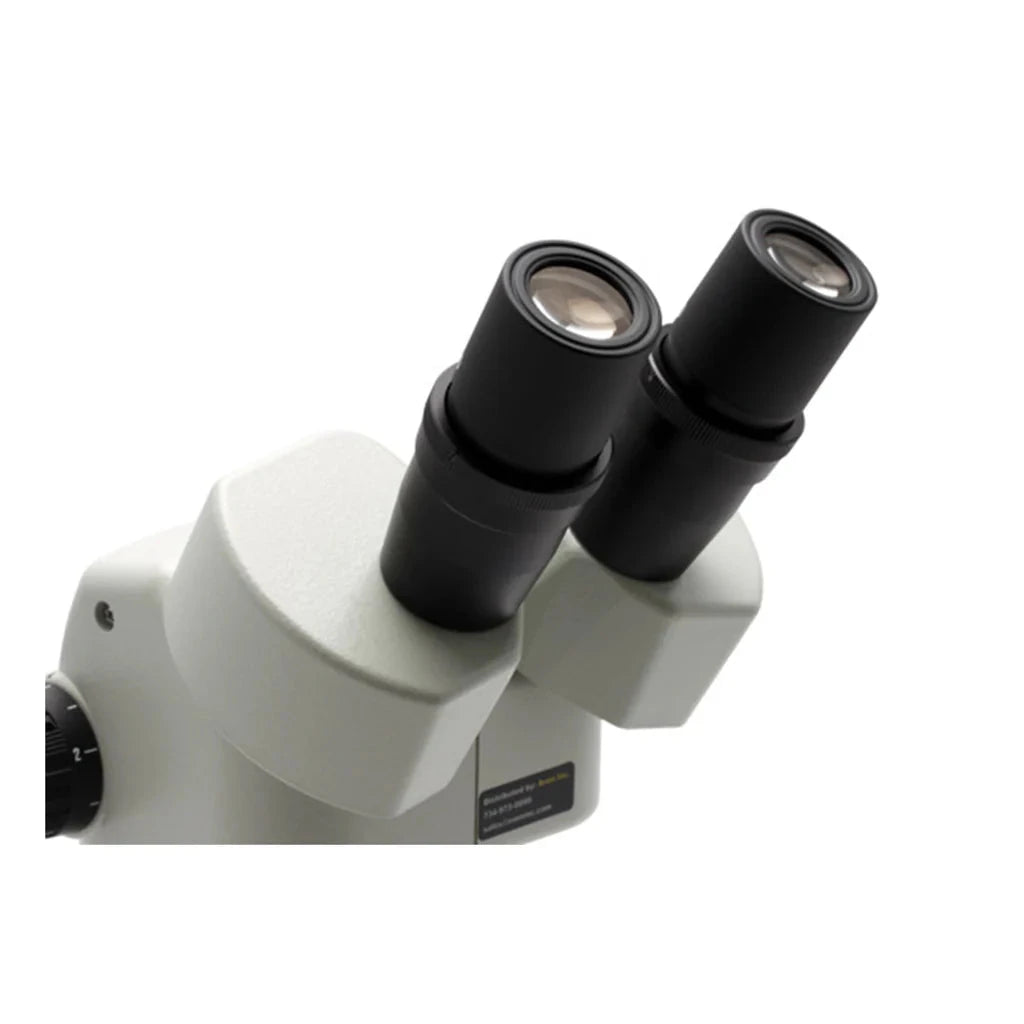

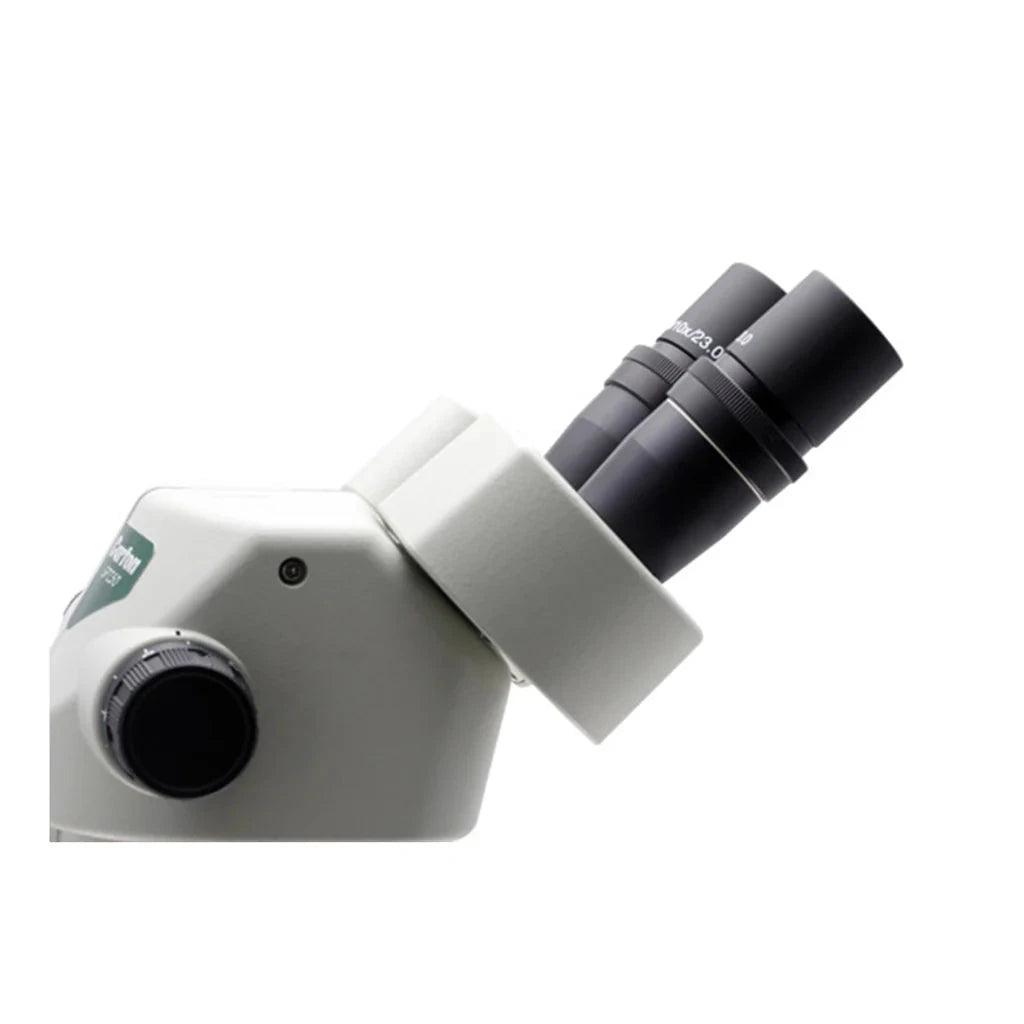

- Widefield Eyepieces: 10x (FN 23), 45° inclined; comfortable, ergonomic viewing
- Zoom Ratio: 7.46:1 for smooth, precise magnification changes
- Working Distance: 108 mm (4.25") to handle samples and tools with ease

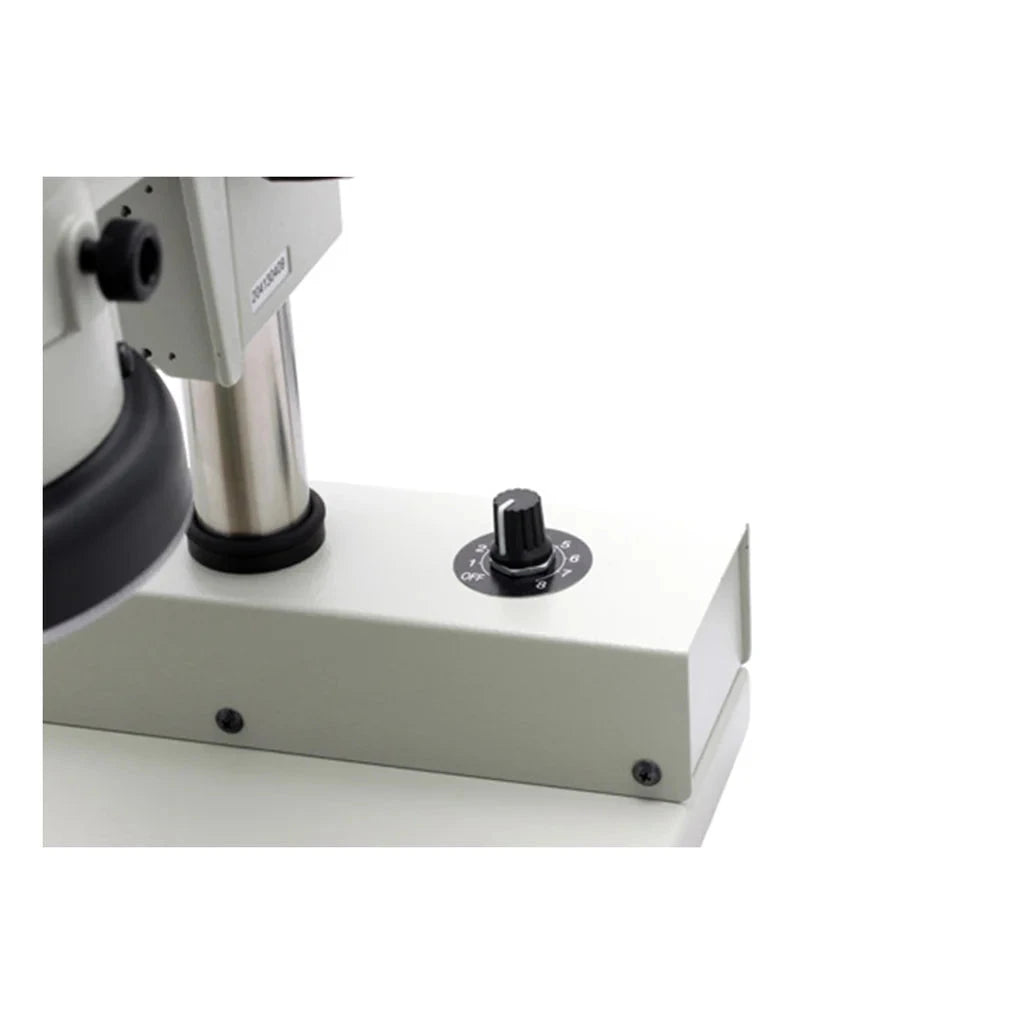

- Integrated Illumination: 60 white LEDs with dimmer control for even, shadow-free light
- Binocular Head / Optics: Greenough optical system; 52–75 mm interpupillary range
- Diopter Adjustment: ±7.2 D in both eyepiece tubes
- Stable Pole Stand: 220 × 284 mm base; 250 mm (9.84") pole height
Specifications
| Model | Aven SPZ-50 Stereo Zoom Binocular Microscope |
| Part Number | 26800B-371 |
| Body | Binocular |
| Eyepieces | 10x Wide Field (FN 23), 45° inclined |
| Objective Lens | 0.67x to 5.0x zoom |
| Magnification | 6.7x to 50x |
| Working Distance | 108 mm (4.25") |
| Zoom Ratio | 7.46:1 |
| Field of View | 34.3 mm to 3.6 mm |
| Interpupillary Distance | 52 to 75 mm |
| Diopter Adjustment | ±7.2 D (both eyepiece tubes) |
| Optical System | Greenough |
| Stand Type | Pole stand with built-in 60 white LED illuminator and dimmer control |
| Base Dimensions | 220 × 284 mm |
| Pole Height | 250 mm (9.84") |
| Stage Plate | None |
| Power (LED Stand) | 100–240 V AC, 50/60 Hz |
| Weight | 15 lbs |
What’s Included
- SPZ-50 Microscope Body
- Pole Stand with Integrated LED Illumination (P/N 26800B-512)
- Pair of 10x Widefield Eyepieces
- Dust Cover
- Rubber Eye Guards
- Tension Control Pin
- Power Supply & User Guide
Optional Accessories
- Auxiliary Lenses: 0.75x, 1.6x, 2.0x
- Eyepieces: 10x, 15x, 20x, and 10x with scale
- Protective Lens Cover
- Ring Light Adapter
