Aven Tools

Aven Mighty Scope ClearVue Digital Microscope with 34" Spring Balanced Arm & Diffuser

Aven Mighty Scope ClearVue Digital Microscope with 34" Spring Balanced Arm & Diffuser

SMT 26700-220-559D

$748.13
$787.51 $748.13
Sale Sold out
Shipping calculated at checkout.

The Aven Mighty Scope ClearVue has a built in 5" high resolution LED screen and offers a magnification range of 8x -25x. The included rechargeable battery allows you to operate the microscope without a power supply for hours thus making it suitable for field projects. You can also connect this microscope to an external monitor via an HDMI output for viewing images on a larger screen. Images can be saved on the included Micro SD card. Can also be mounted onto a variety of stands to suit your application.

Includes Aven's Spring Balanced Arm.  This arm can be raised, lowered, and tilted as needed.  The swivel motion makes it easy to move the ClearVue out of the way when not in use.

Includes a Diffuser Attachment, designed to disperse even and soft illumination. Ideal for inspecting shiny or reflective parts.  For best results, the recommended working distance while using the diffuser is 2.5 inches to 3.5 inches.

Features:

  • Compact All-in-one system
  • 1080p Full HD Imaging at 60 FPS

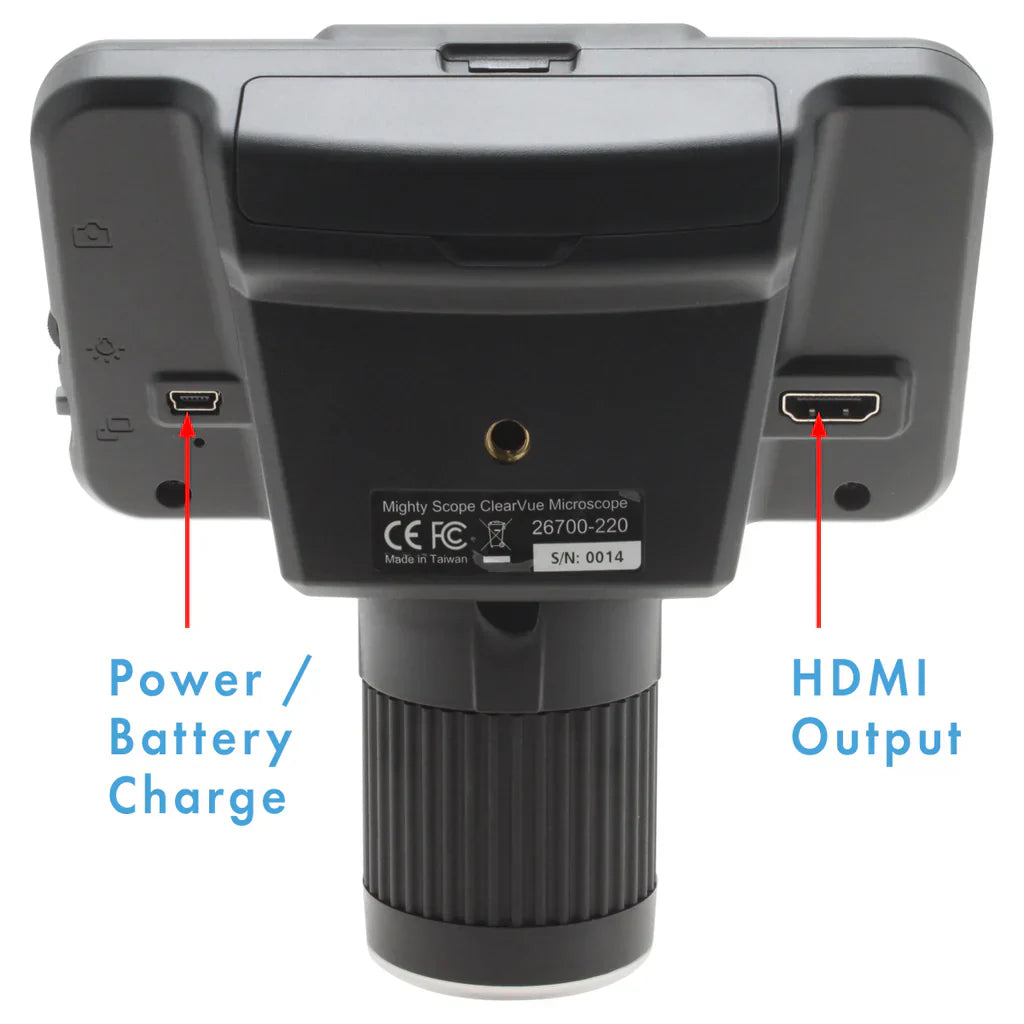

  • HDMI Output for additional monitor viewing
  • ezImageX3 software included
  • Enhances productivity - eliminates eye strain and body fatigue
  • 5" built-in HD screen
  • Save high resolution image/video files directly to microSD card
  • 1080p Full HD Output
  • Diffuser attachment included.  Reduces glare and hot spots from reflective items

Applications:

  • Precision assembly applications
  • Quality control
  • Production applications
  • Electrical inspection
  • Medical device inspection
  • Aerospace
  • Educational applications
  • Research and Development

Product Flyer

Specifications:

Mighty Scope ClearVue Digital Microscope 8x-25x with Adjustable Arm
Image Sensor 1/4" 2M CMOS Sensor
Effective Pixels 1920(H) x 1080(V)
LCD Display 5" LCD Color TFT
Interface Mini USB - Type A / HDMI
Battery 2600mAh 18650 Li-ion Battery (included)
Power Supply INPUT: 100-240V - 50-60Hz 0.4A
OUTPUT: 5V---2.0A 10W Max
Software ezImageX3 Windows 10 measuring software (via download code)
Scope dimensions 145 X 148 X 78 mm
Weight Approx. 4.8 lb
Working Distance for Diffuser 2.5 - 3.5 inch (with diffuser in use)
Included contents
  • Mighty Scope ClearVue digital microscope
  • USB cable
  • Power supply
  • Snap shot remote control
  • 32gb MicroSD Card
  • 2600mAh 18650 Li-ion battery
  • User guide
  • Adjustable Spring Balanced Arm
  • Diffuser Attachment
  • Free ezImageX3 software download

Optical Data:

Mighty Scope ClearVue Magnification Info (5 inch screen)
Approx. Magnification 8x 10x 15x 20x 25x
Field Of View
  • H: 14.2mm
  • V: 8.0mm
  • H: 10.5mm
  • V: 5.9mm
  • H: 7.6mm
  • V: 4.35mm
  • H: 5.3mm
  • V: 3.0mm
  • H: 4.6mm
  • V: 2.6mm
Working Distance 95mm 73mm 56mm 46mm 45mm



Mighty Scope ClearVue Magnification Info (24 inch screen)
Approx. Magnification 40x 50x 75x 100x 120x
Field Of View
  • H: 14.0mm
  • V: 8.0mm
  • H: 10.0mm
  • V: 5.5mm
  • H: 7.5mm
  • V: 4.0mm
  • H: 5.0mm
  • V: 2.5mm
  • H: 4.5mm
  • V: 2.5mm
Working Distance 95mm 73mm 56mm 46mm 45mm
