Aven Mighty Scope ClearVue Digital Microscope 8x-25x with Diffuser, FlexArm Stand & Table Clamp

Aven Mighty Scope ClearVue Digital Microscope 8x-25x with Diffuser, FlexArm Stand & Table Clamp

SMY 26700-220-557D

$770.05
$810.58 $770.05
Sale Sold out
Shipping calculated at checkout.

The Aven Mighty Scope ClearVue Digital Microscope with Diffuser, FlexArm Stand & Table Clamp has a built in 5" high resolution LED screen and offers a magnification range of 8x -25x. The included rechargeable battery allows you to operate the microscope without a power supply for hours thus making it suitable for field projects. You can also connect this microscope to an external monitor via an HDMI output for viewing images on a larger screen. Images can be saved on the included Micro SD card. Can also be mounted onto a variety of stands to suit your application.

Using traditional microscopes for long periods can be exhausting affecting your eyes and posture. The Mighty Scope ClearVue allows you to work in a comfortable manner without having to look through eyepieces and bending. This means more throughput and efficiency.

Includes a Diffuser Attachment, designed to disperse even and soft illumination. Ideal for inspecting shiny or reflective parts. Also includes Aven's 18" FlexArm Stand with table clamp. This arm easily bends and stays put in any position.  Tilt, rotate, and position as needed.

Features:

  • Compact All-in-one system
  • 1080p Full HD Imaging at 60 FPS
  • HDMI Output for additional monitor viewing
  • ezImageX3 software included
  • Enhances productivity - eliminates eye strain and body fatigue
  • 5" built-in HD screen
  • Save high resolution image/video files directly to microSD card
  • 1080p Full HD Output

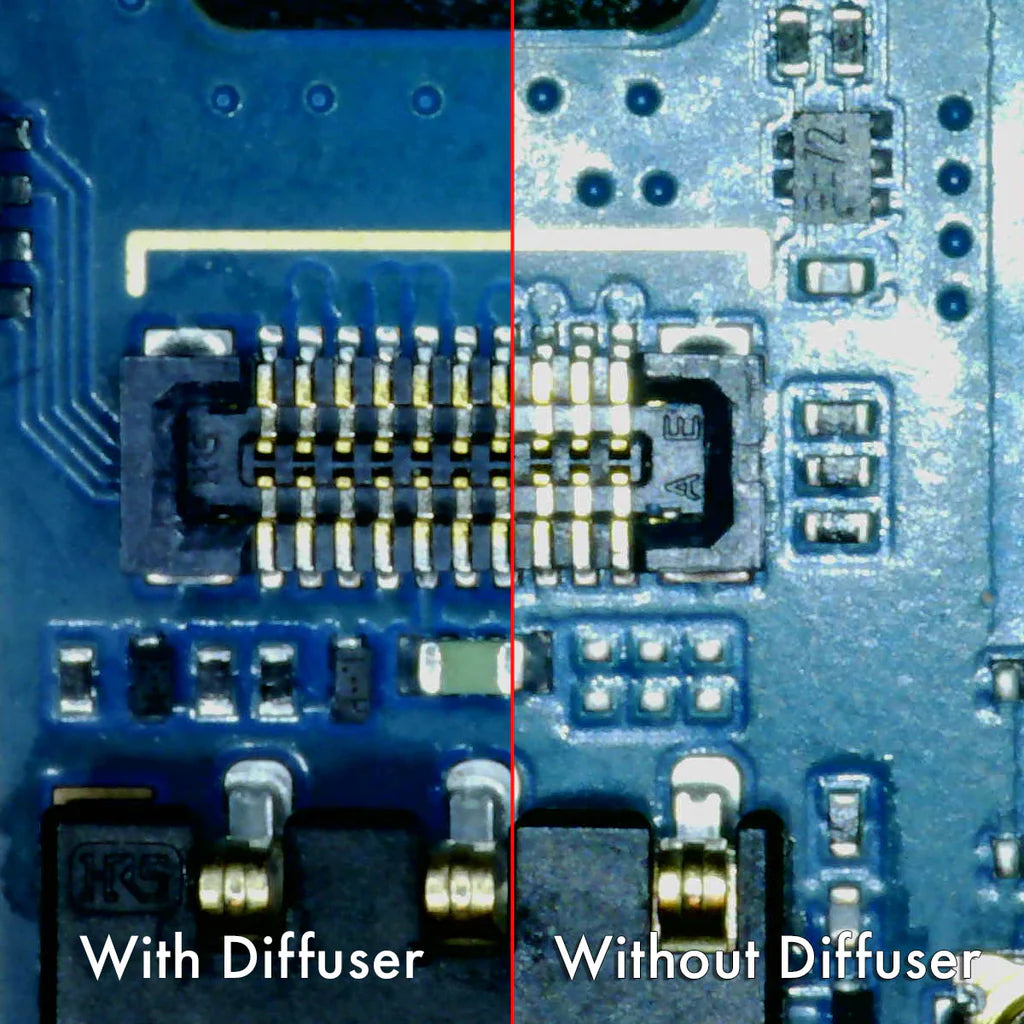

  • Diffuser attachment reduces/eliminates glare and hot spots from shiny/reflective parts

Applications:

  • Precision assembly applications
  • Quality control
  • Production applications
  • Electrical inspection
  • Medical device inspection
  • Aerospace
  • Educational applications
  • Research and Development

Product Flyer

Specifications:

Mighty Scope ClearVue Digital Microscope 8x-25x with 18" FlexArm Stand with Table Clamp and Diffuser
Image Sensor 1/4" 2M CMOS Sensor
Effective Pixels 1920(H) x 1080(V)
LCD Display 5" LCD Color TFT
Interface Mini USB - Type A / HDMI
Battery 2600mAh 18650 Li-ion Battery (included)
Software ezImageX3 Windows 10 measuring software (via download code)
Scope dimensions 145 X 148 X 78 mm
Weight Approx. 4.8 lb
Recommended Working Distance with Diffuser In Use 2.5 - 3.5 inches
Included contents
  • Mighty Scope ClearVue digital microscope
  • ClearVue Diffuser Attachment
  • USB cable
  • Power supply
  • Snap shot remote control
  • 16gb MicroSD Card
  • 2600mAh 18650 Li-ion battery
  • User guide
  • 18" FlexArm Stand with Table Clamp
  • Free ezImageX3 software download

Optical Data:

Mighty Scope ClearVue Magnification Info (5 inch screen)
Approx. Magnification 8x 10x 15x 20x 25x
Field Of View
  • H: 14.2mm
  • V: 8.0mm
  • H: 10.5mm
  • V: 5.9mm
  • H: 7.6mm
  • V: 4.35mm
  • H: 5.3mm
  • V: 3.0mm
  • H: 4.6mm
  • V: 2.6mm
Working Distance 95mm 73mm 56mm 46mm 45mm



Mighty Scope ClearVue Magnification Info (24 inch screen)
Approx. Magnification 40x 50x 75x 100x 120x
Field Of View
  • H: 14.0mm
  • V: 8.0mm
  • H: 10.0mm
  • V: 5.5mm
  • H: 7.5mm
  • V: 4.0mm
  • H: 5.0mm
  • V: 2.5mm
  • H: 4.5mm
  • V: 2.5mm
Working Distance 95mm 73mm 56mm 46mm 45mm
