Aven MicroVue Digital Microscope with 360 Viewer
Aven MicroVue Digital Microscope with 360 Viewer
SKU:SMT 26700-140-3D
Regular price
$3,415.65
Regular price
$2,469.75
Sale price
$3,415.65
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Aven's MicroVue™ Digital Microscope is an all-in-one inspection system. The MicroVue™ offers a magnification range of 17x - 110x on it's built- in 11.6" monitor and 8.6x to 221x with optional lenses.
Features:
- Built-in 11.6" monitor for ergonomic viewing
- 17x - 110x magnification (on the built-in monitor) without optional lenses
- 8.6x To 221x Magnification Range With Optional Lenses
- HDMI output for external monitor viewing
- Built-in measurement capabilities
- Save image/video files to USB storage device
- USB included

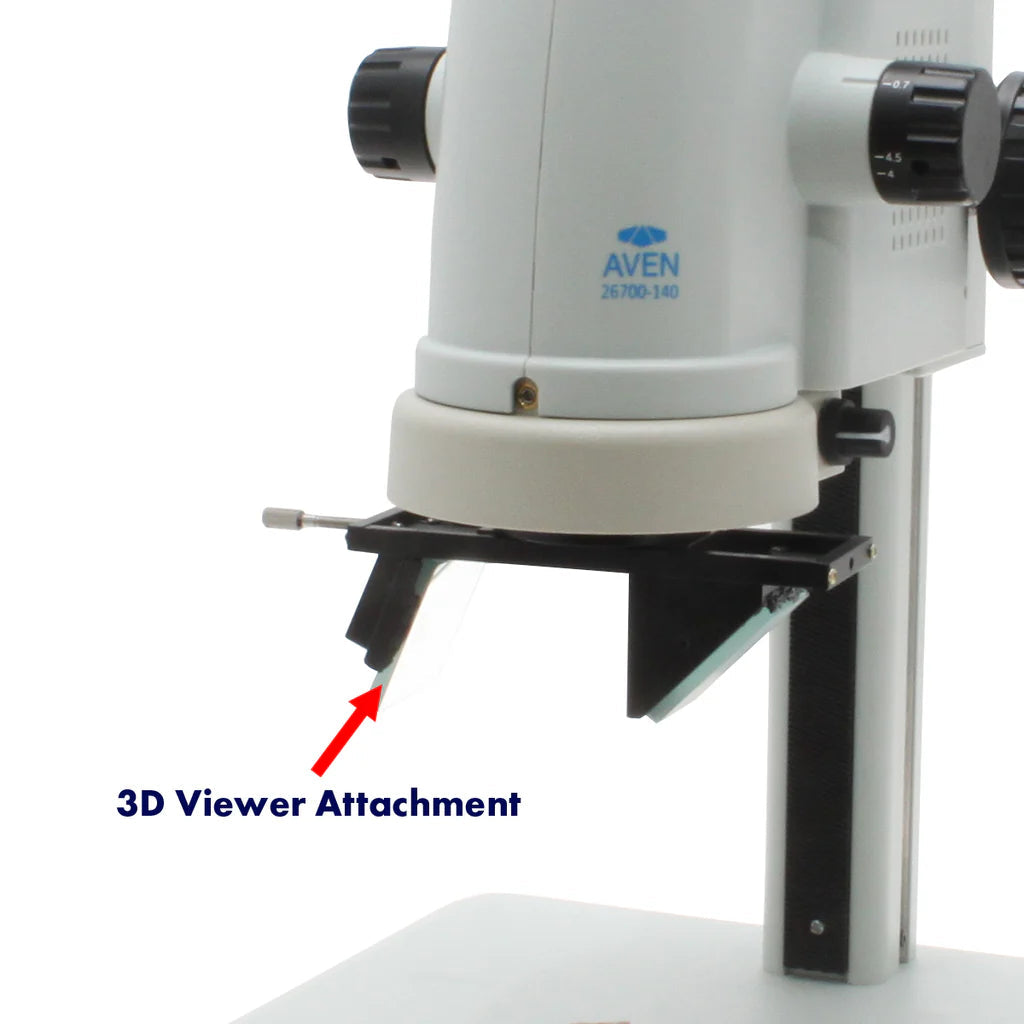

- 360 Viewer Attachment rotates to give a 35 degree angle view
- Compact design saves bench top space
| Specification | Model | 26700-140 |
| Series | Industrial HDMI Camera w/ Measurement | |
| Sensor size | 1/3” | |
| Effective pixels | Full HD | |
| Frame rate | 1920*1080P@ 60FPS | |
| Output | HDMI, USB Mouse, USB Storage | |
| Pixel size | 3.75 x 3.75μm | |
| Power | DC-12V/2A | |
| Features | Mark function | Point coordinates, Reticle |
| Coordinates, Text annotation | ||
| Length measurement | Straight length, broken line length, curve line length, distance between parallel lines, point-line distance | |
| Center distance of circles | Circle from a radius, two-point circle, | |
| three-point circle | ||
| Geometric measurement | Line length, Circle from a radius, two-point circle, three-point circle, concentric circles | |
| Geometry area | Polygon, Rectangle | |
| Image capture | Supports 2 million static photos | |
| Video record | Supports 1080p video | |
| Other features | Horizontal/Vertical mirror, monochrome color, | |
| image freeze, image contrast | ||
| Package | Accessory | DC-12V Power adapter |
| Magnification | 17x-110x (Based on the built-in monitor) | |
| 33X - 210X (Based on an external 22” monitor) | ||
| Included Contents |
|
|
