Aven MicroVue Auxiliary Lens 2.0x
Aven MicroVue Auxiliary Lens 2.0x
SKU:SMT 26700-140-L20X
Couldn't load pickup availability

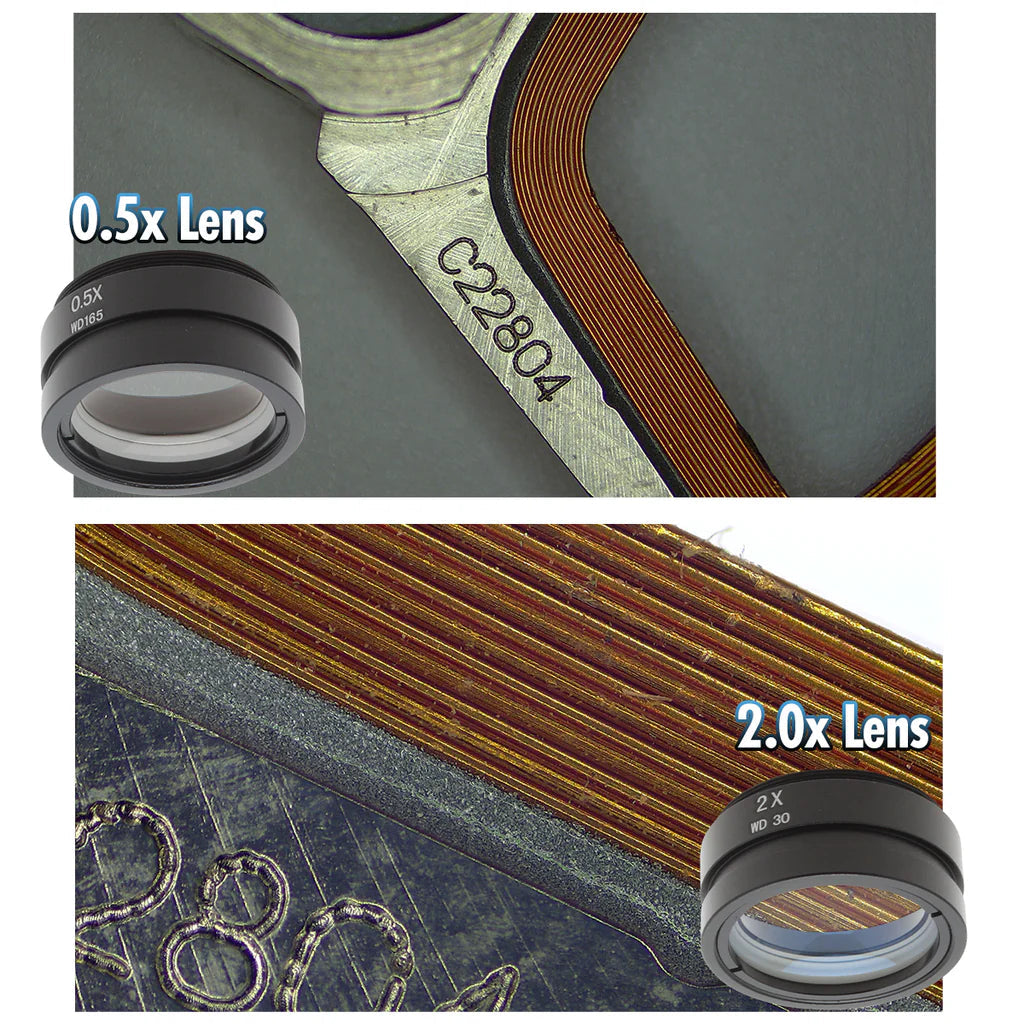

The Aven MicroVue 2.0x Objective Lens is designed to enhance the versatility of the MicroVue Digital Microscope. When in use, the magnification range is 34.4x – 221x on the MicroVue 11.6” monitor. Ideal for examining objects that requires additional magnification.
This lens easily screws to the bottom of the MicroVue Digital Microscope for crystal-clear high resolution inspection.
Specifications:
|
26700-140-L05X MicroVue Objective Lens 2.0x |
|
|---|---|
|
Magnification (11.6" Monitor) |
34.4x-221x |
|
Magnification (21.5" Monitor) |
63.7x-409.6x |
|
Field of View (11.6" monitor) |
9.5*5.5-1.5*0.7 |
|
Field of View (21.5" monitor) |
9.5*5.5-1.5*0.7 |
|
Material |
Metal ring with a glass lens |
|
Dimensions |
1.75" x 1.75" x .75" |
|
Weight |
0.2 lb |
Optical Data:
|
Monitor Size |
Standard MicroVue Lens |
MicroVue 2x Lens |
||
|---|---|---|---|---|
|
Working Distance 100mm |
Working Distance 30mm |
|||
|
Mag. |
F.O.V.(mm) |
Mag. |
F.O.V.(mm) |
|
|
11.6'' |
17.2x-110.5x |
18.5*10.5-2.8*1.5 |
34.4x-221x |
9.5*5.5-1.5*0.7 |
|
21.5'' |
31.9x-204.8x |
18.5*10.5-2.8*1.5 |
63.7x-409.6x |
9.5*5.5-1.5*0.7 |
