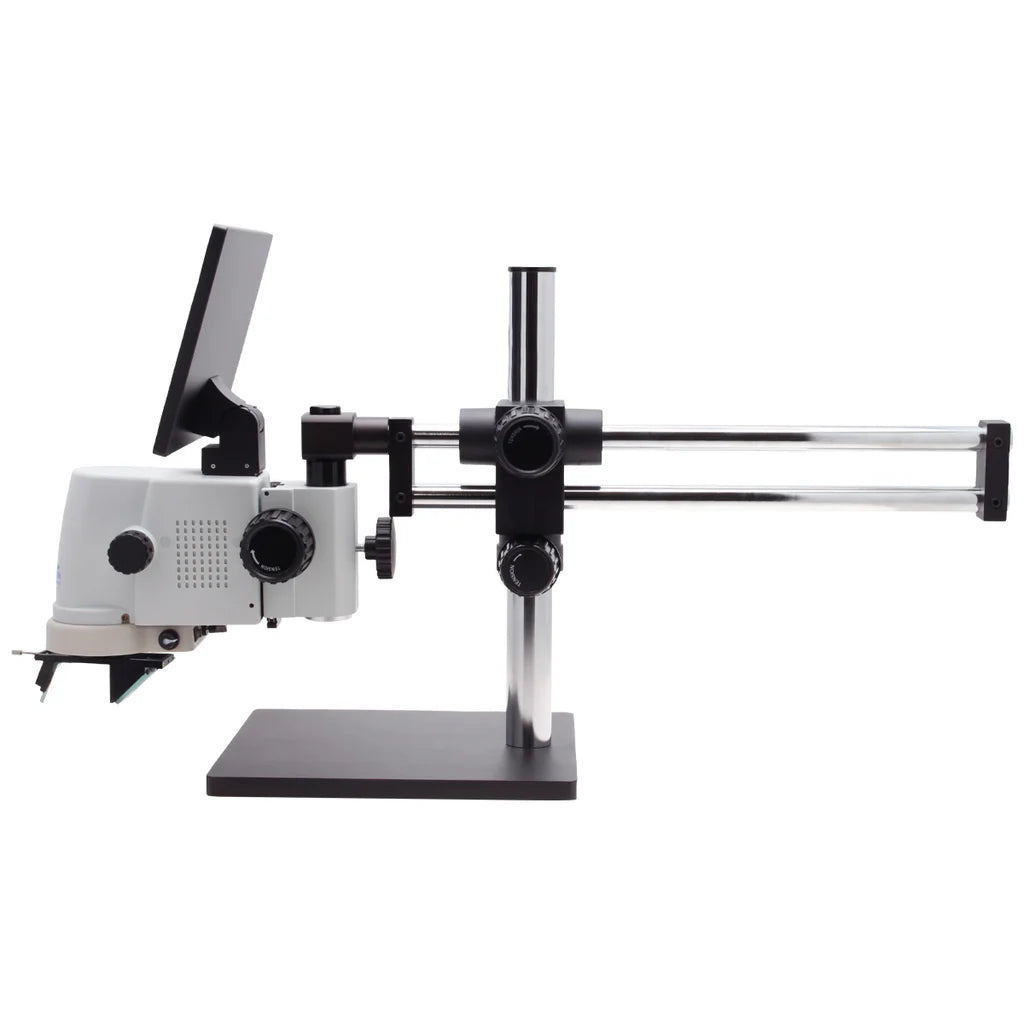

Aven Digital Microscope with Boom Stand and 360 Viewer

Aven Digital Microscope with Boom Stand and 360 Viewer

SMT 26700-140-5343D

$2,868.41
$3,019.38 $2,868.41
Sale Sold out
Shipping calculated at checkout.

Aven's MicroVue™ Digital Microscope with Boom Stand and 360 Viewer is an all-in-one inspection system. The MicroVue™ offers a magnification range of 17x - 110x on it's built- in 11.6" monitor and 8.6x to 221x with optional lenses.

Features:

  • Built-in 11.6" monitor for ergonomic viewing
  • 17x - 110x magnification (on the built-in monitor) without optional lenses
  • 8.6x To 221x Magnification Range With Optional Lenses
  • HDMI output for external monitor viewing
  • Built-in measurement capabilities
  • Save image/video files to USB storage device
  • USB included
  • 360 Viewer Attachment rotates to give a 35 degree angle view
  • DABS Stand included

Product Brochure



Specification Model 26700-140
Series Industrial HDMI Camera w/ Measurement
Sensor size 1/3”
Effective pixels Full HD
Frame rate 1920*1080P@ 60FPS
Output HDMI, USB Mouse, USB Storage
Pixel size 3.75 x 3.75μm
Power DC-12V/2A
Features Mark function Point coordinates, Reticle
Coordinates, Text annotation
Length measurement Straight length, broken line length, curve line length, distance between parallel lines, point-line distance
Center distance of circles Circle from a radius, two-point circle,
three-point circle
Geometric measurement Line length, Circle from a radius, two-point circle, three-point circle, concentric circles
Geometry area Polygon, Rectangle
Image capture Supports 2 million static photos
Video record Supports 1080p video
Other features Horizontal/Vertical mirror, monochrome color,
image freeze, image contrast
Package Accessory DC-12V Power adapter
Magnification 17x-110x (Based on the built-in monitor)
33X - 210X (Based on an external 22” monitor)
Included Contents
  • MicroVue Digital Microscope
  • Double Arm Boom Stand
  • DC-12V Power Adapter
  • Wireless USB Mouse (requires 2 AAA batteries, not included)
  • USB Flash Drive
  • Tools for assembly
  • Assembly guide
  • 360 Viewer Attachment
  • User Manual



360 Viewer for MicroVue Digital Microscope
Compatible With MicroVue Digital Microscope Item #26700-140
On Position 35° Viewing Angle | Reduced Magnification | Increased Field of View
Off Position No Angle Change | No Magnification Change | No Field if View Change
Length 5.5 inch
Width 2 inch
Height 1.5 inch
Weight 0.55 lb
Box Dimensions 6.5 x 5.5 x 2.75 inch



Double Arm Boom Stand w/Heavy Metal Base
Base Size 285mm x 260mm x 18mm
Base Weight 17.35 kg (38lbs)
Base Size 285mm x 260mm x 18mm (11.22 x 10.23 x 0.70")
Vertical Post Length 380mm (15")
Vertical Extension Post 6" (154mm)
Vertical Post Diameter 37.2mm
Horizontal Arm Length 384mm
Horizontal Arm Diameter 20mm
Focus Mount Hole Diameter 15.875mm (5/8";)
Mounts Accepted SCW-PA focus mount with tiltable arbor 26800B-521 or E-Arm
Accepted Bodies SSZ, SPZ, DSZ and NSW series
Package Contents One boom stand with metal base Users manual
