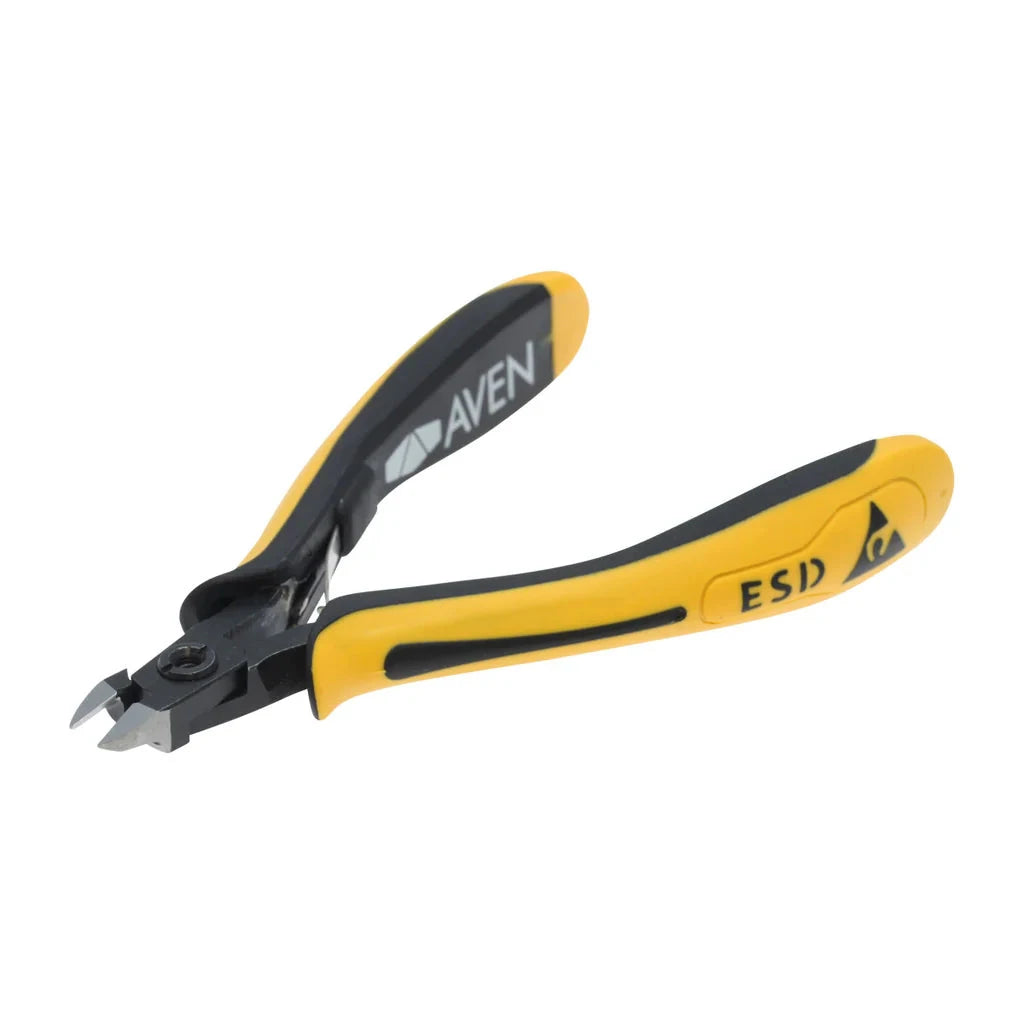

Aven 10828S Accu-Cut Mini Tapered Relief Head Cutter, Semi-Flush

Aven 10828S Accu-Cut Mini Tapered Relief Head Cutter, Semi-Flush

SMT 10828S

$28.27
$28.27
Sale Sold out
Shipping calculated at checkout.

Precision Cutting with Tapered Relief Head and Semi-Flush Blades

The Aven 10828S Accu-Cut Mini Tapered Relief Cutter is engineered for high-precision applications where access to confined spaces is essential. Featuring a tapered relief head and semi-flush cutting edges, this tool allows for precise trimming in densely packed circuit boards and fine assemblies. Constructed from forged steel and hardened to 63–65 HRC, the cutting blades offer exceptional durability and edge retention. The ESD-safe, ergonomic grips protect delicate components while providing operator comfort during extended use.

Features:

  • ✅ Semi-Flush Cutting Edges – Provide clean, accurate cuts ideal for fine wire without causing deformation

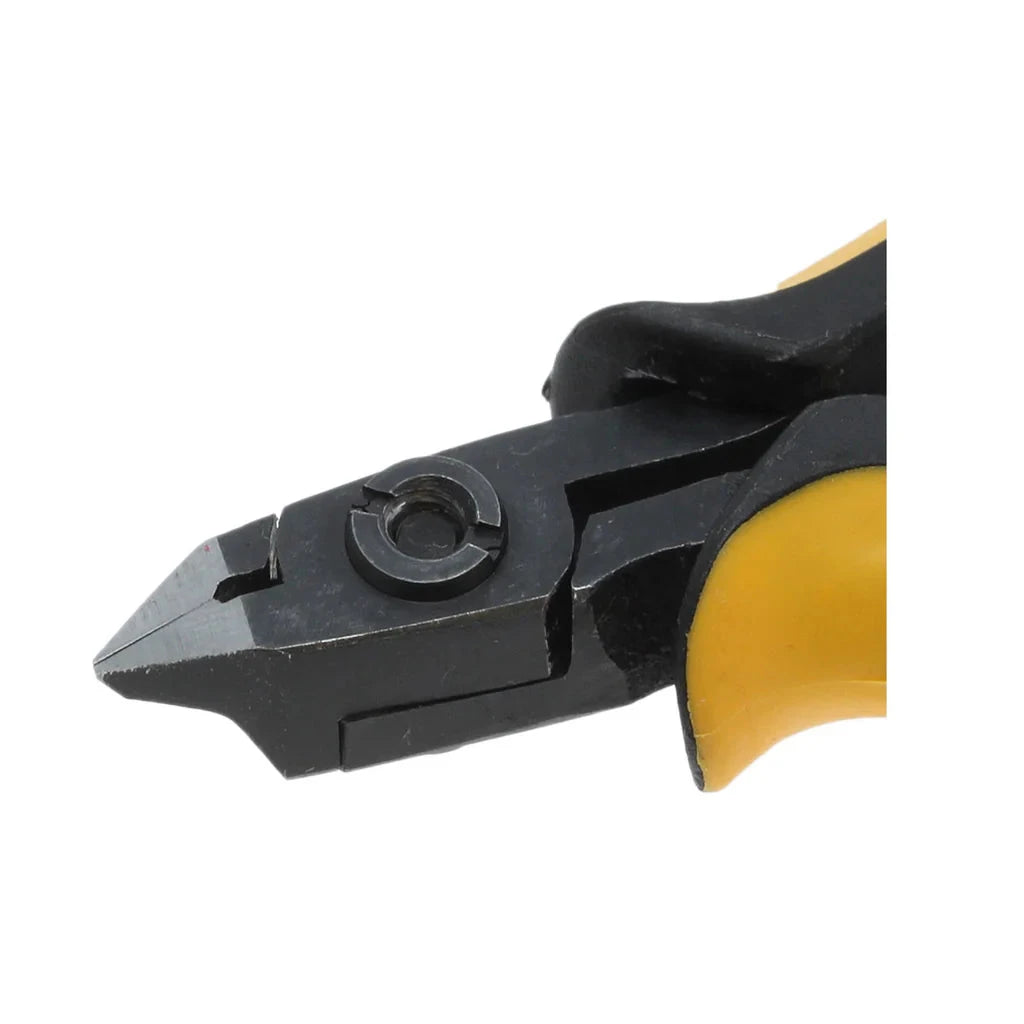

  • ✅ Mini Tapered Relief Head Design – Perfect for precision cutting in tight, recessed areas and under magnification
  • ✅ Forged Steel Construction – Induction-hardened blades ensure long-term cutting performance
  • ✅ ESD-Safe Ergonomic Grips – Anti-static, soft plastic handles safeguard sensitive electronics
  • ✅ Dual Leaf Springs – Deliver smooth, low-resistance cutting action with reduced hand fatigue
  • ✅ Precision Screw Joint – Maintains exact blade alignment for consistent, high-accuracy cuts

Specifications:

  • Model: 10828S
  • Cutting Capacity: 0.2 mm – 1.15 mm (32–17 AWG) soft copper wire
  • Blade Hardness: 63–65 HRC
  • Blade Length: 7.6 mm (±1 mm)
  • Head Width: 8.5 mm (±1 mm)
  • Overall Length: 5.12 inches (130 mm)
  • Weight: 0.25 lb
  • Handle Material: ESD Safe Soft Plastic (Yellow and Black)
  • ESD Resistance: 10¹⁰ Ω per square inch

Applications:

  • PCB trimming in high-density electronics
  • Precision wire cutting under a microscope
  • Assembly and repair of compact electronics
  • Medical device and optics fabrication
  • Military and aerospace electronics assembly

Choose the Aven Accu-Cut Mini Tapered Relief Cutter, Semi-Flush (P/N 10828S) for reliable performance, fine access, and ESD protection in detailed technical work.
