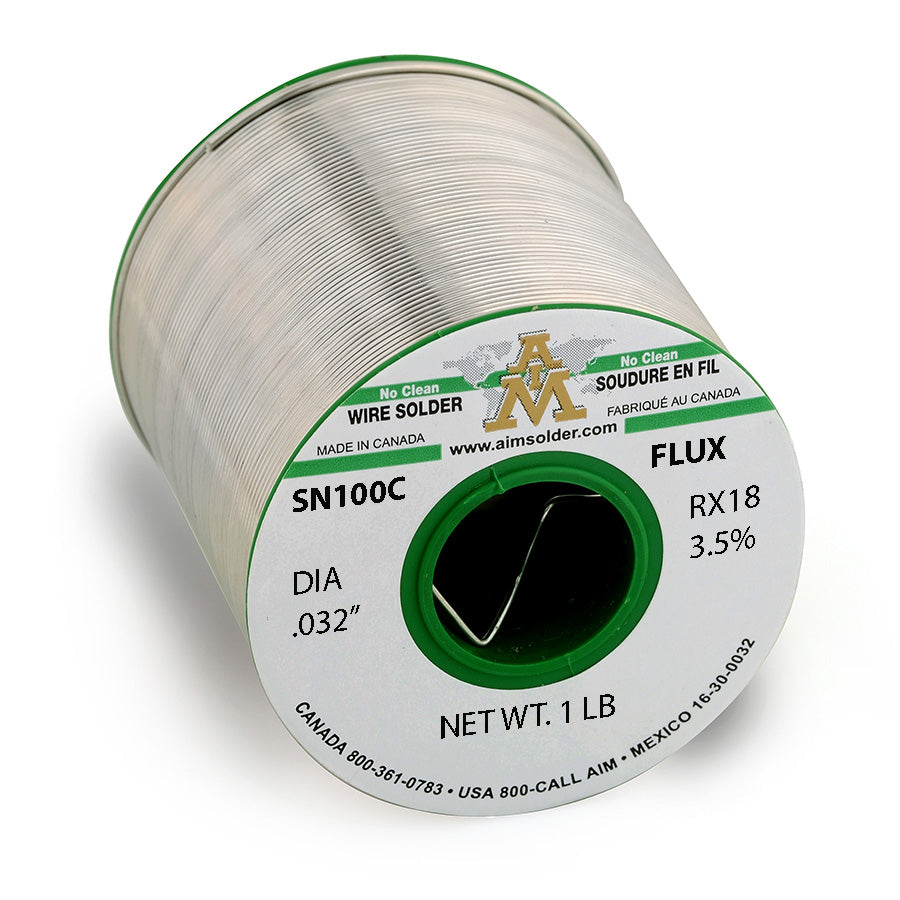

AIM SN100C RX18 3.5% Lead Free No-Clean Wire Solder .032" Diameter

AIM SN100C RX18 3.5% Lead Free No-Clean Wire Solder – 0.032" Diameter

Premium Lead-Free No-Clean Solder for Automated and Manual Electronics Assembly

The AIM SN100C RX18 3.5% Lead Free No-Clean Wire Solder combines the proven reliability of SN100C alloy with the advanced RX18 flux core for superior performance in both automated and manual soldering applications. Designed for precision and efficiency, this 0.032" diameter wire ensures fast wetting, minimal spatter, and low void formation, producing strong, reliable solder joints every time.

Product Overview

The RX18 flux-cored SN100C solder is formulated to optimize thermal transfer and solder penetration on both surface mount and through-hole components. Its advanced no-clean flux leaves minimal, clear residues that meet IPC J-STD-004 ROL0 standards, making it suitable for high-reliability applications in automotive, military, and consumer electronics.

Key Features & Benefits

• Fast Wetting and Feed Rates – Ideal for robotic and automated soldering systems.
• Low Voids and Low Spatter – Ensures clean, strong solder joints with minimal rework.
• Extends Solder Tip Life – Reduces wear and maintenance for prolonged production runs.
• ROL0 per IPC J-STD-004 – High reliability for industrial and electronics applications.
• Minimal, Clear Residues – Leaves behind nearly invisible flux residues.
• REACH and RoHS Compliant – Lead-free alloy for environmentally responsible assembly.
• Compatible with All Alloys – Works with various board finishes and components.

Applications

• Automated and Robotic Soldering
• Surface Mount Device (SMD) Assembly
• Plated Through-Hole Electronics
• Consumer Electronics
• Automotive and Military Electronics

Cleaning Instructions

RX18 is a no-clean flux solder wire. Residues can be removed with commercially available flux removers if needed. IPA is not recommended. For detailed cleaning guidance, contact AIM Solder.

Technical Specifications

• Alloy: SN100C (Sn99.3/Cu0.7 + Ni + Ge)
• Flux Type: RX18 3.5% No-Clean Core, ROL0 per IPC J-STD-004
• Wire Diameter: 0.032" (0.81 mm)
• Compliance: RoHS & REACH Compliant
• Residue: Minimal, clear, and non-corrosive

Why Choose AIM SN100C RX18?

The combination of SN100C alloy with RX18 flux ensures consistent soldering performance, excellent wetting, and high reliability. It is ideal for both high-volume production and precision hand-soldering applications, providing strong, long-lasting connections across a wide range of electronic assemblies.

Optimize your soldering process with AIM SN100C RX18 3.5% Lead Free No-Clean Wire Solder — the professional choice for precision, reliability, and efficiency in every joint.

Unit: 1 lb. spool

Technical Data Sheet
SN100C Technical Data Sheet
Safety Data Sheet
