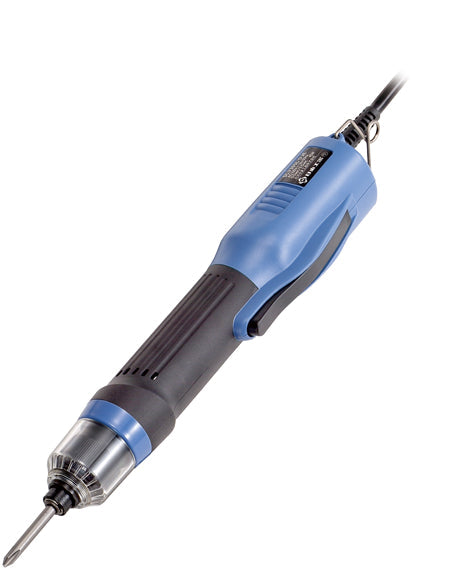

Delvo DLV30LP-SPC(LKU) Brushless Torque Driver for Screw Counter, 1/4" Hex, Push to Start, Low Speed

Delvo DLV30LP-SPC(LKU) Brushless Torque Driver for Screw Counter, 1/4" Hex, Push to Start, Low Speed

SMT DLV30LP-SPC

$695.00
$695.00
Sale Sold out
Shipping calculated at checkout.

Delvo brushless motor powered electric screwdrivers for screw fastening counters

Features

  • Brushless motor and newly designed clutch provide a more consistent torque output over the life of the tool
  • Any of the three models can be operated by a standard controller, allowing a wide range of torque from 3.5 - 39.8 Lb-in and max speeds of 650, 1,200, and 2,000 rpm
  • Torque ring cover prevents unintentional changes in the preset torque amount (clear cover on DLV30 series)
  • Grounded bit system standard


Torque Diagram

Screw Fastening Counters (Required / Sold Seperately)

Part Number DLR5040A-WU
Count 1 - 99
Counting Method Count-up / Count-down
Count Correction Function Count normal fastening only
Self Adjustable Timer Setting 0.01 to 0.99 sec.
Work Detection Function Yes (1 terminal) / No
External Count Input 2 terminals (PARTS A / PARTS B)
Work Installation Timer Setting 0 to 9.5 sec.
OK Output Timer Setting 0 to 9.5 sec.
NG Alarm ON(1) / ON(2) / OFF
OK Buzzer ON(1) / ON(2) / ON(3) / OFF
Count Return Function ON / OFF
NG Judge Timing WORK SET / DRIVER ON
Automatic / Manual OK Judge AUTO / MANUAL
Screwdriver Lock Function ON / OFF
Multiple Link Up to 10 counters can be connected.
External Inputs on Terminal Block SENSOR / RESET / LINK-IN / PARTS A / PARTS B
External Outputs on Terminal Block OK / NG / LINK-OUT
Parameter Memory Parameters stored in internal nonvolatile memory
Input Voltage 100 - 240 V AC, 50/60 Hz See the bottom asterisk.*1
Size W × L × H in(mm) 3.98” × 5.12” × 2.36” (101 × 130 × 60)
Weight lbs(kg) 1.21 (0.55)

*1 : The voltage of the dedicated screwdrivers for DLR5040A-WU and DLR5340-WU is 115 V. When you need different voltage screwdrivers, please contact Nitto Kohki U.S.A.

Part Number DLR5340-WU
Count 0 - 99
Counting Method Count-up / Count-down
Count Correction Function Count normal fastening only
Self Adjustable Timer Setting 0.01 to 2.50 sec.
Work Detection Function Yes (1 terminal) / No
Work Installation Timer Setting 0 to 9.5 sec.
OK Output Timer Setting 0 to 9.5 sec.
NG Alarm ON(1) / ON(2) / OFF
OK Buzzer ON(1) / ON(2) / ON(3) / ON(4) / ON(5) / OFF
Count Return Function ON / OFF
Screwdriver Lock Function ON / OFF
Screwdriver Cord Connection Single cord connection (Signal and power lines)
External Inputs on Terminal Block SENSOR / RESET / TORQUE CHECK ch1/2/3
External Outputs on Terminal Block OK, NG, COUNT-UP, DRIVER A/B/C
Input Voltage 100 - 240 V AC, 50/60 Hz See the bottom asterisk.*1
Size W × L × H in(mm) 5.94” × 5.51” × 2.36” (151 × 140 × 60)
Weight lbs(kg) 1.76 (0.8)

*1 : The voltage of the dedicated screwdrivers for DLR5040A-WU and DLR5340-WU is 115 V. When you need different voltage screwdrivers, please contact Nitto Kohki U.S.A.

Standard Accessories

For DLV30
  • Bit No.2 × 7 × 75: 1 pc.
  • Suspension Bail 1 pc.
  • Low Torque Spring: 1 pc.
