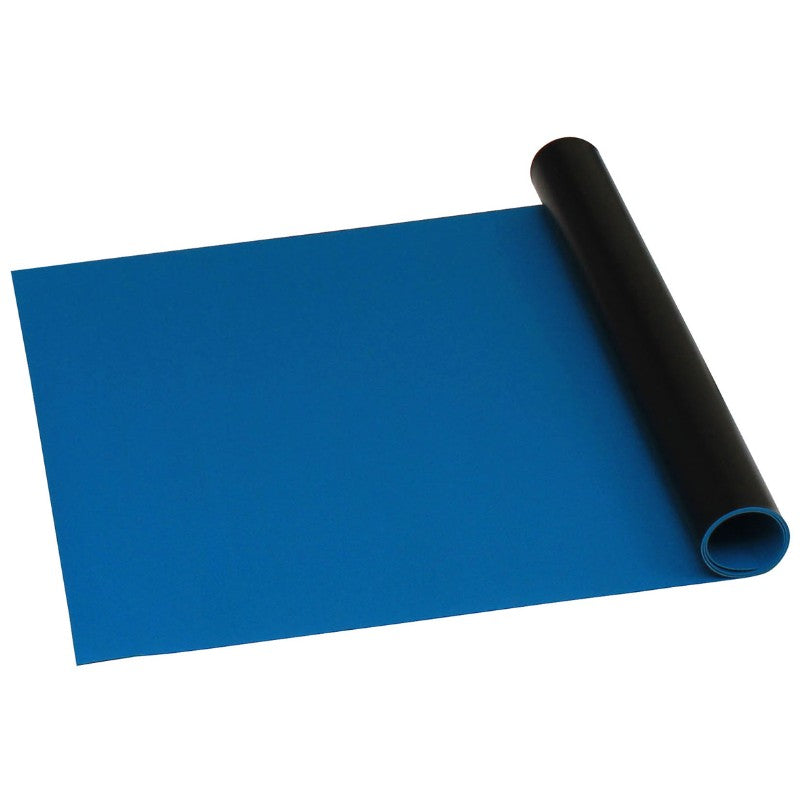

ESD Worksurface Mat Roll, Statfree B2 Plus Vinyl, Dark Blue, 0.060'' x 24'' x 50'

The Desco Statfree® B2 Plus Vinyl Mat Roll provides a reliable ESD-safe work surface for protecting sensitive electronics during assembly, testing, and repair. Made from durable vinyl material, this mat roll features a static-dissipative top layer and a conductive backing to ensure consistent grounding performance. Its dark blue color offers a professional appearance while helping mask dust and debris, making it well-suited for production lines, repair benches, and cleanroom environments

• Dissipative Dual Layer ESD Worksurface
  Provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface¹.
• NEW Reinforced Vinyl Compound
  Improved material compound is more durable, dimensionally stable, and suitable for most electronic assembly applications.
• Dissipative (1 x 10⁶to <1 x 10⁹ ohms Rtt) Top Layer
  Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items.
• Conductive (<1 x 10⁶Rtt) Bottom Layer
  Reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the material to be used with ESD workstation monitors.
• Lot coded for Control & Auditing Purposes
• Lead-free RoHS compliant
• Made in the United States of America

1. Worksurfaces mats must be properly grounded to remove ESD charges.
2. Additional lot coding information is marked on the bottom (black conductive) side of the material.

Technical Information
